Voltage Range 220-240V AC
Max Wattage 50 W
IP Rating IP20
Dimensions 96.7 mm x 30.4 mm x 39.4 mm

1 / 4

Voltage Range
220-240V AC
Max Wattage
50 W
IP Rating
IP20
Dimensions
96.7 mm x 30.4 mm x 39.4 mm
Width
30.4 mm
Height
96.7 mm
Fitting Material
PC
Dimmable
Yes

Colour : White

In Stock, delivery in 24/48h
In Stock, delivery in 24/48h

Wifi

Before £21.89

-16% (You save £3.40)

£18.49

VAT included

In Stock, delivery in 24/48h

Are you a lighting professional or a company?

Great discounts off PVP
Extended Warranty
Exclusive Services

See alternatives

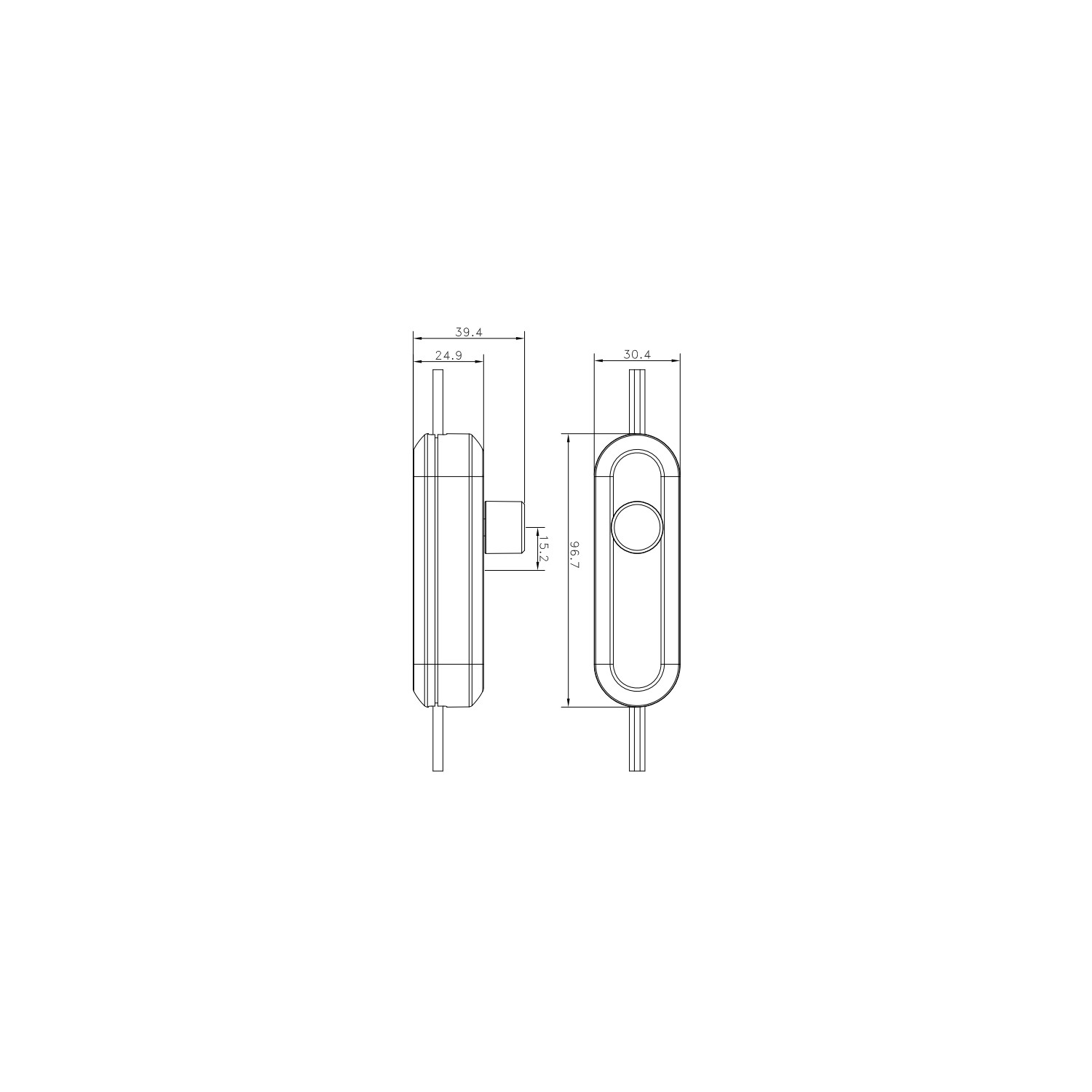

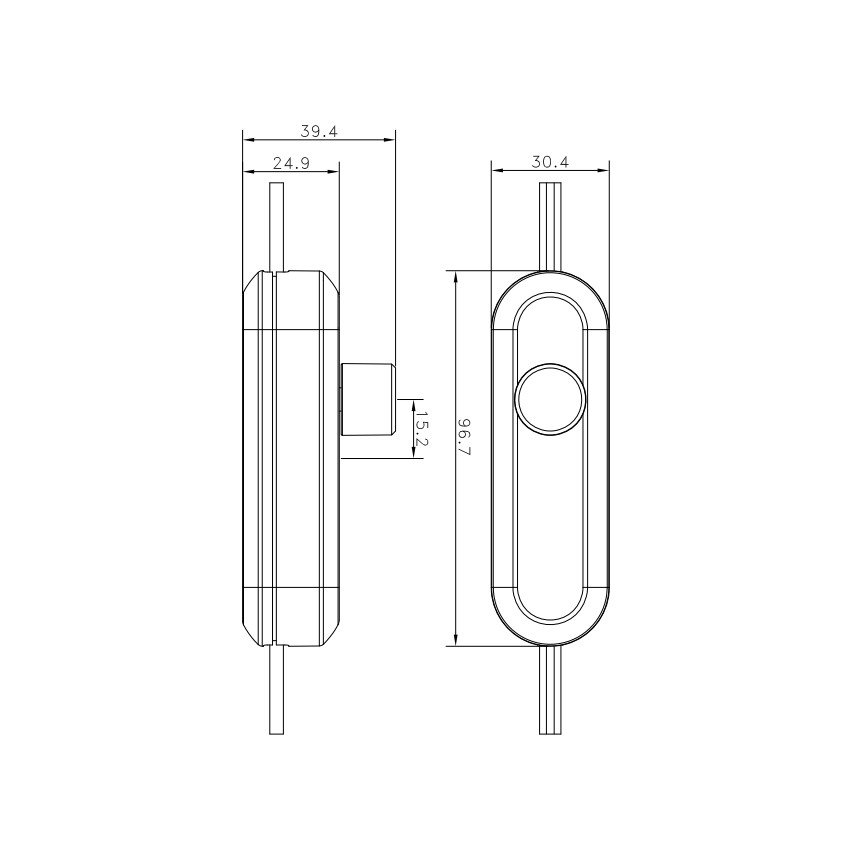

Dimensions

Height96.7 mm
Depth39.4 mm
Dimensions96.7 mm x 30.4 mm x 39.4 mm
Width30.4 mm

Downloads

Technical Data Sheet PDF
IM_152544_ENG

Certificates and Stamps

Technical Specifications

Technical Information
- Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
  Ambient Working Temperature-20 °C~+50 °C
- Quality, safety and compliance certifications that the product has obtained, such as CE, RoHS or UL, which guarantees that it meets industry standards and current regulations.
  CertificatesRoHS, CE, UKCA
- Specification of the color of the product or its light (in the case of products such as lamps or light bulbs), which may affect the aesthetics and functionality of its use.
  ColourWhite
- It indicates that the product allows parameters such as light intensity, speed or color temperature to be adjusted, providing greater flexibility and customization.
  DimmableYes
- Composition of the product or its components, such as aluminum, steel, plastic or glass. The material influences the durability, design and thermal properties of the product.
  Fitting MaterialPC
- Range of cycles per second at which the product operates, measured in hertz (Hz). A standard value ensures compatibility with local electrical networks.
  Frequency50-60 Hz
- Level of protection against the entry of solids and liquids, according to international regulations. The two numbers indicate protection against dust (first number) and against water (second number).
  IP RatingIP20
- Specification that describes the purpose or application of the product, such as lighting, air conditioning, or security, among others.
  LocationIndoor
- The maximum amount of power that the product can safely consume, indicated in watts. It is important to ensure proper installation and avoid overloading.
  Max Wattage50 W
- Voltage level necessary for the product to function correctly. Ensures its compatibility with the electrical network or with specific power systems.
  Voltage Range220-240V AC
Product Data
- Period during which the customer has the right to have their product repaired or replaced in the event of manufacturing defects or malfunctions under normal conditions of use. For more information, consult our After-sales page.
  Warranty3 years

Description

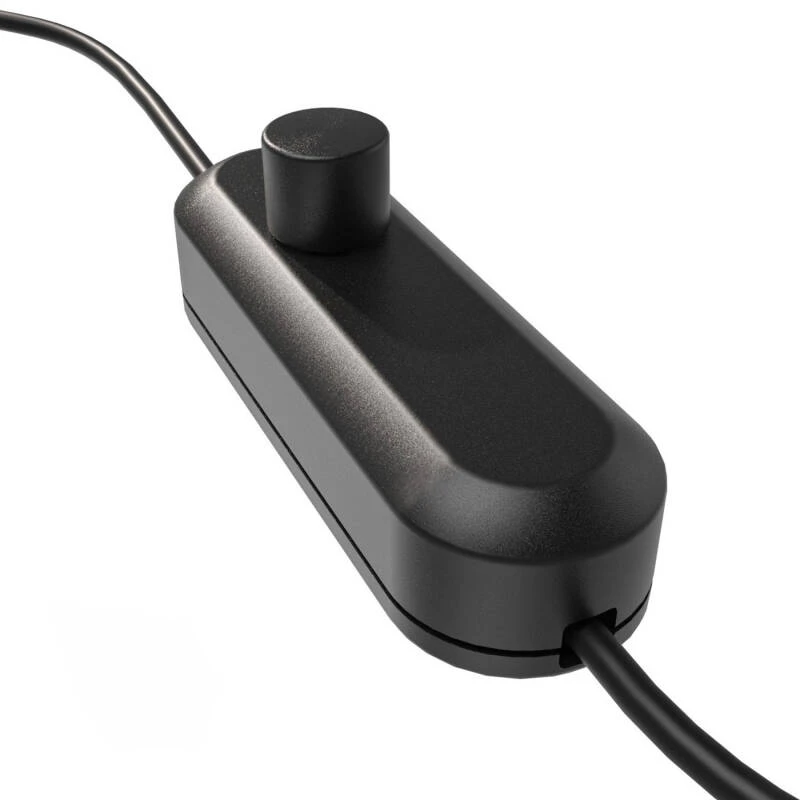

The WiFi Dimmer Switch for Table/Floor Lamps is the ideal solution for replacing the dimmers of table or floor lamps in your home with a touch of design. Specially designed for dimmable LEDs, incandescent lamps and halogen lamps. Available in two colours, they are highly resistant and durable. It works both manually and via WiFi through the TUYA app.

Characteristics of the Smart WiFi TRIAC Dimmer Switch for Table/Floor Lamps

The WiFi Switch Dimmer for Table/Floor Lamps allows you to control the intensity of all those products with LED technology up to 50W that accept dimming from 0 to 100% and incandescent and halogen technology products up to 100W.

With this LED Dimmer we have the possibility of creating different atmospheres in the same room adapting the luminosity according to the needs, all this with a single turn of the controller. They have the standard size, so they can be a replacement for any classic table or floor lamp switch.

Designed to be connected to both flat and round cables. Its operation is very simple, pressing the button you can turn on and off the luminaire connected to this and turning this regulates the light intensity of this. It does not generate noise or cause flickering problems.

Operation of the Smart WiFi TRIAC Dimmer Switch for Table/Floor Lamps

The device is controlled by the TUYA application. The APP is available for iOS and Android operating systems. It can be downloaded from the App Store and Google Play respectively.

- Download the Tuya Smart app from the App Store or Google Play Store.
- After installation, press and hold the reset button for more than 5 seconds until the red light starts flashing rapidly (If the indicator light flashes slowly, press the reset button again until the flashing is rapid).
- Open the Tuya application and press the "+" symbol in the top right corner of the screen.
- Choose "lighting" and the "lighting (wifi)" tab and follow the instructions.
- It is necessary to enter a wifi password before pairing is initiated.
- The indicator light will stop flashing when the pairing is successful and the operation screen will be shown on the display.
- You will be able to control your lights remotely.
