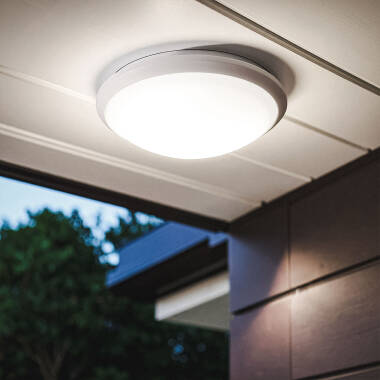

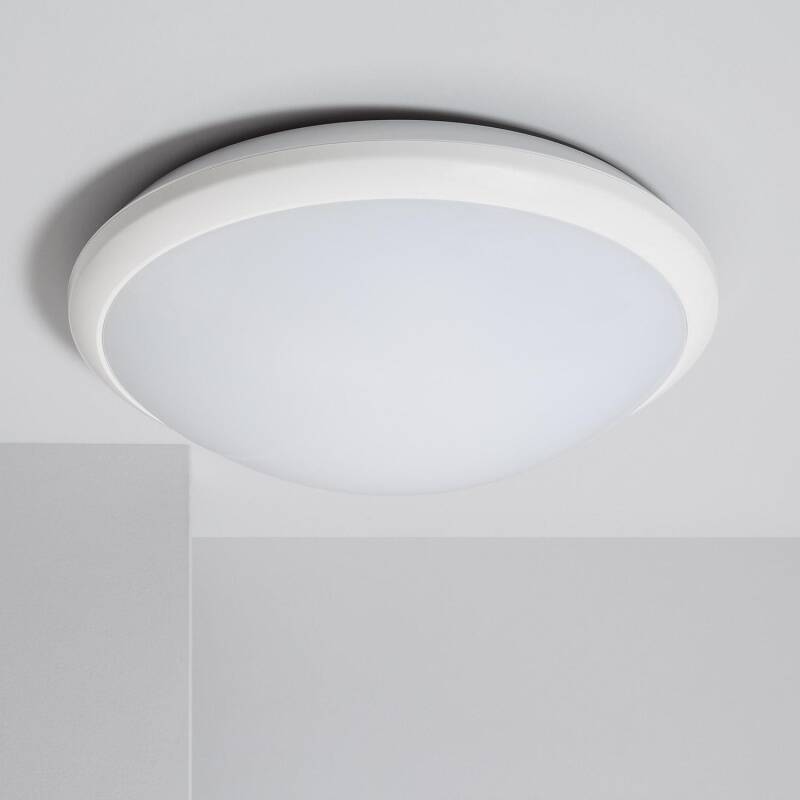

20W LED Surface Panel with a Radar Motion Sensor Ø350 mm

Technical Specifications

• Technical Information

  • Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
    Ambient Working Temperature-20 °C~+50 °C
  • It measures in degrees how light is dispersed from the source. A wide angle covers more area, while a narrow one is ideal for highlighting details.
    Beam Angle120º
  • Quality, safety and compliance certifications that the product has obtained, such as CE, RoHS or UL, which guarantees that it meets industry standards and current regulations.
    CertificatesRoHS, CE, UKCA
  • Specification of the color of the product or its light (in the case of products such as lamps or light bulbs), which may affect the aesthetics and functionality of its use.
    ColourWhite
  • Defines the tone of the light, from warm white to cool white, measured in Kelvin (K). It is key to creating cozy or functional environments according to your needs.
    Colour Temperature4500K
  • Defines the sensitivity area of ​​a sensor in degrees. A larger angle will detect movements over a wider range, useful in security systems or automatic lights.
    Detection Range160 °
  • Component that identifies changes in the environment, such as movement, light or sound, activating an automatic response, ideal for security or intelligent lighting systems.
    DetectorRadar
  • It indicates that the product allows parameters such as light intensity, speed or color temperature to be adjusted, providing greater flexibility and customization.
    DimmableNo
  • Level of electrical protection of the product against shocks. Indicates whether it is suitable for different conditions of use, guaranteeing safety in the installation.
    Electrical Insulation ClassII
  • Composition of the product or its components, such as aluminum, steel, plastic or glass. The material influences the durability, design and thermal properties of the product.
    Fitting MaterialPC
  • Range of cycles per second at which the product operates, measured in hertz (Hz). A standard value ensures compatibility with local electrical networks.
    Frequency50-60 Hz
  • Estimated time during which the product can operate efficiently without significant failure, usually measured in hours of use.
    Hours40.000 hours
  • Degree of protection offered by the product against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to shock and mechanical damage.
    IK ProtectionIK08
  • Information on how the product should be placed or mounted, such as instructions on whether it requires professional installation or is easy to do by the end user.
    InstallationSurface
  • Level of protection against the entry of solids and liquids, according to international regulations. The two numbers indicate protection against dust (first number) and against water (second number).
    IP RatingIP44
  • Characteristic that describes the tone of light emitted by the product, such as warm, neutral or cool. It is measured in degrees Kelvin (K) and affects the atmosphere and the proper use of space.
    Light ColourNeutral White
  • Specification that describes the purpose or application of the product, such as lighting, air conditioning, or security, among others.
    LocationOutdoor, Indoor
  • Total amount of light emitted by the product, measured in lumens (lm). A high value ensures well-lit spaces.
    Lumens1500 lm
  • Total number of light-emitting diodes (LEDs) in the product. The greater the number of LEDs, the generally obtained is greater luminosity or better light distribution.
    Number of LEDs100
  • Voltage level necessary for the product to function correctly. Ensures its compatibility with the electrical network or with specific power systems.
    Voltage Range220-240V AC
  • Indicates how much energy the light source consumes, measured in watts (W). In LED lighting, the power is much lower than in traditional sources, and is related to the light intensity (lumens).
    Wattage20 W

• Product Information

  • Element or component that emits light in the product, such as LEDs, incandescent or fluorescent bulbs. In LED systems, the light source is highly efficient and long-lasting.
    Light SourceOSRAM
  • Indicates that the light source of the product, such as an LED bulb or similar, can be replaced when it runs out or needs replacement without affecting the overall operation of the product.
    Replaceable Light SourceYes
  • Type of lens used in the product, such as diffuse, high transmission or focused lens, which determines the direction and dispersion of light.
    Type Of LensOpaal

• Product Data

  • Period during which the customer has the right to have their product repaired or replaced in the event of manufacturing defects or malfunctions under normal conditions of use. For more information, consult our After-sales page.
    Warranty5 years
