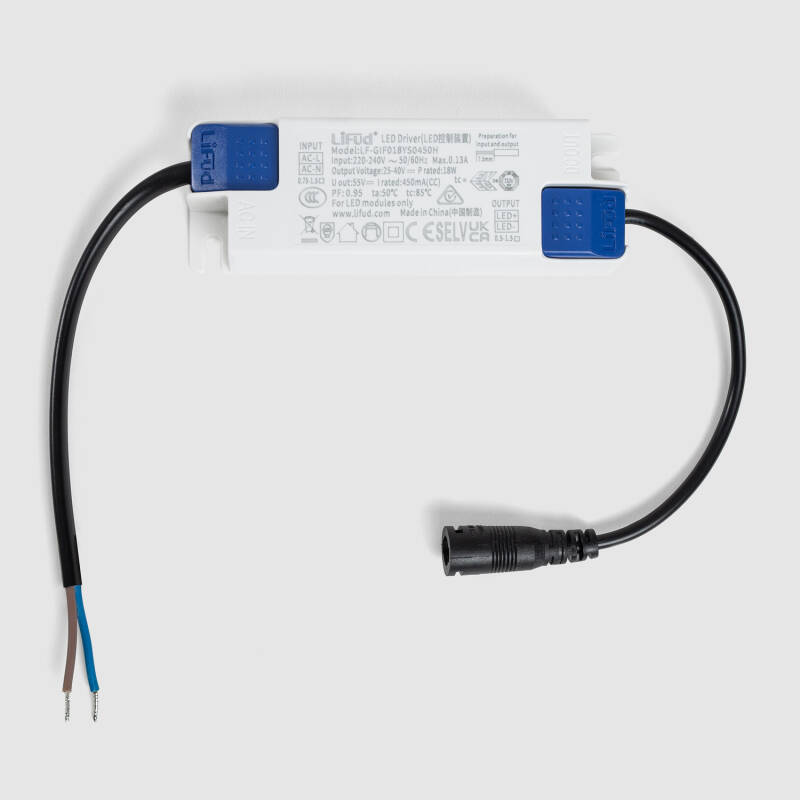

220-240V LIFUD No Flicker Driver 25-40V DC Output 450mA 18W LF-GIF018YS0450H

Download technical datasheet

Ref. Ledkia112541

Wattage : 18 W

£9.99

VAT included

In Stock, delivery in 15-20 days

PRO CLUB badge

Are you a lighting professional or a company?

  • Great discounts off PVP
  • Extended Warranty
  • Exclusive Services

Buy now, pay later

Credit payment
  • 30 Day Returns

    You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.


    Custom-made products and cut-to-size strips are excluded.


    Full conditions here: After-sales service.

  • 24h Free Delivery

    If you place your order today before 2:30 pm, delivery within 24/48h (working days).


    Shipping is free on purchases over £ 49.99 (incl. VAT).


    Full conditions here: Delivery methods.

  • 100% secure payments

    payment method image 1

    payment method image 2

    At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.


    More information: Payment methods.

  • Up to 5 year warranty

    Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


    You will find the exact product warranty in the technical details.


    Full conditions here: After-sales service.

See alternatives

Dimensions

  • Height26.5 mm
  • Depth37 mm
  • Dimensions26.5 mm x 113 mm x 37 mm
  • Width113 mm

Downloads

  • pdf file

    Technical Data Sheet PDF

Certificates and Stamps

CertificateCertificate

Technical Specifications

  • Technical Information

    • Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
      Ambient Working Temperature-20 °C~+50 °C
    • Quality, safety and compliance certifications that the product has obtained, such as CE, RoHS or UL, which guarantees that it meets industry standards and current regulations.
      CertificatesCE, CB, CCC, ENEC, RCM, UKCA
    • Level of electrical current that the driver is capable of handling to power components, such as LEDs, ensuring safe and efficient operation.
      Driver Intensity450 mA
    • Ability of the driver to supply power to the system, measured in watts (W). Determines the compatibility and performance of the product with connected components.
      Driver Power18 W
    • Voltage level that the driver uses to power the LEDs or electrical components of the product, guaranteeing their correct operation.
      Driver Tension25 V-40 V
    • Level of electrical protection of the product against shocks. Indicates whether it is suitable for different conditions of use, guaranteeing safety in the installation.
      Electrical Insulation ClassII
    • Composition of the product or its components, such as aluminum, steel, plastic or glass. The material influences the durability, design and thermal properties of the product.
      Fitting MaterialPC
    • Range of cycles per second at which the product operates, measured in hertz (Hz). A standard value ensures compatibility with local electrical networks.
      Frequency50-60 Hz
    • Level of protection against the entry of solids and liquids, according to international regulations. The two numbers indicate protection against dust (first number) and against water (second number).
      IP RatingIP20
    • Specification that describes the purpose or application of the product, such as lighting, air conditioning, or security, among others.
      LocationIndoor
    • Indicates the electrical efficiency of the product by measuring the relationship between the useful power and that consumed. A value close to 1 represents more efficient consumption.
      Power Factor0.96
    • Voltage level necessary for the product to function correctly. Ensures its compatibility with the electrical network or with specific power systems.
      Voltage Range220-240V AC
    • Indicates how much energy the light source consumes, measured in watts (W). In LED lighting, the power is much lower than in traditional sources, and is related to the light intensity (lumens).
      Wattage18 W
    • Internal temperature range in which the product can operate efficiently and safely. It is important to ensure its reliability in different conditions of use.
      Working Temperature-20 °C~+45 °C
  • Product Data

    • Period during which the customer has the right to have their product repaired or replaced in the event of manufacturing defects or malfunctions under normal conditions of use. For more information, consult our After-sales page.
      Warranty3 years
Illuminate your outdoor spaces

Description

The 220-240V LIFUD No Flicker Driver 25-40V DC Output 450mA 18W LF-GIF018YS0450H is a high-quality electronic component designed for a variety of applications such as LED panels, downlights, boards, and ceilings. This driver provides efficient conversion of alternating current from the mains into optimal direct current for LED chips, ensuring efficient and safe operation. It is crucial to review the output voltage and current specifications of the driver to ensure compatibility with the specific LED luminaire or panel.

This driver stands out for its ability to deliver a constant voltage output in a range of 25-40V, suitable for multiple uses in different types of LED luminaires, always maintaining consistent performance. This driver ensures stable flicker-free lighting (No Flicker) and a high power factor, resulting in improved energy efficiency. Its advanced technology guarantees uniform and quality light, thus contributing to visual comfort and long-term energy cost reduction.

Furthermore, the 220-240V LIFUD No Flicker Driver 25-40V DC Output 450mA 18W LF-GIF018YS0450H offers a fixed output current of 450mA, providing the necessary stability for a variety of lighting applications. When connecting the driver, the output voltage is automatically regulated to maintain constant light, crucial for the lifespan and effectiveness of LEDs. With remarkable efficiency and optimised energy consumption, this driver is the perfect choice for lighting projects that require a long-lasting professional solution.
