30W Fasano DALI Dimmable LED Spotlight for 3-Circuit Track in Black

Download technical datasheet

Ref. Ledkia103511

Colour Temperature :

Warm White 3200K

Before £96.99

-26% (You save £25.00 )

£71.99

20% VAT included
Energetic efficiency

In Stock, delivery in 24/48h

PRO CLUB badge

Are you a lighting professional or a company?

  • Great discounts on RRP
  • Extended warranty
  • Exclusive services

Buy now, pay later

Credit payment
  • 30 Day Return

    You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.


    Custom-made products and cut-to-size strips are excluded.


    Full conditions here: After-sales service.

  • 24h Free Delivery

    If you place your order today before 16:30h, delivery within 24/48h (working days).


    Shipping is free on purchases over £ 49.99 (incl. VAT).


    Full conditions here: Delivery methods.

  • 100% secure payments

    payment method image 1

    payment method image 2

    At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.


    More information: Payment methods.

  • Up to 5 year warranty

    Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


    You will find the exact product warranty in the technical details.


    Full conditions here: After-sales service.

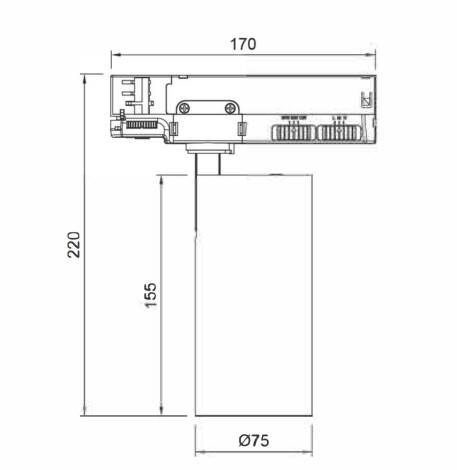

Dimensions

  • Height220 mm
  • Diameter75 mm
  • dimensions220 mm x Ø75 mm
  • Length170 mm

Downloads

  • pdf file

    Technical Data Sheet PDF

Certificates and Stamps

CertificateCertificate

Energy Efficiency

Efficiency energeticRegulation 2023

Technical Specifications

  • Light colourWarm White
  • Colour Temperature3200K
  • Energy efficiency 2023 (EU-2019/2015)E
  • Replaceable light sourceYes
  • Available ComponentsYes
  • Replaceable driverYes
  • Power30 W
  • Tension220-240V AC
  • Frequency50-60 Hz
  • DimmableYes
  • Type of trackDALI Track
  • Chromatic Reproduction Index90
  • Luminosity3055 lm
  • Luminous Efficiency100 lm/W
  • directionalYes
  • UseIndoor
  • IP protectionIP20
  • Glare FactorUGR 17
  • No FlickerNo Flicker
  • MaterialAluminium
  • InstallationTrack
  • dimensions220 mm x Ø75 mm
  • Height220 mm
  • Length170 mm
  • Diameter75 mm
  • Ambient Working Temperature-20 °C~+50 °C
  • Lifespan50.000 hours
  • CertificatesRoHS, CE
  • Warranty3 years
  • Type of dimmingDALI
  • Selectable Opening Angle36º

Description

The 30W Fasano No Flicker DALI Dimmable LED Spotlight for Three Circuit Track is the perfect solution to highlight a specific element in the space with bright, high-quality light, without sacrificing energy savings.

Characteristics of the 30W Fasano No Flicker DALI Dimmable LED Spotlight for Three Circuit Track in Black

It integrates a very efficient light source that allows a DALI regulation of the luminous flux. It provides a luminosity distributed at an angle of 36º, which provides a compact beam of high quality light that reproduces colours without distorting them, perfect to complement the general lighting of the space.

Designed for indoor spaces, it is made of quality materials such as aluminum and can withstand temperature variations between -25ºC and 45ºC. Its installation is very simple, thanks to the quality of the components it integrates, it will satisfy the needs of the most demanding users. The installation is carried out on a three-phase rail that we will have previously placed. It presents a modern finish in black and white colours.

The Fasano LED Track Spotlight is fully adjustable, which allows the light from the spotlight to be directed in any direction. This makes it possible to modify the lighting of the space depending on the elements that compose it. This is why this type of LED lighting is specially designed to draw attention to specific elements or areas.

This spotlight is dimmable with the DALI (Digital Addressable Lighting Interface) protocol, it is a common interface that allows us to regulate light intensity, schedule on and off, automate and generate timers. A DALI network is made up of a DALI controller and one or more DALI Drivers. The DALI protocol allows grouping in up to 16 groups and includes 64 IP addresses. It is useful to save energy, adapt to different scenarios.

Applications of the 30W Fasano No Flicker DALI Dimmable LED Spotlight for Three Circuit Track in Black

Its applications are mainly in spaces such as showrooms, premises with different environments, lounges, shopping centres, clothing stores, furniture stores and, in general, commercial spaces that are always being readapted depending on the products to be displayed. Even so, thanks to its elegant design it can see use in the design of highly attractive interior environments, and even in the home.
