Diameter 51 mm
Battery operated Yes
dimensions 270 mm x Ø51 mm
Width 70 mm
Diameter
51 mm
Battery operated
Yes
dimensions
270 mm x Ø51 mm
Width
70 mm
Height
270 mm
Material
PC

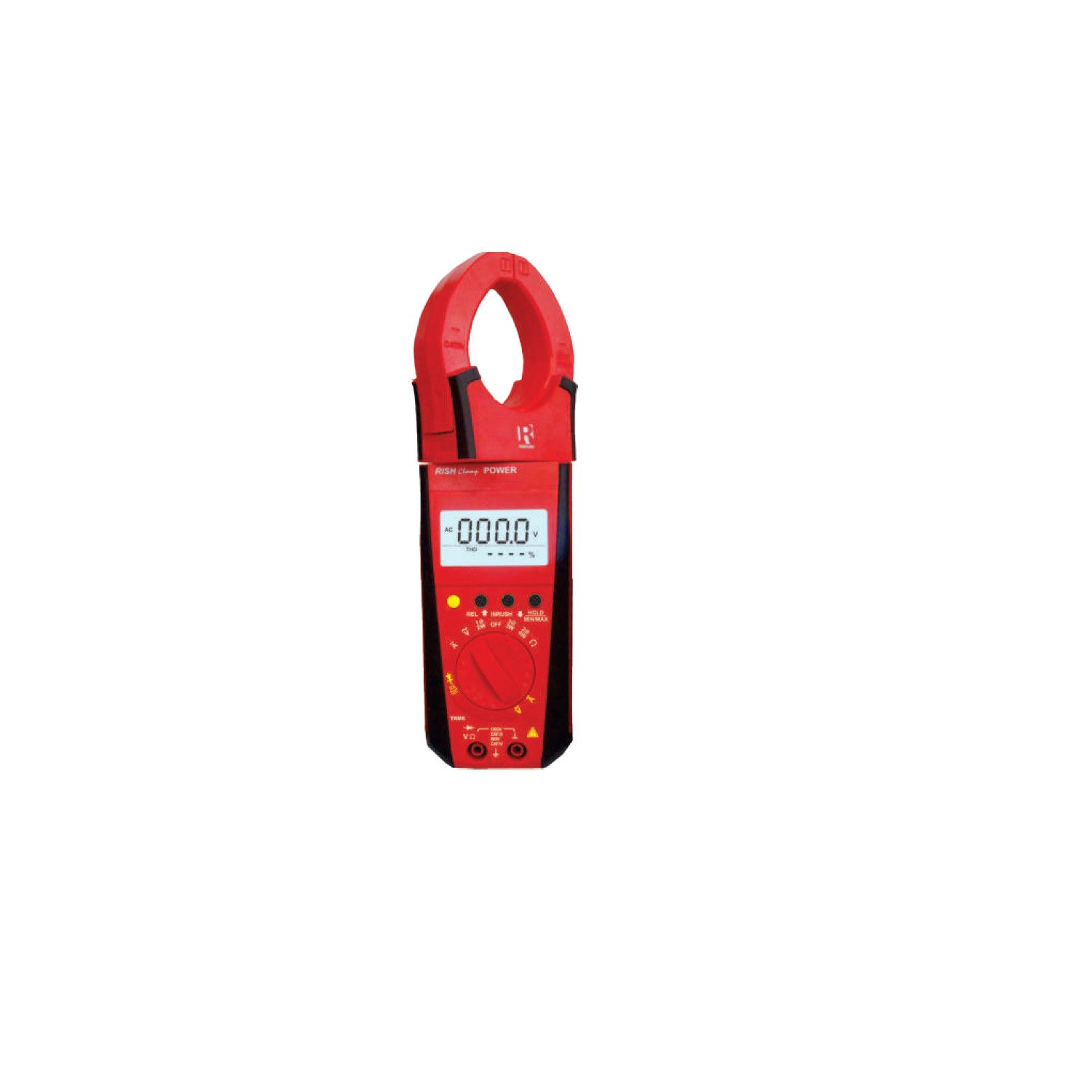

Digital Clamp Ammeter Multimeter with Wide Measurement Range in DC and AC
Ref. Ledkia: 87107
Colour :
Red
- In Stock, delivery in 15-20 days
£374.99
20% VAT includedIn Stock, delivery in 15-20 days
Are you a lighting professional or a company?
- Great discounts on RRP
- Extended warranty
- Exclusive services
Buy now, pay later
Credit payment30 Day Return
You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.
Custom-made products and cut-to-size strips are excluded.
Full conditions here: After-sales service.
24h Free Delivery
If you place your order today before 16:30h, delivery within 24/48h (working days).
Shipping is free on purchases over £ 49.99 (incl. VAT).
Full conditions here: Delivery methods.
100% secure payments
At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.
More information: Payment methods.
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Full conditions here: After-sales service.
Dimensions
- Height270 mm
- Width70 mm
- Diameter51 mm
- dimensions270 mm x Ø51 mm
- Length90 mm
Downloads
Technical Data Sheet PDF
Certificates and Stamps
Technical Specifications
- ColourRed
- electrical insulation classIII
- MaterialPC
- dimensions270 mm x Ø51 mm
- Height270 mm
- Width70 mm
- Length90 mm
- Diameter51 mm
- Ambient Working Temperature0 °C~+55 °C
- Battery operatedYes
- Type of battery6F22
- Number of batteries1
- CertificatesRoHS, CE, UKCA
- Contains batteryNo
- Maximum Voltage999.9 V
- Warranty3 years
Description
The Digital Clamp Ammeter Multimeter with Wide Measurement Range in DC and AC is a perfect tool to make all the necessary measurements in both AC and DC up to a maximum of 999.9V DC and 999.9V AC.
These tools are very useful thanks to its ease of use, thanks to the clamp just by introducing the conductor to be measured we can know the current flowing through it at the exact moment.
This clamp ammeter is designed to know all the necessary measurements in any type of electrical installation.
Features of the Digital Clamp Ammeter Multimeter with Wide Measurement Range in DC and AC
This clamp includes a new 360º rotating clamp system, which allows measurements to be taken more comfortably and in places that are difficult to access.
The housing has a protection rating of IP50 and the measurement terminals IP20.
The Clamp Ammeter with Wide Measurement Range in DC and AC features a 51 mm jaw opening, therefore conductors up to a maximum diameter of 51 mm can be tested.
Standards:
- Safety: IEC61010-1-2010
CAT IV 600V
CAT III 1000V
- IP water and dust: IEC60529
- Emission: IEC61326:2012 class B
- Immunity: IEC61326:2012, IEC61000-4-2,
IEC61000-4-3
- Pollution degree: 2
Part number: CL30-1NZ00000000000000
