Power 12 W
Tension 220-240V AC
Luminosity 1080 lm
cut out dimensions Ø65 mm
Power
12 W
Tension
220-240V AC
Luminosity
1080 lm
cut out dimensions
Ø65 mm
Diameter
75 mm
Type of dimming
TRIAC
Power Factor
0.9
IP protection
IP20
dimensions
100 mm x Ø75 mm
Height
100 mm
IK protection
IK05
Luminous Efficiency
90 lm/W

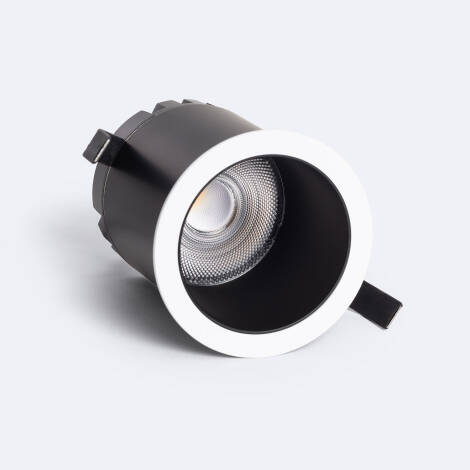

Round Dimmable 12W LED Downlight Ø65mm MINI TRIAC
Ref. Ledkia: 105560
Colour : White
- Pre-Order, estimated shipping from 05/03/2025
- In Stock, delivery in 15-20 days
Before £22.29
£19.99
VAT included
In Stock, delivery in 15-20 days
Includes Driver
Are you a lighting professional or a company?
- Great discounts on RRP
- Extended warranty
- Exclusive services
Buy now, pay later
Credit payment30 Day Return
You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.
Custom-made products and cut-to-size strips are excluded.
Full conditions here: After-sales service.
24h Free Delivery
If you place your order today before 2:30 pm, delivery within 24/48h (working days).
Shipping is free on purchases over £ 49.99 (incl. VAT).
Full conditions here: Delivery methods.
100% secure payments
At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.
More information: Payment methods.
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Full conditions here: After-sales service.
Dimensions
- Height100 mm
- Diameter75 mm
- dimensions100 mm x Ø75 mm
- cut out dimensionsØ65 mm
Downloads
Technical Data Sheet PDF
Certificates and Stamps
Energy Efficiency
Regulation 2023Technical Specifications
- Energy efficiency 2023 (EU-2019/2015)G
- ColourWhite
- Power12 W
- Power Factor0.9
- Tension220-240V AC
- Frequency50-60 Hz
- Chromatic Reproduction Index80
- Luminosity1080 lm
- IP protectionIP20
- Warranty3 years
- InstallationRecessed
- Driver intensity260 mA
- Diameter75 mm
- electrical insulation classII
- cut out dimensionsØ65 mm
- Height100 mm
- Colour Temperature2700K
- UseIndoor
- Cut out diameter65 mm
- Ambient Working Temperature-10 °C~+45 °C
- MaterialAluminium
- DimmableYes
- Light colourWarm White
- Luminous Efficiency90 lm/W
- Lifespan40.000 hours
- CertificatesRoHS, CE
- IK protectionIK05
- Type of dimmingTRIAC
- dimensions100 mm x Ø75 mm
- Contains batteryNo
- Selectable Opening Angle35º
- IncludesDriver
- Driver tension36 V
Description
The 12W Round Mini Spotlight UGR11 with Ø65 mm Cut Out is a very versatile option when lighting the space in a practical, simple and effective way. With this choice you will be opting for a significant saving in electricity consumption.
Features of the 12W Round Mini Spotlight UGR11 with Ø65 mm Cut Out
This downlight incorporates a LED chip with a power of 12W and a luminosity of 1080lm. The light emitted is spread at a concentrated angle of 35º. It has a UGR of less than 11 and a colour rendering index (CRI) of 80.
It is made from aluminium, a material that is highly resistant to external agents and with very good finishes. Its installation is very simple, it only requires a Ø65 mm hole in the surface where it is to be installed.
With the characteristics of this LED lighting product you will have in your hands a product with good performance. Ideal for use in interior spaces where it is not necessary to use a large amount of light. It is mainly used in transit areas such as hallways, corridors or stairways.
