  • 8 W
    Power 8 W
  • 220-240V AC
    Tension 220-240V AC
  • 760 lm
    Luminosity 760 lm
  • Ø65 mm
    cut out dimensions Ø65 mm

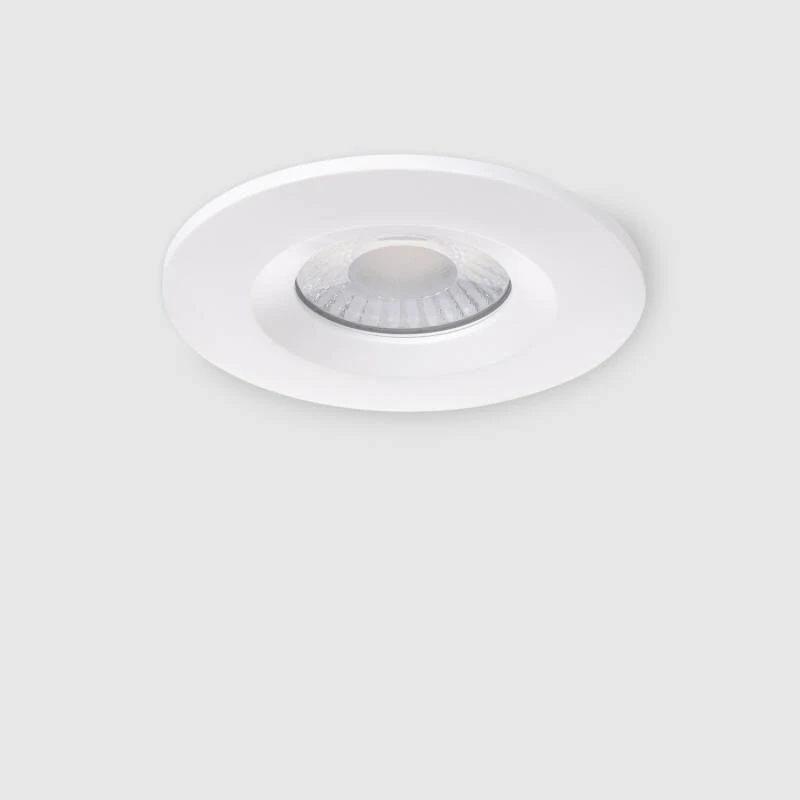

Product of 5-8W Round Dimmable Fire Rated IP65 LED Downlight Ø 65 mm Cut-out NF
    Product of 5-8W Round Dimmable Fire Rated IP65 LED Downlight Ø 65 mm Cut-out NF
    Product of 5-8W Round Dimmable Fire Rated IP65 LED Downlight Ø 65 mm Cut-out NF
    Product of 5-8W Round Dimmable Fire Rated IP65 LED Downlight Ø 65 mm Cut-out NF
    Product of 5-8W Round Dimmable Fire Rated IP65 LED Downlight Ø 65 mm Cut-out NF
    Product of 5-8W Round Dimmable Fire Rated IP65 LED Downlight Ø 65 mm Cut-out NF
    Product of 5-8W Round Dimmable Fire Rated IP65 LED Downlight Ø 65 mm Cut-out NF
    Product of 5-8W Round Dimmable Fire Rated IP65 LED Downlight Ø 65 mm Cut-out NF
1 / 7
  • 8 W

    Power

    8 W

  • 220-240V AC

    Tension

    220-240V AC

  • 760 lm

    Luminosity

    760 lm

  • Ø65 mm

    cut out dimensions

    Ø65 mm

  • 90 mm

    Diameter

    90 mm

  • TRIAC

    Type of dimming

    TRIAC

  • 0.9

    Power Factor

    0.9

  • IP65

    IP protection

    IP65

  • 45 mm x Ø90 mm

    dimensions

    45 mm x Ø90 mm

  • 45 mm

    Height

    45 mm

  • 110 lm/W

    Luminous Efficiency

    110 lm/W

  • 60º

    Selectable Opening Angle

    60º

5-8W Round Dimmable Fire Rated IP65 LED Downlight Ø 65 mm Cut-out NF

Download technical datasheet

Ref. Ledkia: 100220

Colour Temperature :

Selectable - Neutral (Daylight)

£14.39

20% VAT included
Energetic efficiency

Pre-Order, estimated shipping from 05/02/2025

Includes Driver

PRO CLUB badge

Are you a lighting professional or a company?

  • Great discounts on RRP
  • Extended warranty
  • Exclusive services
Further information

Buy now, pay later

Credit payment

  • 30 Day Return

    You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.


    Custom-made products and cut-to-size strips are excluded.


    Full conditions here: After-sales service.

  • 24h Free Delivery

    If you place your order today before 16:30h, delivery within 24/48h (working days).


    Shipping is free on purchases over £ 49.99 (incl. VAT).


    Full conditions here: Delivery methods.

  • 100% secure payments

    payment method image 1

    payment method image 2

    At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.


    More information: Payment methods.

  • Up to 5 year warranty

    Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


    You will find the exact product warranty in the technical details.


    Full conditions here: After-sales service.

Dimensions

  • Height45 mm
  • Diameter90 mm
  • dimensions45 mm x Ø90 mm
  • cut out dimensionsØ65 mm

Downloads

  • pdf file

    Technical Data Sheet PDF

Certificates and Stamps

CertificateCertificate

Energy Efficiency

Efficiency energeticRegulation 2023

Technical Specifications

  • Light colourSelectable - Neutral (Daylight)
  • Energy efficiency 2023 (EU-2019/2015)F
  • Replaceable driverYes
  • Replaceable light sourceYes
  • Power8 W
  • Power Factor0.9
  • Tension220-240V AC
  • Frequency50-60 Hz
  • electrical insulation classI
  • DimmableYes
  • Light SourceSMD2835
  • Chromatic Reproduction Index80
  • Luminosity760 lm
  • Luminous Efficiency110 lm/W
  • UseIndoor, Outdoor
  • IP protectionIP65
  • MaterialPC
  • ColourWhite
  • InstallationRecessed
  • dimensions45 mm x Ø90 mm
  • cut out dimensionsØ65 mm
  • Height45 mm
  • Diameter90 mm
  • Working temperature-20 °C~+45 °C
  • Ambient Working Temperature-20 °C~+50 °C
  • IncludesDriver
  • Lifespan40.000 hours
  • CertificatesRoHS, CE, UKCA, SAA
  • Warranty3 years
  • Cut out diameter65 mm
  • Type of dimmingTRIAC
  • Selectable Opening Angle60º

Description

The 4CCT (Daylight-Cool White) Round Dimmable Fire Rated LED Downlight with Ø65 mm Cut-out IP65 is a downlight designed to provide high quality and safe lighting, with the advantage of being fire resistant, which makes it indispensable in areas where regulations require a lighting system with special safety features. This type of lighting is perfect for offices, homes, shops and restaurants. This particular model has a choice of four different colour temperatures, ranging from 2700K to 4000K, allowing you to tailor the lighting to your specific needs. In addition, this downlight also has a selectable power of 5W or 8W, which will allow you to adjust its maximum power prior to installation and thus save on your electricity bill.

Our fire rated downlights not only comply with BS476-21 by resisting fire for up to 90 minutes, but are also rated to thermal performance criteria TPa and TPb. This ensures that they can be installed under thermally insulating materials without the risk of overheating. In the UK, TPa rating is mandatory in living spaces and publicly accessible areas such as hotels, hospitals and schools, where fire safety is critical. TPb products are suitable for less demanding locations that still require reliable protection.

This downlight is easy to install thanks to its GST18i3 quick connector. This three-pole connector (phase, neutral and earth) is ideal for a variety of lighting applications in both residential and commercial environments thanks to its plug-and-play design. The main advantage of the GST18i3 is its simple and quick installation, which saves time and reduces labour complexity. In addition, its robust construction and compliance with safety regulations make it a reliable and versatile choice for a variety of electrical installations.

It is worth noting the IP65 rating of the downlight making it water and dust resistant. It is perfect for use even in wet environments. By choosing our range, you are choosing a lighting solution that offers not only safety and compliance with the strictest regulations, but also versatility and peace of mind in any environment.
