Power 12 W
Tension 220-240V AC
Luminosity 1080 lm
cut out dimensions Ø155 mm
Power
12 W
Tension
220-240V AC
Luminosity
1080 lm
cut out dimensions
Ø155 mm
Diameter
170 mm
Type of dimming
Remote Control
IP protection
IP20
dimensions
20 mm x Ø170 mm
Height
20 mm
Luminous Efficiency
90 lm/W
Selectable Opening Angle
120º
Material
Aluminium, PC

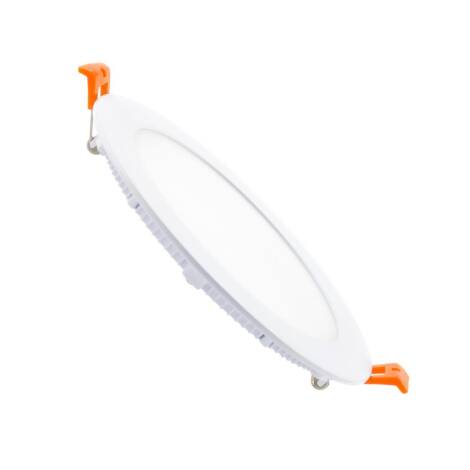

12W Round LED Downlight SwitchCCT Ø155 mm Cut-Out Compatible with RF Controller V2
Ref. Ledkia: 95577
Colour Temperature :
Selectable - Warm - Neutral - Cold
£15.39
20% VAT included
In Stock, delivery in 24/48h
Not included Switch
Are you a lighting professional or a company?
- Great discounts on RRP
- Extended warranty
- Exclusive services
Buy now, pay later
Credit payment30 Day Return
You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.
Custom-made products and cut-to-size strips are excluded.
Full conditions here: After-sales service.
24h Free Delivery
If you place your order today before 16:30h, delivery within 24/48h (working days).
Shipping is free on purchases over £ 49.99 (incl. VAT).
Full conditions here: Delivery methods.
100% secure payments
At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.
More information: Payment methods.
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Full conditions here: After-sales service.
Dimensions
- Height20 mm
- Diameter170 mm
- dimensions20 mm x Ø170 mm
- cut out dimensionsØ155 mm
Downloads
Technical Data Sheet PDF
Certificates and Stamps
Energy Efficiency
Regulation 2023Technical Specifications
- Light colourSelectable - Warm - Neutral - Cold
- Energy efficiency 2023 (EU-2019/2015)D
- Replaceable driverNo
- Replaceable light sourceNo
- Available ComponentsYes
- Power12 W
- Tension220-240V AC
- Nominal Voltage85-265V AC
- Frequency50-60 Hz
- electrical insulation classII
- DimmableYes
- Light SourceOSRAM
- Luminosity1080 lm
- Luminous Efficiency90 lm/W
- Type of lensOpaal
- UseIndoor
- IP protectionIP20
- MaterialPC, Aluminium
- InstallationRecessed
- dimensions20 mm x Ø170 mm
- cut out dimensionsØ155 mm
- Height20 mm
- Diameter170 mm
- Ambient Working Temperature-20 °C~+45 °C
- Not includedSwitch
- Lifespan40.000 hours
- CertificatesRoHS, CE, UKCA
- Warranty3 years
- Cut out diameter155 mm
- Type of dimmingRemote Control
- Selectable Opening Angle120º
Description
The 12W Round LED Ceiling Panel CCT Selectable Switch Ø155 mm Cut-Out Dimming Compatible with RF Controller V2 stands out for being extremely thin, perfect when there is no space on the ceiling to install more bulky solutions. You can change its color temperature and regulate the luminous intensity using its radiofrequency controller. The controller, which is sold separately, allows you to change the color temperature and dim between 10-20 plates within a range of 10 meters. Its light can vary from a cozy warm white to a relaxed cool white to adapt the room to the desired needs.
It integrates a SMD light source that provides high quality light that is distributed at an angle of 120º. Given its performance, it is perfect to replace a halogen luminaire up to 100W.
Advantages of the 12W Round LED Ceiling Panel CCT Selectable Switch Ø155 mm Cut-Out Dimming Compatible with RF Controller V2
The main advantage of this type of LED lighting is given by its small size, which allows us to install it in false ceilings, even if there is hardly any space. At the same time, its reduced consumption and durability allow us to drastically reduce the amount of the electricity bill and the costs of maintenance and replacement of the lights.
To change the color temperature and regulate the intensity, the CCT Selectable 2.4 GHz V.2 Remote Control Panel and Ceiling Controller is needed.
What does CCT (correlated color temperature) mean?
When a product is marked as CCT it means that we can change the color temperature. CCT is defined in Kelvin degrees, according to the color perception of a white LED to the human eye, we can differentiate them in 3 types of color; a warm light, a neutral light and a cold light, from 2700-3500K, 4000-4500K and 5000-6500K respectively. The CCT values do not indicate anything about the color rendering capability of the LED.
