Tension 220-240V AC
MAX power 800 W
IP protection IP20
dimensions 74.6 mm x 36 mm x 18 mm
Tension
220-240V AC
MAX power
800 W
IP protection
IP20
dimensions
74.6 mm x 36 mm x 18 mm
Width
36 mm
Height
74.6 mm
Material
PCB
Non-Contact Sensor Switch Short Range for Motion Activation
Ref. Ledkia: 69938
Colour :
Black
- In Stock, delivery in 24/48h
£10.29
20% VAT includedIn Stock, delivery in 24/48h
Are you a lighting professional or a company?
- Great discounts on RRP
- Extended warranty
- Exclusive services
Buy now, pay later
Credit payment30 Day Return
You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.
Custom-made products and cut-to-size strips are excluded.
Full conditions here: After-sales service.
24h Free Delivery
If you place your order today before 16:30h, delivery within 24/48h (working days).
Shipping is free on purchases over £ 49.99 (incl. VAT).
Full conditions here: Delivery methods.
100% secure payments
At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.
More information: Payment methods.
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Full conditions here: After-sales service.
Scheme
The customer's visual perception of sizes, colours, textures, and so on, of our products, can be affected by factors such as ambient lighting, screen calibration, viewing angle or the device of each user. The customer must bear in mind that any returns made for reasons not related to the functionality of the product will be at the customer's expense.
Dimensions
- Height74.6 mm
- Width36 mm
- dimensions74.6 mm x 36 mm x 18 mm
- Length18 mm
Downloads
Technical Data Sheet PDF
Certificates and Stamps
Technical Specifications
- ColourBlack
- MAX power800 W
- Tension220-240V AC
- Frequency50-60 Hz
- UseIndoor
- IP protectionIP20
- MaterialPCB
- InstallationSurface
- dimensions74.6 mm x 36 mm x 18 mm
- Height74.6 mm
- Width36 mm
- Length18 mm
- DetectorPIR
- Detection Angle180 °
- Ambient Working Temperature-20 °C~+50 °C
- WiFiNo
- CertificatesRoHS, CE, UKCA
- Warranty3 years
- Type of sensorContactless
Description

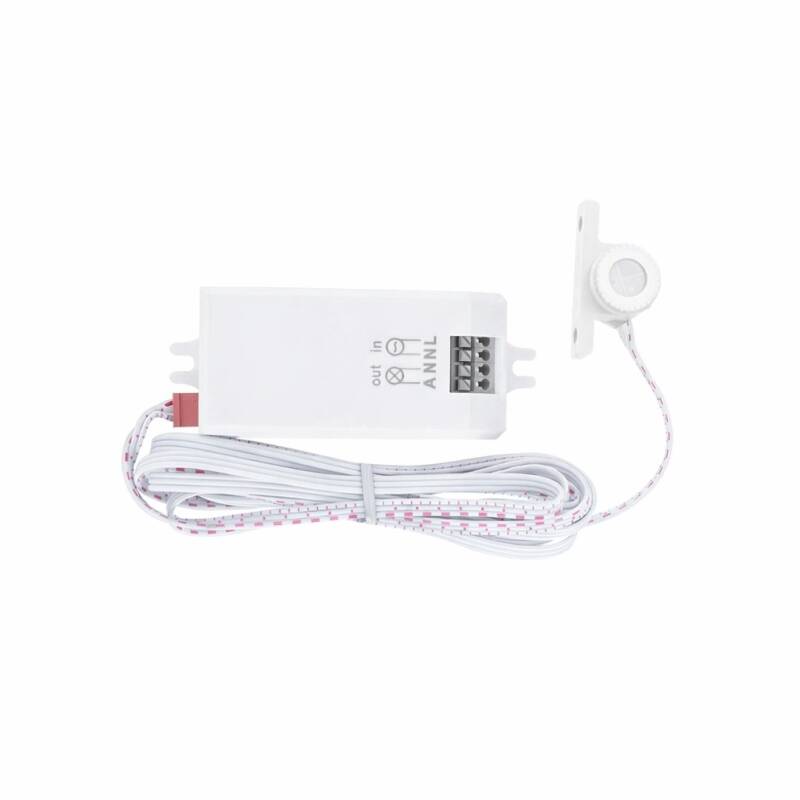

The Motion Ignition Short Range Non-Contact Sensor Switch is used to turn on any light in a room, bathroom, without the need to touch any physical object. Thanks to its close motion operation, it helps to prevent the transmission of bacteria or viruses as there is no contact with any surface unlike conventional switches.
Characteristics of the Non-Contact Sensor Switch Short Range for Motion Activation
With a simple movement of the hand at a distance of 0 to 3.5 cm from the sensor you will be able to both turn on and off any light. It has powers of up to 500W, making it possible to switch on and off from a single bulb to a corridor with several downlights. The light will remain on until another hand movement is detected. The detection angle of the sensor is 90º making it very easy to turn on from any position.
Advantage of Non-Contact Sensor Switch Short Range for Motion Ignition
This Motion Ignition Short Range Non-Contact Sensor Switch is a perfect solution for areas with high foot traffic, to prevent the transmission of bacteria and viruses through contact.
Light up your home discreetly with the Motion Ignition Short-Range Sensor Switch.
