  • 220-240V AC
    Tension 220-240V AC
  • Ø63 mm
    cut out dimensions Ø63 mm
  • 75 mm
    Diameter 75 mm
  • IP20
    IP protection IP20
Product of Recessed 360º PIR Motion Sensor
    Product of Recessed 360º PIR Motion Sensor
    Product of Recessed 360º PIR Motion Sensor
    Product of Recessed 360º PIR Motion Sensor
    Product of Recessed 360º PIR Motion Sensor
1 / 4
  • 220-240V AC

    Tension

    220-240V AC

  • Ø63 mm

    cut out dimensions

    Ø63 mm

  • 75 mm

    Diameter

    75 mm

  • IP20

    IP protection

    IP20

  • 65 mm x Ø75 mm

    dimensions

    65 mm x Ø75 mm

  • 65 mm

    Height

    65 mm

  • PC

    Material

    PC

Recessed 360º PIR Motion Sensor

Download technical datasheet

Ref. Ledkia: 498

£8.79

20% VAT included

In Stock, delivery in 24/48h

PRO CLUB badge

Are you a lighting professional or a company?

  • Great discounts on RRP
  • Extended warranty
  • Exclusive services
Further information

Buy now, pay later

Credit payment

  • 30 Day Return

    You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.


    Custom-made products and cut-to-size strips are excluded.


    Full conditions here: After-sales service.

  • 24h Free Delivery

    If you place your order today before 16:30h, delivery within 24/48h (working days).


    Shipping is free on purchases over £ 49.99 (incl. VAT).


    Full conditions here: Delivery methods.

  • 100% secure payments

    payment method image 1

    payment method image 2

    At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.


    More information: Payment methods.

  • Up to 5 year warranty

    Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


    You will find the exact product warranty in the technical details.


    Full conditions here: After-sales service.

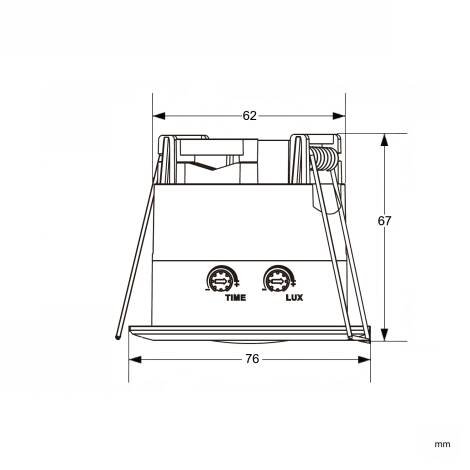

Dimensions

  • Height65 mm
  • Diameter75 mm
  • dimensions65 mm x Ø75 mm
  • cut out dimensionsØ63 mm

Downloads

  • pdf file

    Technical Data Sheet PDF

Certificates and Stamps

CertificateCertificate

Technical Specifications

  • Tension220-240V AC
  • Frequency50-60 Hz
  • electrical insulation classII
  • UseIndoor
  • IP protectionIP20
  • MaterialPC
  • InstallationRecessed
  • dimensions65 mm x Ø75 mm
  • cut out dimensionsØ63 mm
  • Height65 mm
  • Diameter75 mm
  • DetectorPIR
  • Detection Angle360 °
  • Ambient Working Temperature-20 °C~+40 °C
  • WiFiNo
  • CertificatesRoHS, CE, UKCA
  • Warranty3 years
  • Cut out diameter63 mm
  • Type of sensorPIR

Description

This ceiling mounted PIR Motion Detector has a 360° coverage angle and a 6 metre detection radius when at a height of 2 to 4 metres. Capable of detecting infrared emissions from any heat source without emitting any radiation.

The detector activates its output circuit when a heat source moves in front of the sensor (at a rate of 0.6 to 1.5 m/s) and deactivates its output circuit when the heat is no longer detected and some time has passed.

Detection Angle: 360°

Detection Distance: 6 metres.

Minimum ON time: 10 seconds ±3 seconds.

Maximum ON time: 15 minutes ±2 minutes.

Installation Height: 2 to 4 metres.

Detection Speed: 0.6-1.5 m/s.

Charges: 300W LED and 1200W Incandescent.
