Dimmable No
Dimmable
No
Power
40 W
Tension
220-240V AC
Luminosity
4000 lm
Power Factor
0.9
Glare Factor
UGR 17
IP protection
IP40
Battery operated
No
dimensions
30 mm x 595 mm x 595 mm
Width
595 mm
Height
30 mm
Frame
60x60 cm
IK protection
IK05

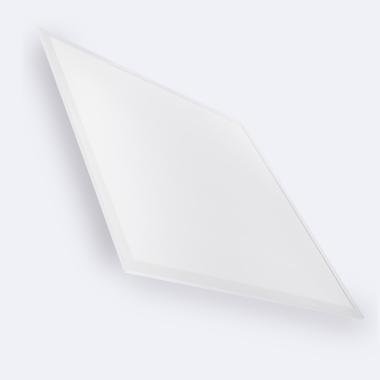

60x60cm 40W LIFUD Microprismatic UGR17 LED Panel 4000lm
Ref. Ledkia: 71241
(2)4.5 out of 5 stars
Colour Temperature :
Warm White 3000K
Type of driver :
LIFUD
Box format :
Individual
In Stock, delivery in 24/48h
£20.99
20% VAT included
In Stock, delivery in 24/48h
Are you a lighting professional or a company?
- Great discounts on RRP
- Extended warranty
- Exclusive services
Buy now, pay later
Credit payment30 Day Return
You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.
Custom-made products and cut-to-size strips are excluded.
Full conditions here: After-sales service.
24h Free Delivery
If you place your order today before 16:30h, delivery within 24/48h (working days).
Shipping is free on purchases over £ 49.99 (incl. VAT).
Full conditions here: Delivery methods.
100% secure payments
At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.
More information: Payment methods.
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Full conditions here: After-sales service.
Dimensions
- Height30 mm
- Width595 mm
- dimensions30 mm x 595 mm x 595 mm
- Length595 mm
- Weight1.89 kg
Downloads
Technical Data Sheet PDF
Certificates and Stamps
Energy Efficiency
Regulation 2023Technical Specifications
- DimmableNo
- Light colourWarm White
- Colour Temperature3000K
- Energy efficiency 2023 (EU-2019/2015)F
- Type of driverLIFUD
- Operates with Emergency LightingNo
- Box formatIndividual
- Driver brandLIFUD
- Replaceable driverYes
- Replaceable light sourceYes
- Available ComponentsYes
- Power40 W
- Power Factor0.9
- Tension220-240V AC
- Nominal Voltage85-265V AC
- Frequency50-60 Hz
- electrical insulation classII
- Light SourceSMD2835
- Chromatic Reproduction Index80
- Luminosity4000 lm
- Luminous Efficiency100 lm/W
- Type of lensOpaal
- UseIndoor
- IP protectionIP40
- IK protectionIK05
- Glare FactorUGR 17
- MaterialAluminium, PC
- ColourWhite
- InstallationFalse ceiling
- dimensions30 mm x 595 mm x 595 mm
- Height30 mm
- Width595 mm
- Length595 mm
- Weight1.89 kg
- Frame60x60 cm
- Ambient Working Temperature-20 °C~+45 °C
- Battery operatedNo
- WiFiNo
- Lifespan50.000 hours
- CertificatesCEE, RoHS, TÜV, CE, ENEC
- Warranty5 years
- Contains batteryNo
- Includes sensorNo
Description
The LED panel 60x60cm 40W 4000lm (UGR17) with white frame combines a very modern design with excellent light efficiency and quality. This panel is particularly suitable for offices and work areas due to its low glare factor.
The light source of the LED panel has a luminance of 4000 lumens which is equivalent to that which would be emitted by a conventional 80W luminaire. In this way, a very important saving is achieved compared to this type of traditional low consumption luminaires. It supports multi-voltage between 85V 265V AC and an ambient working temperature range of -20ºC to 45ºC.
Applications of the LED Panel 60x60cm 40W 4000lm (UGR17)
Suitable for lighting offices thanks to its low glare. The glare caused by lighting can have a negative influence on people, because a comfortable lighting environment is needed to help us in our tasks. A low UGR level increases the feeling of well-being of workers, which contributes to the level of productivity indirectly.
Low levels of glare are recommended in all places where people spend long periods of time exposed to artificial light, and are very important in offices, educational centres, work areas, etc.
Specially designed for installation in technical ceilings, it is used above all in commercial or work spaces such as: hotels, restaurants, supermarkets, exhibition halls, museums or offices. It provides a high quality and very uniform light that improves working conditions. It also includes an opal diffuser that reduces glare.
Enjoy the best LED lighting with the most advanced and efficient products on the market, such as the 60x60cm 40W LED panel with a white frame offered on our online shop, Ledkia.
* They are installed in a removable false ceiling. Other installation options are available in the accessories section
