Power 50000 W
Power
50000 W
MPPT Tension range
200 V-1000 V
MAX MPPT Intensity
20 A
Number of Solar Trackers Mppt
4
IP protection
IP66
dimensions
530 mm x 640 mm x 270 mm
Width
640 mm
Height
530 mm
Connectivity
Wi-Fi
Brand
HUAWEI
HUAWEI

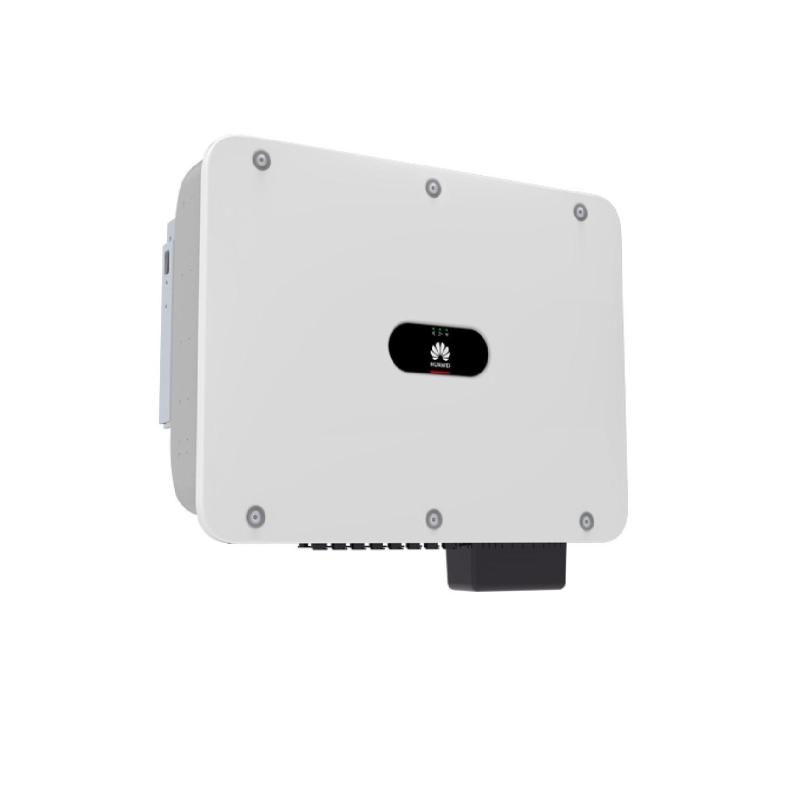

HUAWEI SUN2000-M3 Solar Inverter with Grid Injection 50 kW IP66 Three-Phase
Ref. Ledkia: 102208
Ref. Fab: SUN2000-50KTL-M3
Power :
50000 W
£3,502.99
20% VAT includedIn Stock, delivery in 15-20 days
Are you a lighting professional or a company?
- Great discounts on RRP
- Extended warranty
- Exclusive services
Buy now, pay later
Credit payment30 Day Return
You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.
Custom-made products and cut-to-size strips are excluded.
Full conditions here: After-sales service.
24h Free Delivery
If you place your order today before 16:30h, delivery within 24/48h (working days).
Shipping is free on purchases over £ 49.99 (incl. VAT).
Full conditions here: Delivery methods.
100% secure payments
At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.
More information: Payment methods.
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Full conditions here: After-sales service.
Dimensions
- Height530 mm
- Width640 mm
- dimensions530 mm x 640 mm x 270 mm
- Length270 mm
- Weight49 kg
Downloads
Technical Data Sheet PDF
Certificates and Stamps
Technical Specifications
- Power50000 W
- Available ComponentsNo
- MAX MPPT Intensity20 A
- Number of Solar Trackers Mppt4
- Maximum Short Circuit Current40 A
- electrical insulation classI
- UseIndoor, Outdoor
- IP protectionIP66
- dimensions530 mm x 640 mm x 270 mm
- Height530 mm
- Width640 mm
- Length270 mm
- Weight49 kg
- Ambient Working Temperature-20 °C~+60 °C
- ConnectivityWi-Fi
- CertificatesRoHS, TÜV, CE
- BrandHUAWEI
- Warranty3 years
- MPPT Tension range200 V-1000 V
Description
This HUAWEI SUN2000-M3 Solar Inverter with 50 kW IP66 Three-phase grid injection is a device that allows us to convert the direct current provided by the solar panels of a photovoltaic installation into alternating current with three-phase output for the consumption of commercial or industrial premises. It is manufactured by the prestigious brand Huawei, a leading company in the manufacture of photovoltaic equipment, telecommunications and telephony equipment, etc.
It has 4 MPPT (Maximum Power Point Tracking) trackers, this technology ensures the optimum balance between voltage and current so that the solar panels operate at their maximum power. It is worth noting that although the power factor of this inverter is 0.8, its efficiency is 98.5%, making it one of the highest performing inverters on the market.
This type of grid-connected inverters are the simplest because they only work when they receive sunlight. They are connected to the grid and generate a signal of the same frequency to inject the energy produced by the solar panels into the grid. If you want to block the surplus produced by the inverter, you will need to purchase a zero discharge kit which is sold separately.
Grid-tie inverters are specially designed for industries that already have a connection to the grid. The inverter can directly deliver the energy generated by the PV panels to the industry's electrical installation. At night, when there is no power generation, the inverter will remain off. The next day, when the sun shines, it will automatically switch on. Grid-connected PV systems are the most cost-effective because they provide savings on electricity bills with a very low investment.
Huawei provides comprehensive support throughout the life cycle of its products for any type of solar installation. They can offer repair or replacement of any product when you need it.
