Power 7400 W

Power
7400 W
Tension
220-240V AC
IP protection
IP54
dimensions
370 mm x 235 mm x 115 mm
Width
235 mm
Height
370 mm
IK protection
IK08
Brand
SCAME
Current intensity
32 A
Official Warranty
SCAME

Power :

7400 W

7400 W
In Stock, estimated delivery from 20-30 days

£874.39

20% VAT included

In Stock, estimated delivery from 20-30 days

Are you a lighting professional or a company?

Great discounts on RRP
Extended warranty
Exclusive services

Further information

Buy now, pay later

Credit payment

30 Day Return
You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.

Custom-made products and cut-to-size strips are excluded.

Full conditions here: After-sales service.
24h Free Delivery
If you place your order today before 16:30h, delivery within 24/48h (working days).

Shipping is free on purchases over £ 49.99 (incl. VAT).

Full conditions here: Delivery methods.
100% secure payments
At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.

More information: Payment methods.
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.

You will find the exact product warranty in the technical details.

Full conditions here: After-sales service.

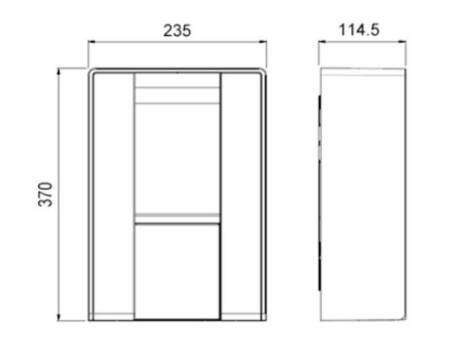

Dimensions

Height370 mm
Width235 mm
dimensions370 mm x 235 mm x 115 mm
Length115 mm
Weight3.16 kg

Downloads

Technical Data Sheet PDF

Certificates and Stamps

Technical Specifications

Power7400 W
Tension220-240V AC
Frequency50-60 Hz
Current intensity32 A
electrical insulation classI
UseIndoor, Outdoor
IP protectionIP54
IK protectionIK08
InstallationSurface
dimensions370 mm x 235 mm x 115 mm
Height370 mm
Width235 mm
Length115 mm
Weight3.16 kg
Ambient Working Temperature-30 °C~+50 °C
Number of poles1P + N + TT
Official WarrantySCAME
CertificatesRoHS, CE
BrandSCAME
Warranty3 years

Description

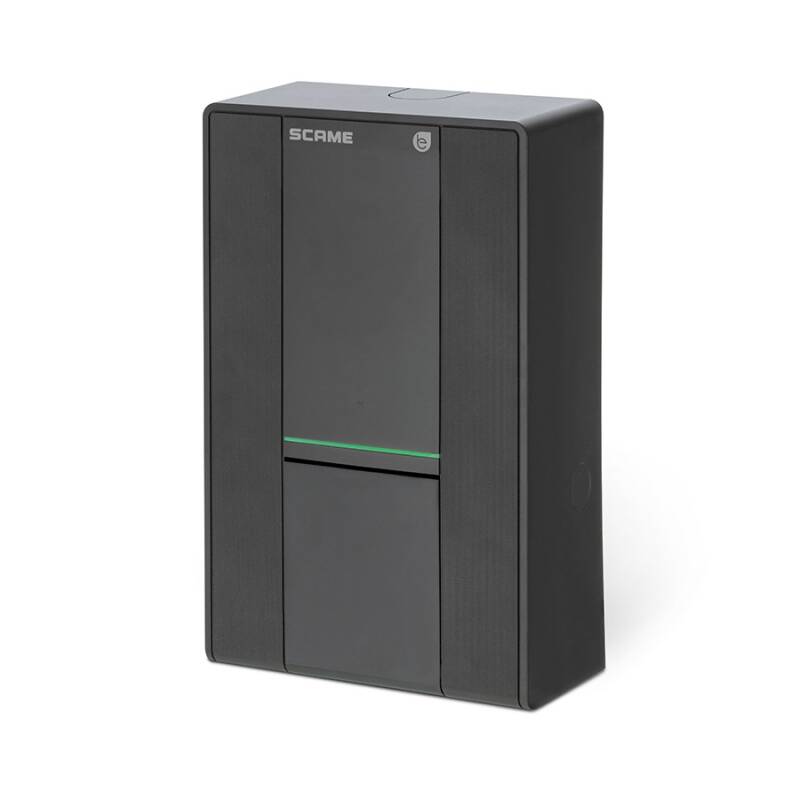

The SCAME 7,4kW Single Phase Electric Car Charger with Plug & Charge Socket 205.W18-B0 is a made in Italy charger that works with single phase current. It has a socket plug for connecting a cable hose with Type 2 connector. Most electric car drivers carry a Type 2 cable with them because in public access chargers it is more common to find a plug and have to connect your own cable. This charger is very simple to use, just plug and charge.

If we install the charger on public roads, hotels or hospitals we will be able to publish the charger in applications such as Electromaps but we will not be able to control the charger. As this charger does not incorporate OCPP it cannot be controlled remotely, it can only be published in the main applications for information purposes. For installation on public roads we recommend other SCAME models that do incorporate OCPP. The Electromaps App is the most widely used recharging point finder on the market. Please contact our sales department for more details on rates and the costs associated with having a charger published on Electromaps.

If we install the charger in a community of neighbours or in a private area, it will be as simple as plugging in and starting to charge the vehicle.

Features of the SCAME 7.4kW Single Phase Electric Car Charger with Plug & Charge Socket 205.W18-B0

SCAME chargers incorporate a rotary knob where you can adjust the power of the charger prior to installation. The SCAME product range has a modern design. It is installed on the wall or on poles specially designed for SCAME chargers. It is made of the highest quality ABS and has an IP54 rating, allowing it to be installed outdoors. It is sun resistant and waterproof. SCAME offers the possibility of customising the charger with its own design and including the logo of the company that manages the recharging. Please consult the sales department.

Applications of the SCAME Electric Car Charger 7,4kW Single Phase with Plug & Charge Socket 205.W18-B0

This charger is specially designed for intelligent charging of electric vehicles in both public and private environments. Hotels, hospitals, companies, residential communities, shopping centres, etc. In addition, there is the possibility of personalising the charger with company logos or messages.

* Complies with European CE regulations (LVD 2014/35/EU, EMCD 2014/30/EU), EC 61851-1, IEC 61851-21-2, IEC 62196-2.
