Power 60 W

1 / 2

Power
60 W
Tension
220-240V AC
Type of dimming
DALI, Push button
Power Factor
0.95
IP protection
IP20
dimensions
31 mm x 123.5 mm x 79.5 mm
Width
123.5 mm
Height
31 mm
Material
PC
Brand
BOKE
Dimmable
Yes
Working temperature
-20 °C~+45 °C

Power :

60 W

60 W
In Stock, delivery in 24/48h

£46.39

20% VAT included

In Stock, delivery in 24/48h

Place your order before 4:30pm and your order will be shipped today

Are you a lighting professional or a company?

Great discounts on RRP
Extended warranty
Exclusive services

Further information

Buy now, pay later

Credit payment

30 Day Return
You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.

Custom-made products and cut-to-size strips are excluded.

Full conditions here: After-sales service.
24h Free Delivery
If you place your order today before 16:30h, delivery within 24/48h (working days).

Shipping is free on purchases over £ 49.99 (incl. VAT).

Full conditions here: Delivery methods.
100% secure payments
At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.

More information: Payment methods.
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.

You will find the exact product warranty in the technical details.

Full conditions here: After-sales service.

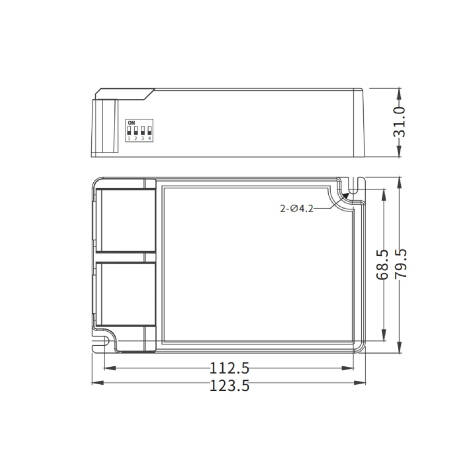

Dimensions

Height31 mm
Width123.5 mm
dimensions31 mm x 123.5 mm x 79.5 mm
Length79.5 mm

Downloads

Technical Data Sheet PDF

Certificates and Stamps

Technical Specifications

Power60 W
Driver intensity800 mA-2000 mA
Driver tension6 V-42 V
Power Factor0.95
Tension220-240V AC
Frequency50-60 Hz
electrical insulation classII
DimmableYes
UseIndoor
IP protectionIP20
No FlickerNo Flicker
MaterialPC
dimensions31 mm x 123.5 mm x 79.5 mm
Height31 mm
Width123.5 mm
Length79.5 mm
Working temperature-20 °C~+45 °C
Ambient Working Temperature-20 °C~+50 °C
CertificatesCE, CCC, UKCA, RCM, ENEC, DALI
BrandBOKE
Warranty3 years
Type of dimmingPush button, DALI

Description

Driver of the prestigious company BOKE specially designed for any application because its output does not incorporate any connector. An LED driver is responsible for transforming the alternating current from the mains into direct current suitable for making the LED chips shine. To find out if a driver is going to work with our luminaire, PCB or panel we should consult the voltage and output current of the driver.

Features of the 220-240V BOKE DALI/PUSH Dimmable No Flicker Driver 6-30V Output 800-2000mA 60W BK-DEL060

It allows precise and easy control of the brightness, which is very useful for applications where you want to create environments with different shades of light. Thanks to its DALI/PUSH technology, the luminaires can be dimmed in either of the two ways.
For DALI dimming you control the luminaire with a DALI dimmer, with PUSH dimming you control the luminaire with a push button.

Its output is multi-voltage which means that it can deliver a constant voltage within a range allowing the same driver to be used for various applications with different current and voltage requirements. Once the driver is powered, the voltage is automatically adjusted and the output voltage is constant. Its power factor is very high, making it a very efficient driver.

This driver allows you to supply up to a maximum of 60W of power to the LED load.
