The customer's visual perception of sizes, colours, textures, and so on, of our products, can be affected by factors such as ambient lighting, screen calibration, viewing angle or the device of each user. The customer must bear in mind that any returns made for reasons not related to the functionality of the product will be at the customer's expense.

Dimensions

Height485 mm
Diameter1320 mm
dimensions485 mm x Ø1320 mm

Downloads

Technical Data Sheet PDF

Certificates and Stamps

Energy Efficiency

Regulation 2023

Technical Specifications

ColourBlack
WiFiNo
ConnectivityRF
ConfigurationWithout light
ControllerRemote
Blade ColourDark wood
Fan power35 W
Type of motorDC
Number of speeds6
Speed modes126 RPM, 172 PRM, 147 PRM, 221 PRM, 190 PRM, 100 RPM
Number of blades3
Summer/Winter modeYes
Recommended areaLarge (more than 20 m²)
Tension220-240V AC
Frequency50-60 Hz
electrical insulation classII
DimmableYes
Adjustable in heightYes
UseIndoor
IP protectionIP20
MaterialPMMA, Metal
InstallationSurface
dimensions485 mm x Ø1320 mm
Height485 mm
Diameter1320 mm
Ambient Working Temperature-20 °C~+50 °C
Remote controlYes
CertificatesRoHS, CE, UKCA
BrandTECHBREY
Warranty3 years
Sound levels23 dB, 42 dB, 38 dB, 35 dB, 30 dB, 20 dB
Type of dimmingRemote Control

Description

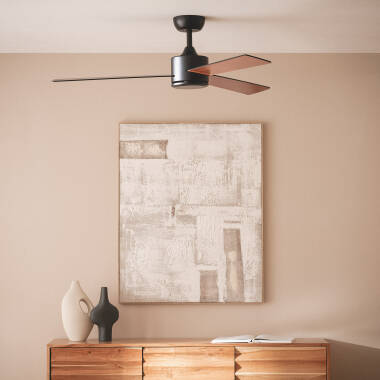

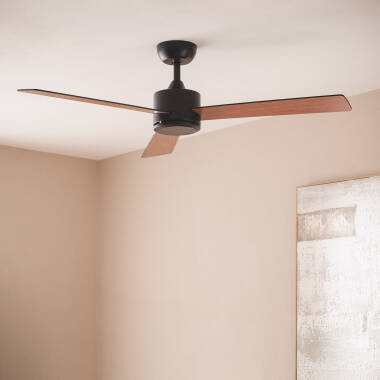

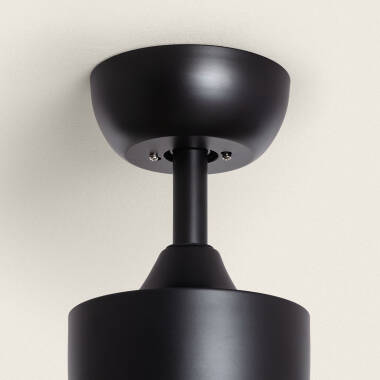

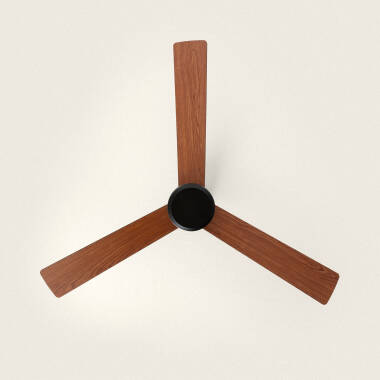

The Fleves Silent Ceiling Fan with DC Motor 132cm incorporates a light source with LED technology and CCT of 24W power. Its minimalist and elegant appearance makes it a decorative and functional element.

The fan incorporates a DC motor that stands out for its lightness, durability, efficiency and low energy consumption. Some of the advantages of a fan with DC motor compared to a fan with AC motor are:

- Extremely quiet and wobble-free fan. Thanks to its DC motor we manage to reduce the sound emitted by the fan, up to 50% compared to AC motors, making the fan perfect for rest, study and work rooms.

- Low consumption. Fans with DC motors consume up to 70% less energy than those with AC motors, which means savings on your household electricity bill.

- They are quicker to start up, change speed and stop. In addition, it incorporates 6 speed modes compared to the 3 or 4 speeds of AC motors.

It has a remote control with 6 functions:

- Switching on and off
- Colour temperature selection (Warm-Neutral-Cool)
- Light regulation
- 6 speeds
- Timer 1/2/4 hours
- Summer/Winter function

The Air Dual technology or Reverse System provides the fan with 2 operating modes (summer/winter). With this system, the direction of rotation of the motor and the blades is reversed to dissipate the hot air in summer and evenly distribute the heat from the heating in winter, which improves the thermal sensation, optimises the operation of the heating and contributes to energy savings.

To synchronise the driver with the remote control, connect the fan to the mains and press the ON/OFF button on the remote control for 8 seconds.
It integrates CCT LED light, which allows us to change the colour temperature between 3 types of light (warm light, cold light and neutral light) and create various atmospheres according to our needs.

The Fleves Silent Ceiling Fan is a perfect way to keep the rooms in your home cool and bright without having to install an air conditioner.

* The maximum distance of the fan from the ceiling is 48 cm.
* This fan is capable of cooling an area larger than 20 m².

What does CCT (correlated colour temperature) mean?

When a product is marked as CCT it means that we can change the colour temperature. CCT is defined in degrees Kelvin, according to the colour perception of a white LED to the human eye, we can differentiate between 3 types of colour; a warm light, a neutral light and a cool light, from 2700-3500K, 4000-4500K and 5000-6500K respectively. The CCT values do not indicate anything about the colour rendering capability of the LED.

*Includes a spare long pole that allows you to extend your fan by 10cm.
