IP protection IP20
Battery operated Yes
dimensions 442 mm x 390 mm x 132 mm
Width 390 mm

IP protection
IP20
Battery operated
Yes
dimensions
442 mm x 390 mm x 132 mm
Width
390 mm
Height
442 mm
Material
Aluminium
Brand
PYLONTECH
Current intensity
100 A

Energy consumption :

16.8 kWh

16.8 kWh
In Stock, estimated delivery from 3-5 weeks

£804.99

20% VAT included

In Stock, estimated delivery from 3-5 weeks

Are you a lighting professional or a company?

Great discounts on RRP
Extended warranty
Exclusive services

Further information

Buy now, pay later

Credit payment

30 Day Return
You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.

Custom-made products and cut-to-size strips are excluded.

Full conditions here: After-sales service.
24h Free Delivery
If you place your order today before 16:30h, delivery within 24/48h (working days).

Shipping is free on purchases over £ 49.99 (incl. VAT).

Full conditions here: Delivery methods.
100% secure payments
At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.

More information: Payment methods.
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.

You will find the exact product warranty in the technical details.

Full conditions here: After-sales service.

Dimensions

Height442 mm
Width390 mm
dimensions442 mm x 390 mm x 132 mm
Length132 mm
Weight8.5 kg

Downloads

Technical Data Sheet PDF

Certificates and Stamps

Technical Specifications

Available ComponentsYes
Replaceable batteryYes
Current intensity100 A
UseIndoor
IP protectionIP20
MaterialAluminium
dimensions442 mm x 390 mm x 132 mm
Height442 mm
Width390 mm
Length132 mm
Weight8.5 kg
Ambient Working Temperature-40 °C~+80 °C
Battery operatedYes
CertificatesRoHS, TÜV, CE
BrandPYLONTECH
Warranty3 years

Description

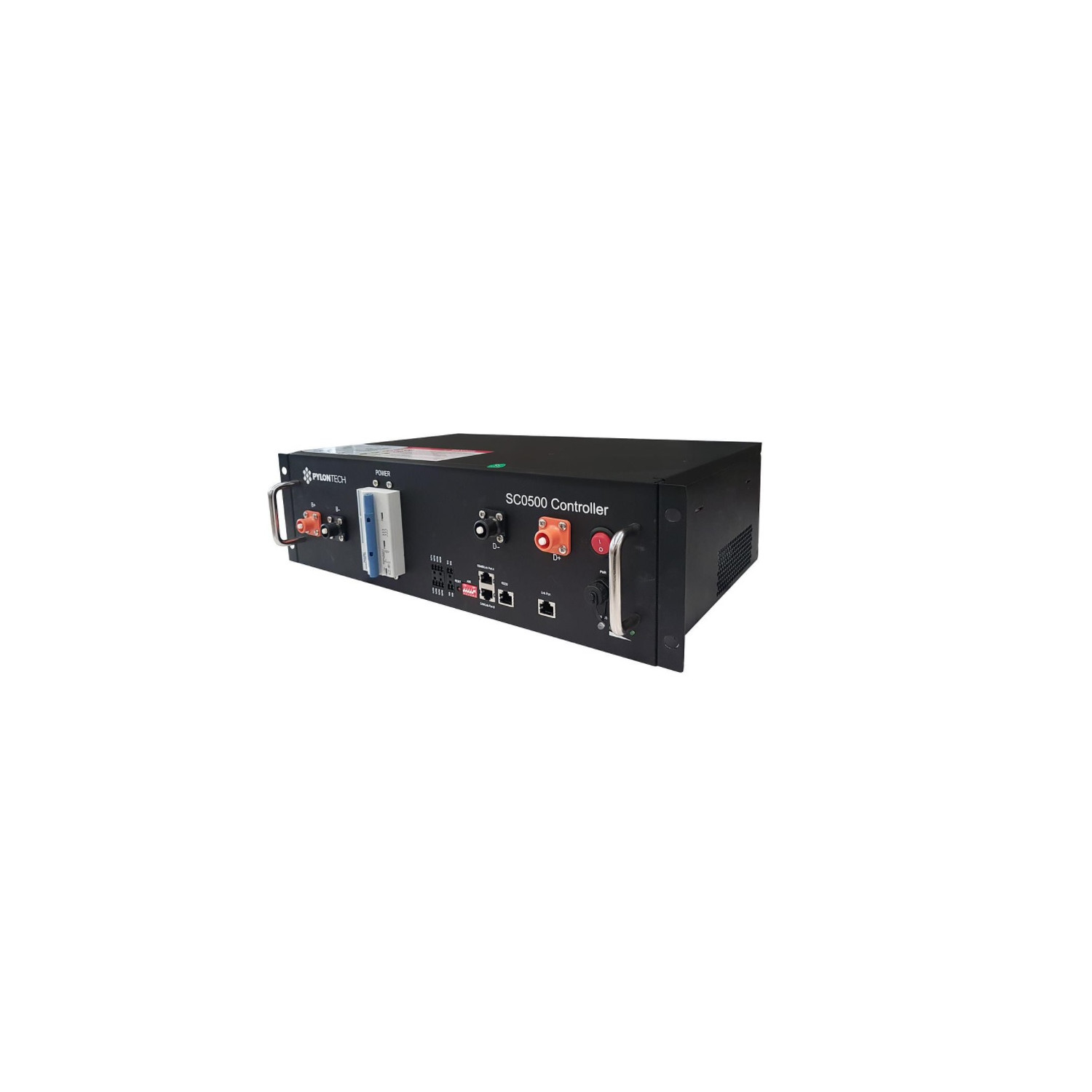

The Pylontech SC0500-100S High Voltage Battery BMS Module is a balancing system for Pylontech high voltage batteries. Each battery operates at 48V, therefore, to achieve High Voltage we must connect several batteries in series to increase their voltage and thus be able to work with high voltage inverters that generally require a minimum battery voltage of 60V to operate.

Up to 12 high voltage batteries can be connected in series per Pylontech BMS module. The smallest high voltage battery system that can be installed is 2 High Voltage Batteries and a BMS that will fit neatly into a U16 Battery Rack. If you wish to install more batteries you would need a larger rack.

Features of the Pylontech SC0500-100S High Voltage BMS Battery Management System

This BMS allows to control a minimum of 2 Pylontech H48050 48V High Voltage batteries in series and a maximum of 12 batteries. This offers nominal voltage ranges between 100 and 430V. For data communication, the Pylontech SC0500A BMS has a built-in port that communicates with all the batteries in the block connected to it. In case you need a system with more than 7 batteries, you will need a MBMS1000 Controller that can group several Powercube X1 systems together.

Pylontech SC0500-100S High Voltage BMS Battery Management System monitors the state of charge of the batteries and prevents them from discharging below the maximum depth of discharge indicated by the manufacturer, extending the life of the batteries. It also monitors voltage, current and temperature.
Up to a maximum of 7 batteries can be connected in series per external BMS module, if a higher capacity is desired, several racks can be connected for these batteries in particular "PowerCube X1" batteries in parallel.
