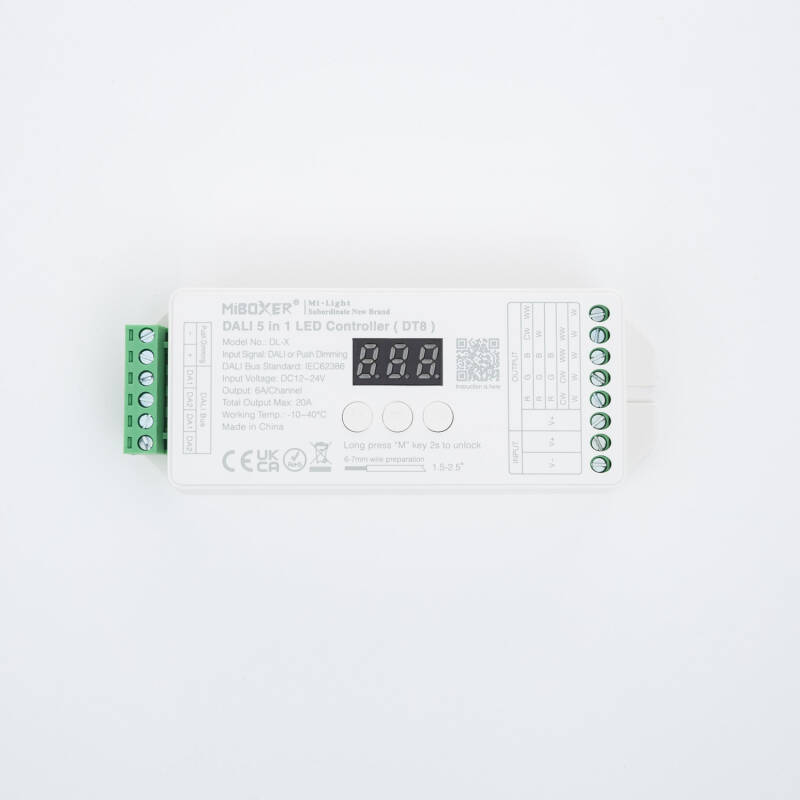

MiBoxer DL-X 12/24V DC 5 in 1 Monochrome/CCT/RGB/RGBW/RGBWW DALI LED Dimmer Controller

MiBoxer
Download technical datasheet

Ref. Ledkia99004

Ref. FabCMTRLDR-RGLDR-LD-dl-MBXR

EAN 138445044152643

Light Colour : Monocolor / CCT / RGB / RGBW / RGBWW

£25.99

VAT included

In Stock, delivery in 15-20 days

PRO CLUB badge

Are you a lighting professional or a company?

  • Great discounts off PVP
  • Extended Warranty
  • Exclusive Services

Buy now, pay later

Credit payment
  • 30 Day Returns

    You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.


    Custom-made products and cut-to-size strips are excluded.


    Full conditions here: After-sales service.

  • 24h Free Delivery

    If you place your order today before 2:30 pm, delivery within 24/48h (working days).


    Shipping is free on purchases over £ 49.99 (incl. VAT).


    Full conditions here: Delivery methods.

  • 100% secure payments

    payment method image 1

    payment method image 2

    At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.


    More information: Payment methods.

  • Up to 5 year warranty

    Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


    You will find the exact product warranty in the technical details.


    Full conditions here: After-sales service.

See alternatives

Dimensions

  • Height27 mm
  • Depth130 mm
  • Dimensions27 mm x 49 mm x 130 mm
  • Width49 mm
Scheme image

Downloads

  • pdf file

    Technical Data Sheet PDF

Certificates and Stamps

CertificateCertificate

Technical Specifications

  • Technical Information

    • Quality, safety and compliance certifications that the product has obtained, such as CE, RoHS or UL, which guarantees that it meets industry standards and current regulations.
      CertificatesRoHS, CE, EMC
    • Amount of electrical current that flows through the product, measured in amperes (A). It is key to ensuring safe and efficient operation.
      Current Intensity20 A
    • It indicates that the product allows parameters such as light intensity, speed or color temperature to be adjusted, providing greater flexibility and customization.
      DimmableYes
    • Composition of the product or its components, such as aluminum, steel, plastic or glass. The material influences the durability, design and thermal properties of the product.
      Fitting MaterialPC
    • Level of protection against the entry of solids and liquids, according to international regulations. The two numbers indicate protection against dust (first number) and against water (second number).
      IP RatingIP20
    • Characteristic that describes the tone of light emitted by the product, such as warm, neutral or cool. It is measured in degrees Kelvin (K) and affects the atmosphere and the proper use of space.
      Light ColourMonocolor / CCT / RGB / RGBW / RGBWW
    • Specification that describes the purpose or application of the product, such as lighting, air conditioning, or security, among others.
      LocationIndoor
    • Voltage level necessary for the product to function correctly. Ensures its compatibility with the electrical network or with specific power systems.
      Voltage Range24V DC, 12V DC
    • Internal temperature range in which the product can operate efficiently and safely. It is important to ensure its reliability in different conditions of use.
      Working Temperature-20 °C~+60 °C
  • Product Data

    • Manufacturer or company responsible for designing and producing the product. A recognized name ensures quality and support.
      BrandMiBoxer
    • Period during which the customer has the right to have their product repaired or replaced in the event of manufacturing defects or malfunctions under normal conditions of use. For more information, consult our After-sales page.
      Warranty3 years
  • Product Information

    • System used to control product characteristics, such as intensity regulation, color temperature or speed, adjusting its performance according to the user's needs.
      Type Of DimmingDALI
Illuminate your outdoor spaces

Description

The DL-X DALI 5-in-1 LED Controller (DT8) is an advanced unit designed to provide complete and versatile control over LED lighting systems using the DALI protocol. One of the main advantages of the DL-X LED Controller is its full compatibility with the DALI standard protocol IEC62386-102, 207, and 209. This ensures seamless integration with other DALI devices in a lighting system, facilitating efficient lighting management and control.

Features of the MiBoxer DL-X 12/24V DC 5 in 1 Monochrome/CCT/RGB/RGBW/RGBWW DALI LED Dimmer Controller

This controller offers exceptional versatility for LED strips in terms of output modes. It has five different modes, including monochrome, dual white CCT, RGB, RGBW, and RGB+CCT. Additionally, it features colour temperature control using the DT8 standard, xy coordinates, and support for RGBWAF. All these features provide access to a palette of 16 million colours to choose from. Moreover, you can adjust the brightness and colour temperature according to your preferences, allowing you to create custom and attractive environments.

This DL-X LED Controller is equipped with a digital display that shows address and group information, making configuration and quick device identification in your lighting system easier. It also offers additional control functions, such as brightness adjustment and the ability to turn the lighting on and off using physical buttons. You can select between logarithmic or linear dimming curves based on your light control preferences.

In terms of safety and durability, this controller features protection functions, including reverse polarity, short circuit, and overcurrent protection. This ensures the safety and longevity of your lighting system, providing you with peace of mind. The DL-X LED Controller also facilitates group control, allowing you to assign devices to specific groups and select or deselect groups according to your lighting needs. This simplifies the management of multiple devices in your lighting system, which is especially useful in environments such as hotels and homes.
