Power 20 W
Tension 220-240V AC
Luminosity 1500 lm
Diameter 330 mm
Power
20 W
Tension
220-240V AC
Luminosity
1500 lm
Diameter
330 mm
Number of LEDs
100
IP protection
IP44
dimensions
115 mm x Ø330 mm
Height
115 mm
IK protection
IK08
Selectable Opening Angle
120º
Material
PC
Dimmable
No

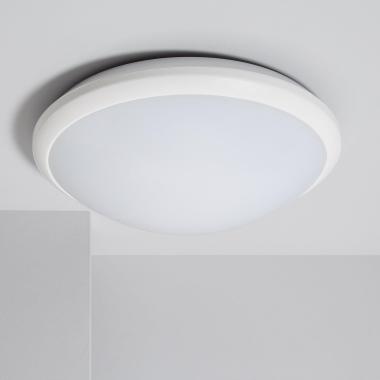

20W LED Surface Panel with a Radar Motion Sensor Ø350 mm
Ref. Ledkia: 62238
Colour Temperature :
Neutral White 4500K
50,82 €
23% VAT included
In Stock, delivery in 15-20 days
Are you a lighting professional or a company?
- Great discounts on RRP
- Extended warranty
- Exclusive services
Buy now, pay later
Credit payment30 Day Return
You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.
Custom-made products and cut-to-size strips are excluded.
Full conditions here: After-sales service.
5-7 days Free Delivery
If you place your order today before 18:00h, delivery within 5-7 days (working days).
Shipping is free on purchases over 49,99 € (incl. VAT).
Full conditions here: Delivery methods.
100% secure payments
At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.
More information: Payment methods.
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Full conditions here: After-sales service.
Dimensions
- Height115 mm
- Diameter330 mm
- dimensions115 mm x Ø330 mm
Downloads
Technical Data Sheet PDF
Certificates and Stamps
Energy Efficiency
Regulation 2023Technical Specifications
- Light colourNeutral White
- Colour Temperature4500K
- Energy efficiency 2023 (EU-2019/2015)F
- Replaceable driverNo
- Replaceable light sourceYes
- Power20 W
- Tension220-240V AC
- Frequency50-60 Hz
- electrical insulation classII
- DimmableNo
- Light SourceOSRAM
- Number of LEDs100
- Luminosity1500 lm
- Type of lensOpaal
- UseIndoor, Outdoor
- IP protectionIP44
- IK protectionIK08
- MaterialPC
- InstallationSurface
- dimensions115 mm x Ø330 mm
- Height115 mm
- Diameter330 mm
- DetectorRadar
- Detection Angle160 °
- Ambient Working Temperature-20 °C~+50 °C
- Lifespan40.000 hours
- CertificatesRoHS, CE, UKCA
- Warranty5 years
- Selectable Opening Angle120º
Description
This 20W LED Surface Panel with a Radar Motion Sensor Ø350 mm
Characteristics of this 20W LED Surface Panel with a Radar Motion Sensor Ø350 mm
As it incorporates a radar sensor, it automatically turn ON if it detects motion within its radius. After some time, if it detects that the area is empty, it will automatically turn OFF. We can adjust the workings of the light within the following parameters:
- Detection distance: from 1 to 8 metres.
- ON time: between 10(±3) seconds and 12 (±1) minutes.
- Detection speed: between 0.6m/s and 1.5m/s.
- Light Sensor: determines whether or not to turn on, depending on the current brightness of the area.
- Installation height: from 2 to 4 metres.

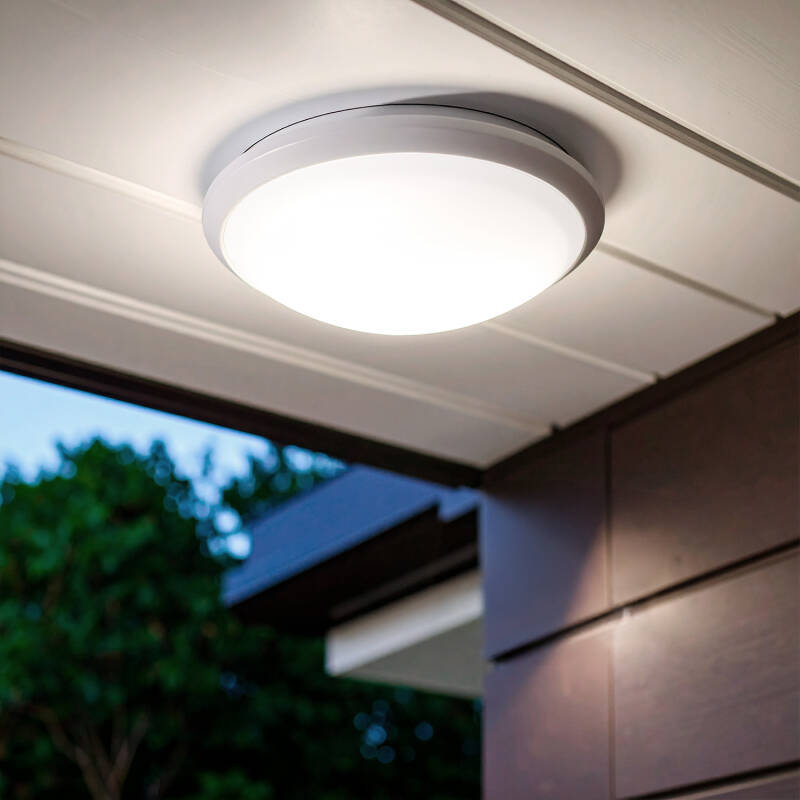

This 20W LED Surface Panel with a Radar Motion Sensor Ø350 mm is especially practical in passing areas like hallways, stairs, entrances or bathrooms, where it will work perfectly thanks to its IP44 Protection factor, which makes it resistant to humidity and solid particles like dust. Get it here at LEDKIA, our online lighting shop.
