Power 30 W
Tension 220-240V AC
Luminosity 3055 lm
Diameter 75 mm
Power
30 W
Tension
220-240V AC
Luminosity
3055 lm
Diameter
75 mm
Type of dimming
DALI
Glare Factor
UGR 17
IP protection
IP20
dimensions
220 mm x Ø75 mm
Height
220 mm
Luminous Efficiency
100 lm/W
Selectable Opening Angle
36º
Material
Aluminium
30W Fasano Cinema DALI Dimmable LED Spotlight for 3-Circuit Track in Black
Ref. Ledkia: 103574
Colour Temperature :
Warm White 2700K
Before 113,84 €
87,41 €
23% VAT included
In Stock, delivery in 15-20 days
Are you a lighting professional or a company?
- Great discounts on RRP
- Extended warranty
- Exclusive services
Buy now, pay later
Credit payment30 Day Return
You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.
Custom-made products and cut-to-size strips are excluded.
Full conditions here: After-sales service.
5-7 days Free Delivery
If you place your order today before 18:00h, delivery within 5-7 days (working days).
Shipping is free on purchases over 49,99 € (incl. VAT).
Full conditions here: Delivery methods.
100% secure payments
At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.
More information: Payment methods.
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Full conditions here: After-sales service.

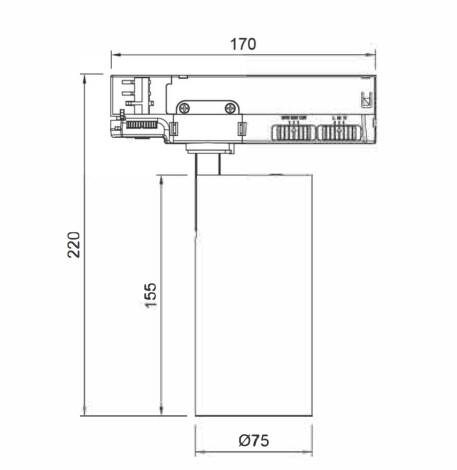

Dimensions
- Height220 mm
- Diameter75 mm
- dimensions220 mm x Ø75 mm
- Length170 mm
Downloads
Technical Data Sheet PDF
Certificates and Stamps
Energy Efficiency
Regulation 2023Technical Specifications
- Light colourWarm White
- Colour Temperature2700K
- Energy efficiency 2023 (EU-2019/2015)E
- Available ComponentsYes
- Replaceable driverYes
- Replaceable light sourceYes
- Power30 W
- Tension220-240V AC
- Frequency50-60 Hz
- DimmableYes
- Type of trackDALI Track
- Chromatic Reproduction Index90
- Luminosity3055 lm
- Luminous Efficiency100 lm/W
- directionalYes
- UseIndoor
- IP protectionIP20
- Glare FactorUGR 17
- No FlickerNo Flicker
- MaterialAluminium
- InstallationTrack
- dimensions220 mm x Ø75 mm
- Height220 mm
- Length170 mm
- Diameter75 mm
- Ambient Working Temperature-20 °C~+50 °C
- Lifespan50.000 hours
- CertificatesRoHS, CE
- Warranty3 years
- Type of dimmingDALI
- Selectable Opening Angle36º
Description
The 30W Fasano Cinema No Flicker DALI Dimmable LED Spotlight for Three Circuit Track in Black is the perfect solution to highlight a specific element in the space with a bright and high quality light, without sacrificing energy savings.
Features of the 30W Fasano Cinema No Flicker DALI Dimmable LED Spotlight for Three Circuit Track in Black
It integrates a highly efficient light source that allows DALI dimming of the luminous flux. It provides a brightness spread over an angle of 36º, which provides a high quality compact beam of light that reproduces colours without distorting them, perfect for complementing the general lighting of the space.
Designed for indoor spaces, it is manufactured in quality materials such as aluminium and can withstand temperature variations between -25ºC and 45ºC. Its installation is very simple, thanks to the quality of the components it integrates, it will satisfy the needs of the most demanding users. The installation is carried out on a three-phase rail that we will have previously placed. It has a modern finish in black and white.
The Fasano LED Track Spotlight is fully adjustable, allowing the light from the spotlight to be directed in any direction. This makes it possible to modify the lighting of the space depending on the elements that compose it. This is why this type of LED lighting is especially designed to focus attention on specific elements or areas.
This spotlight is dimmable with the DALI protocol (Digital Addressable Lighting Interface), a common interface that allows us to regulate the light intensity, program on/off, automate and generate timers. A DALI network consists of a DALI controller and one or more DALI Drivers. The DALI protocol allows grouping in up to 16 groups and includes 64 IP addresses. It is useful for saving energy, adapting to different scenarios.
Applications of the 30W Fasano Cinema No Flicker DALI Dimmable LED Spotlight for Three Circuit Track in Black
Its applications are mainly in spaces such as showrooms, premises with different atmospheres, halls, shopping centres, clothing shops, furniture shops and, in general, commercial spaces that are always being readapted according to the products to be displayed. Even so, thanks to its elegant design, it can be used in the design of attractive interior environments, and even in the home.
