Range Expert
  • 30 W
    Power 30 W
  • 220-240V AC
    Tension 220-240V AC
  • 3055 lm
    Luminosity 3055 lm
  • 75 mm
    Diameter 75 mm
Product of 30W Fasano Dimmable Cylinder LED Spotlight for 3-Circuit Track in White
    Product of 30W Fasano Dimmable Cylinder LED Spotlight for 3-Circuit Track in White
    Product of 30W Fasano Dimmable Cylinder LED Spotlight for 3-Circuit Track in White
1 / 2
  • 30 W

    Power

    30 W

  • 220-240V AC

    Tension

    220-240V AC

  • 3055 lm

    Luminosity

    3055 lm

  • 75 mm

    Diameter

    75 mm

  • TRIAC

    Type of dimming

    TRIAC

  • UGR 17

    Glare Factor

    UGR 17

  • IP20

    IP protection

    IP20

  • 220 mm x Ø75 mm

    dimensions

    220 mm x Ø75 mm

  • 220 mm

    Height

    220 mm

  • 100 lm/W

    Luminous Efficiency

    100 lm/W

  • 36º

    Selectable Opening Angle

    36º

  • Aluminium

    Material

    Aluminium

30W Fasano Dimmable Cylinder LED Spotlight for 3-Circuit Track in White

Download technical datasheet

Ref. Ledkia: 103321

Colour Temperature :

Warm White 2700K

Before 75,21 €

-23% (You save 17,28 € )

57,93 €

23% VAT included
Energetic efficiency

In stock, shipping from 16/01

PRO CLUB badge

Are you a lighting professional or a company?

  • Great discounts on RRP
  • Extended warranty
  • Exclusive services
Further information

Buy now, pay later

Credit payment

  • 30 Day Return

    You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.


    Custom-made products and cut-to-size strips are excluded.


    Full conditions here: After-sales service.

  • 5-7 days Free Delivery

    If you place your order today before 18:00h, delivery within 5-7 days (working days).


    Shipping is free on purchases over 49,99 € (incl. VAT).


    Full conditions here: Delivery methods.

  • 100% secure payments

    payment method image 1

    payment method image 2

    At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.


    More information: Payment methods.

  • Up to 5 year warranty

    Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


    You will find the exact product warranty in the technical details.


    Full conditions here: After-sales service.

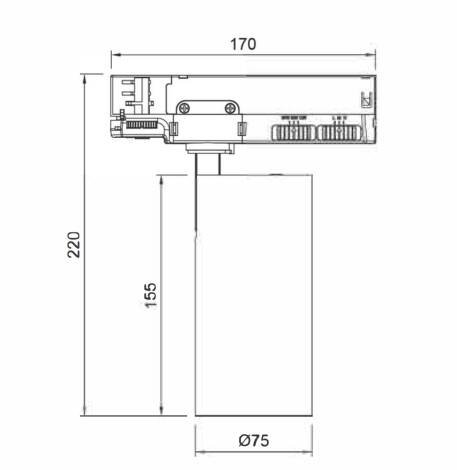

Dimensions

  • Height220 mm
  • Diameter75 mm
  • dimensions220 mm x Ø75 mm
  • Length170 mm

Downloads

  • pdf file

    Technical Data Sheet PDF

Certificates and Stamps

CertificateCertificate

Energy Efficiency

Efficiency energeticRegulation 2023

Technical Specifications

  • Light colourWarm White
  • Colour Temperature2700K
  • Energy efficiency 2023 (EU-2019/2015)F
  • Available ComponentsYes
  • Replaceable driverYes
  • Replaceable light sourceYes
  • Power30 W
  • Tension220-240V AC
  • Frequency50-60 Hz
  • DimmableYes
  • Type of trackThree Phase
  • Chromatic Reproduction Index90
  • Luminosity3055 lm
  • Luminous Efficiency100 lm/W
  • directionalYes
  • UseIndoor
  • IP protectionIP20
  • Glare FactorUGR 17
  • No FlickerNo Flicker
  • MaterialAluminium
  • InstallationTrack
  • dimensions220 mm x Ø75 mm
  • Height220 mm
  • Length170 mm
  • Diameter75 mm
  • Ambient Working Temperature-20 °C~+50 °C
  • Lifespan50.000 hours
  • CertificatesRoHS, CE
  • Warranty3 years
  • Type of dimmingTRIAC
  • Selectable Opening Angle36º

Description

The 30W Fasano No Flicker Dimmable Cylinder LED Spotlight for Three Circuit Track in White is the perfect solution to highlight a specific element in the space with a bright and high quality light, without renouncing to energy saving.

Features of the 30W Fasano No Flicker Dimmable Cylinder LED Spotlight for Three Circuit Track in White

It integrates a highly efficient light source that allows TRIAC dimming of the luminous flux. It provides a brightness spread over an angle of 36º, which provides a high quality compact beam of light that reproduces colours without distorting them, perfect for complementing the general lighting of the space.

Designed for indoor spaces, it is manufactured in quality materials such as aluminium and can withstand temperature variations between -25ºC and 45ºC. Its installation is very simple, thanks to the quality of the components it integrates, it will satisfy the needs of the most demanding users. The installation is carried out on a three-phase rail that we will have previously placed. It has a modern finish in black and white.

The Fasano LED Track Spotlight is fully adjustable, allowing the light from the spotlight to be directed in any direction. This makes it possible to modify the lighting of the space depending on the elements that compose it. This is why this type of LED lighting is especially designed to focus attention on specific elements or areas.

Applications of the 30W Fasano No Flicker Dimmable Cylinder LED Spotlight for Three Circuit Track in White

Its applications are mainly in spaces such as showrooms, premises with different atmospheres, halls, shopping centres, clothes shops, furniture shops and, in general, commercial spaces that are always being readapted depending on the products to be displayed. Even so, thanks to its elegant design, it can be used in the design of attractive interior environments, and even in the home.
