Tension 220-240V AC
MAX power 2000 W
IP protection IP20
Width 86 mm
Tension
220-240V AC
MAX power
2000 W
IP protection
IP20
Width
86 mm
Height
86 mm
Material
PC, Glass, Aluminium
Current intensity
10 A

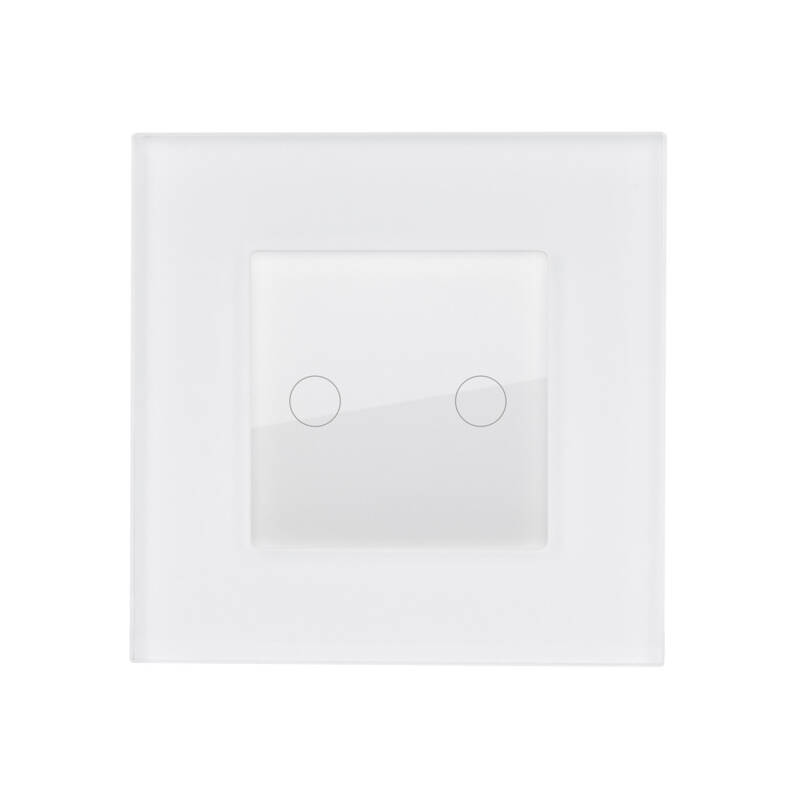

Tactile Double Switch with Modern Glass Frame
Ref. Ledkia: 77718
Colour :
White
- In Stock, delivery in 15-20 days
- In Stock, delivery in 15-20 days
Before 32,52 €
17,58 €
23% VAT includedIn Stock, delivery in 15-20 days
Are you a lighting professional or a company?
- Great discounts on RRP
- Extended warranty
- Exclusive services
Buy now, pay later
Credit payment30 Day Return
You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.
Custom-made products and cut-to-size strips are excluded.
Full conditions here: After-sales service.
5-7 days Free Delivery
If you place your order today before 18:00h, delivery within 5-7 days (working days).
Shipping is free on purchases over 49,99 € (incl. VAT).
Full conditions here: Delivery methods.
100% secure payments
At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.
More information: Payment methods.
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Full conditions here: After-sales service.
Dimensions
- Height86 mm
- Width86 mm
Downloads
Technical Data Sheet PDF
Certificates and Stamps
Technical Specifications
- ColourWhite
- MAX power2000 W
- Tension220-240V AC
- Nominal Voltage100-240V AC
- Frequency50-60 Hz
- Current intensity10 A
- UseIndoor
- IP protectionIP20
- MaterialPC, Glass, Aluminium
- InstallationRecessed
- Height86 mm
- Width86 mm
- CertificatesRoHS, CE, UKCA
- Warranty3 years
Description

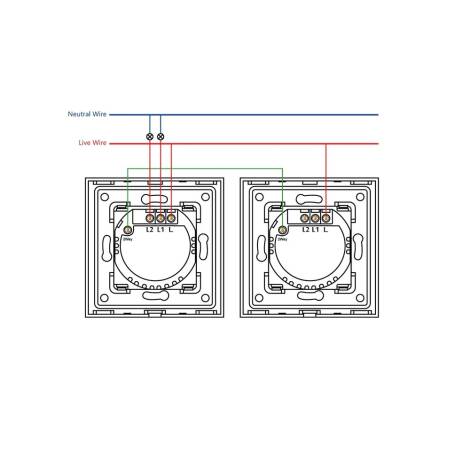

This Tactile Double Switch with Modern Glass Frame is the ideal solution to transform the switches in your home with a touch of modern design. These switches are made of high quality and resistant materials and are very durable. As they are capacitive switches, they will be activated only with a slight touch of the finger, no pressure is required. The switches can control the same light from two different switch locations. They are widely used in corridors where one switch is placed at the beginning and the other at the end, also used in bedrooms where one switch is placed at the entrance and the other next to the bed. While installing, the phase must pass through both switches before being connected to the lamp and both switches must be connected by a pair of wires.
These switches are standard sized, we recommend that they are installed in the glass frame for a more professional looking finish, which you can find in the accessories section . The glass frame includes the necessary elements to be able to be mounted on a standard universal box.
* It is recommended to include the LED anti-flicker adaptation module from the accessories section in LED electrical installations that use switches that require a minimum load, such as classic switches, touch switches, dimmers or pilot switches, among others.
* Product includes electrical part, glass trim, sticker and glass frame.
