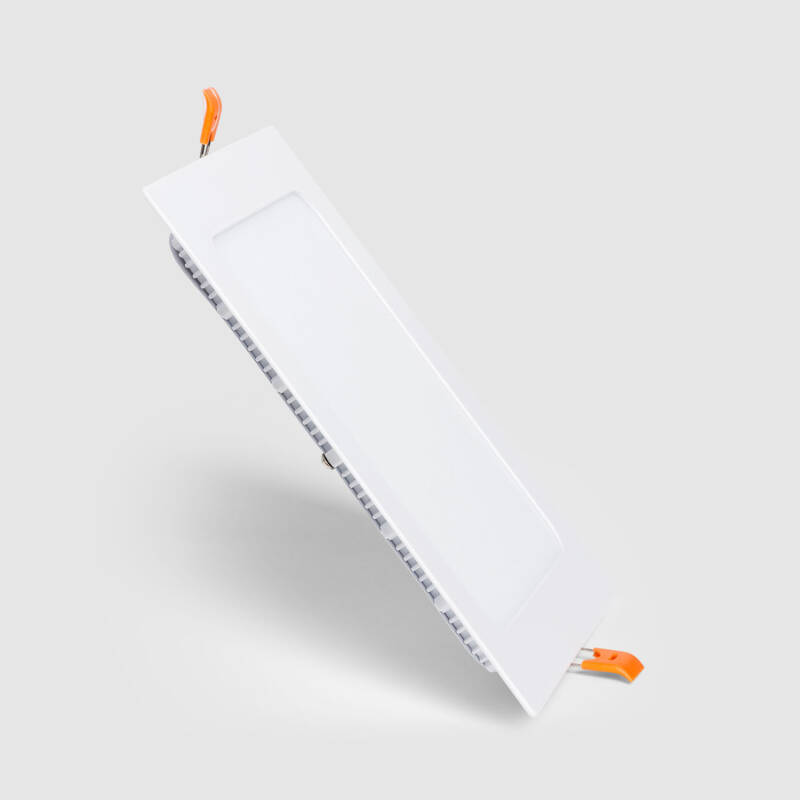

Square SuperSlim 12W LED Downlight 155x155mm Cut Out

Technical Specifications

• Technical Information

  • Colour Temperature

    Defines the tone of the light, from warm white to cool white, measured in Kelvin (K). It is key to creating cozy or functional environments according to your needs.
    3000K
  • Light Colour

    Characteristic that describes the tone of light emitted by the product, such as warm, neutral or cool. It is measured in degrees Kelvin (K) and affects the atmosphere and the proper use of space.
    Warm White
  • Wattage

    Indicates how much energy the light source consumes, measured in watts (W). In LED lighting, the power is much lower than in traditional sources, and is related to the light intensity (lumens).
    12 W
  • Voltage Range

    Voltage level necessary for the product to function correctly. Ensures its compatibility with the electrical network or with specific power systems.
    220-240V AC
  • Nominal Voltage

    The standard voltage for which a product is designed, which usually coincides with the network voltage or compatible systems, guaranteeing its correct operation.
    85-265V AC
  • Frequency

    Range of cycles per second at which the product operates, measured in hertz (Hz). A standard value ensures compatibility with local electrical networks.
    50-60 Hz
  • Colour Rendering Index

    It measures the ability of a light source to faithfully display the colors of objects compared to natural light. A high CRI (close to 100) ensures accurate color reproduction.
    80
  • Lumens

    Total amount of light emitted by the product, measured in lumens (lm). A high value ensures well-lit spaces.
    960 lm
  • IP Rating

    Level of protection against the entry of solids and liquids, according to international regulations. The two numbers indicate protection against dust (first number) and against water (second number).
    IP20
  • Installation

    Information on how the product should be placed or mounted, such as instructions on whether it requires professional installation or is easy to do by the end user.
    Recessed
  • Electrical Insulation Class

    Level of electrical protection of the product against shocks. Indicates whether it is suitable for different conditions of use, guaranteeing safety in the installation.
    II
  • Location

    Specification that describes the purpose or application of the product, such as lighting, air conditioning, or security, among others.
    Indoor
  • Ambient Working Temperature

    Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
    -30 °C~+50 °C
  • Hours

    Estimated time during which the product can operate efficiently without significant failure, usually measured in hours of use.
    40.000 hours
  • IK Protection

    Degree of protection offered by the product against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to shock and mechanical damage.
    IK05
  • Beam Angle

    It measures in degrees how light is dispersed from the source. A wide angle covers more area, while a narrow one is ideal for highlighting details.
    120º

• Product Data

  • Product Series

    Number or name that identifies the series or product line to which an item belongs, generally indicating the style, characteristics or version of a range.
    SuperSlim
  • Luminous Efficiency

    Relationship between the amount of light emitted (lumens) and the energy consumed (watts). A high value indicates a more efficient product, ideal for saving energy without compromising lighting.
    80 lm/W
  • Certificates

    Quality, safety and compliance certifications that the product has obtained, such as CE, RoHS or UL, which guarantees that it meets industry standards and current regulations.
    RoHS, CE, UKCA

• Product Information

  • Light Source

    Element or component that emits light in the product, such as LEDs, incandescent or fluorescent bulbs. In LED systems, the light source is highly efficient and long-lasting.
    OSRAM
  • Type Of Lens

    Type of lens used in the product, such as diffuse, high transmission or focused lens, which determines the direction and dispersion of light.
    Opaal

• Luminaire Information

  • Fitting Material

    Composition of the product or its components, such as aluminum, steel, plastic or glass. The material influences the durability, design and thermal properties of the product.
    Aluminium
  • Shape

    Physical configuration of the product, such as round, square, or elongated. It helps to integrate it into the aesthetics and design of the space where it will be installed.
    Square
