Power 60 W
Tension 220-240V AC
Luminosity 8100 lm
Diameter 485 mm
Power
60 W
Tension
220-240V AC
Luminosity
8100 lm
Diameter
485 mm
Number of LEDs
24
Type of dimming
Programmable
IP protection
IP66
dimensions
696 mm x Ø485 mm
Height
696 mm
IK protection
IK09
Luminous Efficiency
135 lm/W
Material
Aluminium
60W LED Street Light 5 Step Programmable LUMILEDS PHILIPS Xitanium Aventino
Ref. Ledkia: 70541
Colour Temperature :
Neutral White 4000K
Optic :
Asymmetrical 160ºx60º
In stock, estimated delivery 9 to 10 days
339,51 €
23% VAT included
In stock, estimated delivery 9 to 10 days
Are you a lighting professional or a company?
- Great discounts on RRP
- Extended warranty
- Exclusive services
Buy now, pay later
Credit payment30 Day Return
You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.
Custom-made products and cut-to-size strips are excluded.
Full conditions here: After-sales service.
5-7 days Free Delivery
If you place your order today before 18:00h, delivery within 5-7 days (working days).
Shipping is free on purchases over 49,99 € (incl. VAT).
Full conditions here: Delivery methods.
100% secure payments
At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.
More information: Payment methods.
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Full conditions here: After-sales service.
Dimensions
- Height696 mm
- Diameter485 mm
- dimensions696 mm x Ø485 mm
- Weight6 kg
Downloads
Technical Data Sheet PDF
Certificates and Stamps
Energy Efficiency
Regulation 2023Technical Specifications
- Light colourNeutral White
- Colour Temperature4000K
- Energy efficiency 2023 (EU-2019/2015)D
- OpticAsymmetrical 160ºx60º
- Replaceable light sourceYes
- Available ComponentsYes
- Replaceable driverYes
- Power60 W
- Tension220-240V AC
- Nominal Voltage100-240V AC
- Frequency50-60 Hz
- electrical insulation classI
- Light SourceLUMILEDS SMD5050
- Number of LEDs24
- Chromatic Reproduction Index80
- Luminosity8100 lm
- Luminous Efficiency135 lm/W
- LED performance145 lm/W
- Type of lensTransparent
- UseOutdoor
- IP protectionIP66
- IK protectionIK09
- ULORLess than 0.1%
- MaterialAluminium
- dimensions696 mm x Ø485 mm
- Height696 mm
- Diameter485 mm
- Weight6 kg
- Ambient Working Temperature-20 °C~+45 °C
- Lifespan100.000 hours
- CertificatesRoHS, CE, ENEC
- Warranty5 years
- Type of dimmingProgrammable
- Driver brandPHILIPS Xitanium
Description

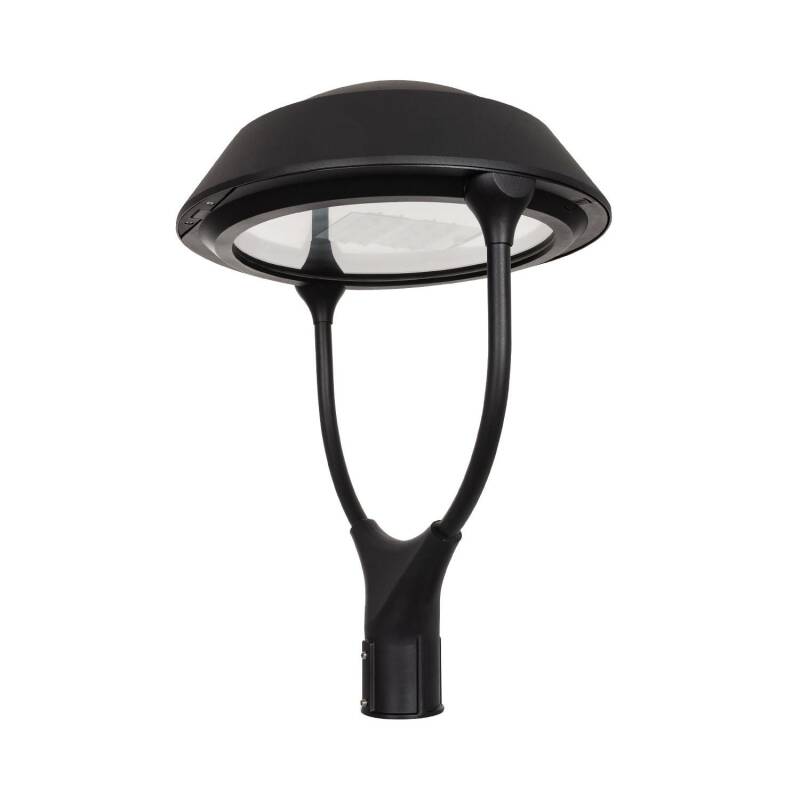

The 60W LED LUMILEDS Street Light Aventino Xitanium PHILIPS 5 Steps Dimmable is one of the latest generation of luminaires, offering instantaneous lighting thanks to its LED technology, as well as high power. It is the ideal replacement for the old discharge lamps, improving the quality of light and reducing notably its energy consumption.
Characteristics of the 60W LED LUMILEDS Street Light Aventino Xitanium PHILIPS 5 Steps Dimmable
Incorporated with the LUXEON 5050 2D light source. The light source is protected with tempered glass with an IP66 protection factor that makes it weatherproof. Lumileds technology guarantees high light output with extreme durability. Lumileds is a company that develops, manufactures and distributes lighting and holds more than 200 patents related to LED technology.
The body of the luminaire has been manufactured using the injection method to guarantee the optimum quality of the heatsink, in high quality aluminium. It has an interior hinge that improves its aesthetics without losing its versatility. An anti-corrosion treatment has been applied to it, both chemical and mechanical, which is resistant to UV rays and which further improves its aesthetic durability. In addition, for greater safety, the luminaire has a surge protector.
Characteristics of the XITANIUM 5 Steps Dimmable 5 Steps Driver
The LED driver converts the alternating current from the mains supply into direct current, which can be used to illuminate the LED chips. The Xitanium Driver that it incorporates is from the prestigious company PHILIPS, one of the most innovative and prestigious brands in the lighting industry. This driver has been specially designed for Public Lighting. This range of drivers offers a unique reliability and flexibility, providing a high performance and optimum efficiency of LEDs. The entire range of Xitanium drivers incorporates an IP65 housing that protects against humidity, vibrations and temperature, guaranteeing maximum durability. In addition, it includes both over-temperature and surge protection.
In the case of this driver it incorporates 5 steps, that are, 5 regulation phases. This type of technology is called Fixed Time Based Dimming (FTBD). The 5 regulation phases are assigned a power and a time duration. This way, when there is practically no traffic or passers-by, the amount of light emitted by the luminaire is reduced, adapting intelligently to the different night-time scenarios and considerably reducing electricity consumption.
Reducing energy consumption means significant savings for any urban centre. Enjoy the best road lighting with the different options of our Aventino Luminaire at your online shop Ledkia.
* The colour code of the luminaire is RAL 9005
* Fixing diameter: from Ø50 ~ Ø75mm.
