Voltage Range 220-240V AC
IP Rating IP20
Dimensions 80 mm x 80 mm x 47 mm
Width 80 mm

1 / 5

Voltage Range
220-240V AC
IP Rating
IP20
Dimensions
80 mm x 80 mm x 47 mm
Width
80 mm
Height
80 mm
Fitting Material
PCB

9,04 €

VAT included

In Stock, delivery in 15-20 days

Are you a lighting professional or a company?

Great discounts off PVP
Extended Warranty
Exclusive Services

See alternatives

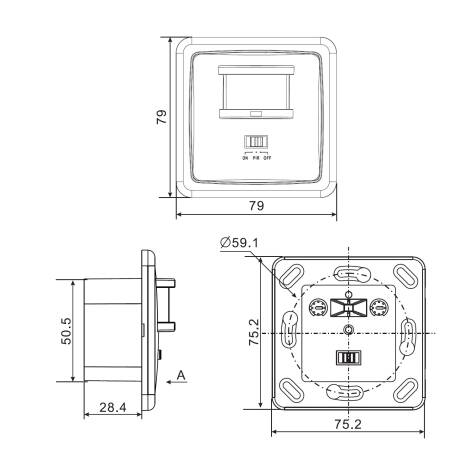

Dimensions

Height80 mm
Depth47 mm
Dimensions80 mm x 80 mm x 47 mm
Width80 mm

Downloads

Technical Data Sheet PDF

Certificates and Stamps

Technical Specifications

Technical Information
- Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
  Ambient Working Temperature-20 °C~+50 °C
- Quality, safety and compliance certifications that the product has obtained, such as CE, RoHS or UL, which guarantees that it meets industry standards and current regulations.
  CertificatesRoHS, CE, UKCA
- Defines the sensitivity area of a sensor in degrees. A larger angle will detect movements over a wider range, useful in security systems or automatic lights.
  Detection Range160 °
- Component that identifies changes in the environment, such as movement, light or sound, activating an automatic response, ideal for security or intelligent lighting systems.
  DetectorPIR
- Composition of the product or its components, such as aluminum, steel, plastic or glass. The material influences the durability, design and thermal properties of the product.
  Fitting MaterialPCB
- Range of cycles per second at which the product operates, measured in hertz (Hz). A standard value ensures compatibility with local electrical networks.
  Frequency50-60 Hz
- Information on how the product should be placed or mounted, such as instructions on whether it requires professional installation or is easy to do by the end user.
  InstallationRecessed
- Level of protection against the entry of solids and liquids, according to international regulations. The two numbers indicate protection against dust (first number) and against water (second number).
  IP RatingIP20
- Specification that describes the purpose or application of the product, such as lighting, air conditioning, or security, among others.
  LocationIndoor
- Description of the type of sensor included in the product, such as a motion, light, temperature or presence sensor, which can activate or modify the operation of the product according to specific conditions.
  Sensor TypePIR
- Voltage level necessary for the product to function correctly. Ensures its compatibility with the electrical network or with specific power systems.
  Voltage Range220-240V AC
Product Data
- Period during which the customer has the right to have their product repaired or replaced in the event of manufacturing defects or malfunctions under normal conditions of use. For more information, consult our After-sales page.
  Warranty3 years

Description

This wall mounted PIR Motion Detector has a 160° coverage angle and a 9 metre detection radius when at a height of 1 to 2 metres. Capable of detecting infrared emissions from any heat source without emitting any radiation.

The detector activates its output circuit when a heat source moves in front of the switch (at a rate of 0.6 to 1.5 m/s) and deactivates when the heat is no longer detected and some time has passed. Both the timer and light sensitivity can be adjusted.

Detection Angle: 160°

Detection Distance: 9 metre radius approx.

Minimum ON time: 10 seconds ±3 seconds.

Maximum ON time: 7 minutes ±1 minute.

Installation Height: 1 to 2 metres.

Detection Speed: 0.6-1.5 m/s.

Charges: 300W LED and 1200W Incandescent.

*The customer's visual perception of sizes, colours, textures, and so on, of our products, can be affected by factors such as ambient lighting, screen calibration, viewing angle or the device of each user. The customer must bear in mind that any returns made for reasons not related to the functionality of the product will be at the customer's expense.

160º PIR Motion Sensor Wall Mechanism
