Voltage Range 220-240V AC
Max Wattage 200 W
Cut Out Dimensions Ø19.5 mm
IP Rating IP20

1 / 5

Voltage Range
220-240V AC
Max Wattage
200 W
Cut Out Dimensions
Ø19.5 mm
IP Rating
IP20
Dimensions
56 mm x 34 mm x 25 mm
Width
34 mm
Height
56 mm
Fitting Material
PCB

8,99 €

VAT included

In Stock, delivery in 15-20 days

Are you a lighting professional or a company?

Great discounts off PVP
Extended Warranty
Exclusive Services

See alternatives

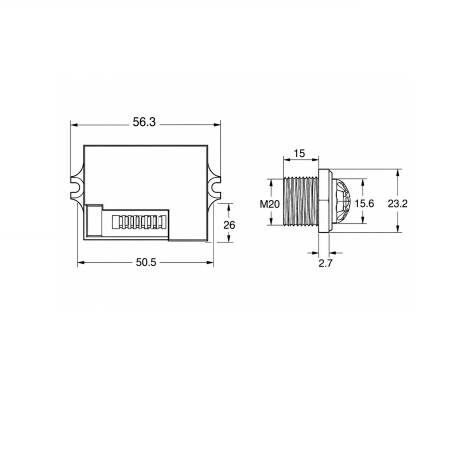

Dimensions

Cut Out DimensionsØ19.5 mm
Height56 mm
Depth25 mm
Dimensions56 mm x 34 mm x 25 mm
Width34 mm

Downloads

Technical Data Sheet PDF

Certificates and Stamps

Technical Specifications

Technical Information
- Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
  Ambient Working Temperature-20 °C~+50 °C
- Quality, safety and compliance certifications that the product has obtained, such as CE, RoHS or UL, which guarantees that it meets industry standards and current regulations.
  CertificatesRoHS, CE, UKCA
- Defines the sensitivity area of a sensor in degrees. A larger angle will detect movements over a wider range, useful in security systems or automatic lights.
  Detection Range120 °
- Component that identifies changes in the environment, such as movement, light or sound, activating an automatic response, ideal for security or intelligent lighting systems.
  DetectorPIR
- Composition of the product or its components, such as aluminum, steel, plastic or glass. The material influences the durability, design and thermal properties of the product.
  Fitting MaterialPCB
- Range of cycles per second at which the product operates, measured in hertz (Hz). A standard value ensures compatibility with local electrical networks.
  Frequency50-60 Hz
- Level of protection against the entry of solids and liquids, according to international regulations. The two numbers indicate protection against dust (first number) and against water (second number).
  IP RatingIP20
- Specification that describes the purpose or application of the product, such as lighting, air conditioning, or security, among others.
  LocationIndoor
- The maximum amount of power that the product can safely consume, indicated in watts. It is important to ensure proper installation and avoid overloading.
  Max Wattage200 W
- Description of the type of sensor included in the product, such as a motion, light, temperature or presence sensor, which can activate or modify the operation of the product according to specific conditions.
  Sensor TypePIR
- Voltage level necessary for the product to function correctly. Ensures its compatibility with the electrical network or with specific power systems.
  Voltage Range220-240V AC
Product Data
- Period during which the customer has the right to have their product repaired or replaced in the event of manufacturing defects or malfunctions under normal conditions of use. For more information, consult our After-sales page.
  Warranty3 years

Description

This PIR Motion Sensor can be either recessed in a ceiling or installed on a wall. It has a 120º coverage angle and a detection field of up to 6 metres (approximately) when at a height of 1.8~2.5m (on a wall) or 2.2~4m (recessed).

Capable of detecting invisible infrared emissions coming from any heat source without emitting any kind of radiation.

The detector activates its output circuit when a heat source moves in front of the sensor and deactivates when the movement is no longer detected, after an adjustable amount of time.

- It can be recessed or installed on a wall.

- Adjustable light sensitivity.

- Adjustable delay time: choose between 5 sec, 30 sec, 1 min, 3 min, 5 min and 8 min.

- Detection speed: 0.6~1.5 m/s.

Charges: 300W LED and 800W Incandescent.

*The customer's visual perception of sizes, colours, textures, and so on, of our products, can be affected by factors such as ambient lighting, screen calibration, viewing angle or the device of each user. The customer must bear in mind that any returns made for reasons not related to the functionality of the product will be at the customer's expense.

Recessed 120º PIR Motion Sensor
