  • 220-240V AC
    Tension 220-240V AC
  • 100 W
    MAX power 100 W
  • 75 mm
    Diameter 75 mm
  • IP20
    IP protection IP20
Product of Surface Mounted 360º PIR Round Motion Sensor
    Product of Surface Mounted 360º PIR Round Motion Sensor
    Product of Surface Mounted 360º PIR Round Motion Sensor
    Product of Surface Mounted 360º PIR Round Motion Sensor
    Product of Surface Mounted 360º PIR Round Motion Sensor
    Product of Surface Mounted 360º PIR Round Motion Sensor
1 / 5
  • 220-240V AC

    Tension

    220-240V AC

  • 100 W

    MAX power

    100 W

  • 75 mm

    Diameter

    75 mm

  • IP20

    IP protection

    IP20

  • 27 mm x Ø75 mm

    dimensions

    27 mm x Ø75 mm

  • 27 mm

    Height

    27 mm

  • PC

    Material

    PC

Surface Mounted 360º PIR Round Motion Sensor

Download technical datasheet

Ref. Ledkia: 100305

Colour :

White

  • In stock, shipping from 16/01

Before 9,55 €

-38% (You save 3,66 € )

5,89 €

23% VAT included

In stock, shipping from 16/01

PRO CLUB badge

Are you a lighting professional or a company?

  • Great discounts on RRP
  • Extended warranty
  • Exclusive services
Further information

Buy now, pay later

Credit payment

  • 30 Day Return

    You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.


    Custom-made products and cut-to-size strips are excluded.


    Full conditions here: After-sales service.

  • 5-7 days Free Delivery

    If you place your order today before 18:00h, delivery within 5-7 days (working days).


    Shipping is free on purchases over 49,99 € (incl. VAT).


    Full conditions here: Delivery methods.

  • 100% secure payments

    payment method image 1

    payment method image 2

    At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.


    More information: Payment methods.

  • Up to 5 year warranty

    Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


    You will find the exact product warranty in the technical details.


    Full conditions here: After-sales service.

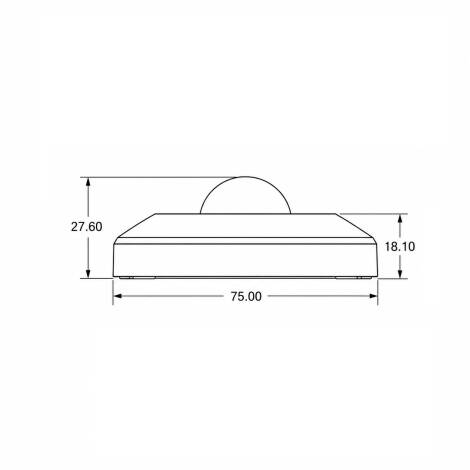

Dimensions

  • Height27 mm
  • Diameter75 mm
  • dimensions27 mm x Ø75 mm

Downloads

  • pdf file

    Technical Data Sheet PDF

Certificates and Stamps

CertificateCertificate

Technical Specifications

  • ColourWhite
  • MAX power100 W
  • Tension220-240V AC
  • Frequency50-60 Hz
  • UseIndoor
  • IP protectionIP20
  • MaterialPC
  • InstallationSurface
  • dimensions27 mm x Ø75 mm
  • Height27 mm
  • Diameter75 mm
  • DetectorPIR
  • Detection Angle360 °
  • Ambient Working Temperature-20 °C~+50 °C
  • CertificatesRoHS, CE, UKCA
  • Warranty3 years

Description

The Surface Mounted 360º PIR Round Motion Sensor  is a device that can detect movement in a range of 360 degrees with a maximum distance of 6 metres in a temperature of less than 24 degrees Celsius.

It has an adjustable time delay from 10 seconds to 7 minutes and operates on a 220-240V/AC power supply at 50/60Hz. It is capable of supporting a maximum load of 100W for incandescent and energy saving LED lamps and has an adjustable ambient light range of less than 10 to 2000 LUX. In addition, it has an IP20 protection rating, which means it is suitable for indoor use and is designed for surface mounting.
