MAX power 400 W
cut out dimensions Ø40 mm
Diameter 50 mm
IP protection IP20

1 / 4

MAX power
400 W
cut out dimensions
Ø40 mm
Diameter
50 mm
IP protection
IP20
dimensions
61 mm x Ø50 mm
Height
61 mm
Material
PC

Colour :

White

In stock, shipping from 16/01

10,16 €

23% VAT included

In stock, shipping from 16/01

Are you a lighting professional or a company?

Great discounts on RRP
Extended warranty
Exclusive services

Further information

Buy now, pay later

Credit payment

30 Day Return
You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.

Custom-made products and cut-to-size strips are excluded.

Full conditions here: After-sales service.
5-7 days Free Delivery
If you place your order today before 18:00h, delivery within 5-7 days (working days).

Shipping is free on purchases over 49,99 € (incl. VAT).

Full conditions here: Delivery methods.
100% secure payments
At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.

More information: Payment methods.
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.

You will find the exact product warranty in the technical details.

Full conditions here: After-sales service.

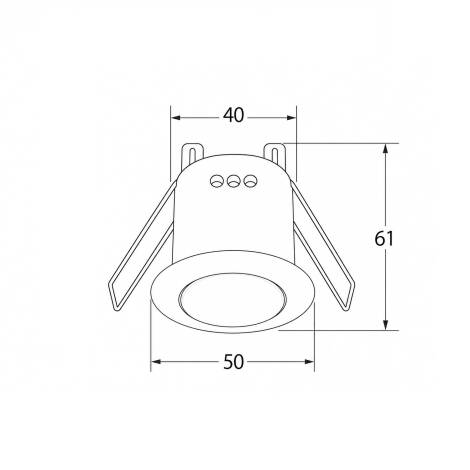

Dimensions

Height61 mm
Diameter50 mm
dimensions61 mm x Ø50 mm
cut out dimensionsØ40 mm

Downloads

Technical Data Sheet PDF

Certificates and Stamps

Technical Specifications

ColourWhite
MAX power400 W
Nominal Voltage220-240V AC
Frequency50-60 Hz
UseIndoor
IP protectionIP20
MaterialPC
InstallationRecessed
dimensions61 mm x Ø50 mm
cut out dimensionsØ40 mm
Height61 mm
Diameter50 mm
DetectorPIR
Detection Angle180 °
Ambient Working Temperature-20 °C~+50 °C
CertificatesRoHS, CE, UKCA
Warranty3 years
Cut out diameter40 mm

Description

The Recessed 360° Motion Sensor is an electronic device designed for indoor use in lighting applications. With a detection range of 360° and a maximum detection distance and a detection distance of 2 to 6 metres in a temperature below 24°C. This sensor is able to detect the presence of people or objects in a wide detection field.

It has an adjustable delay time from 10 seconds to 7 minutes and operates on a voltage of 220-240V/AC at 50/60Hz. It is capable of supporting a maximum load of 800W for incandescent lamps and 400W LED lamps and its sensitivity range is adjustable from less than 10 to 2000 LUX. In addition, it has an IP20 protection rating, which means it is suitable for indoor use and is designed to be flush mounted.
