Power 83 W
Tension 220-240V AC
Luminosity 9010 lm
Power Factor 0.97
Power
83 W
Tension
220-240V AC
Luminosity
9010 lm
Power Factor
0.97
IP protection
IP65
dimensions
79 mm x 217 mm x 493 mm
Width
217 mm
Height
79 mm
IK protection
IK08
Luminous Efficiency
115 lm/W
Material
PC, Aluminium
Chromatic Reproduction Index
70
PHILIPS

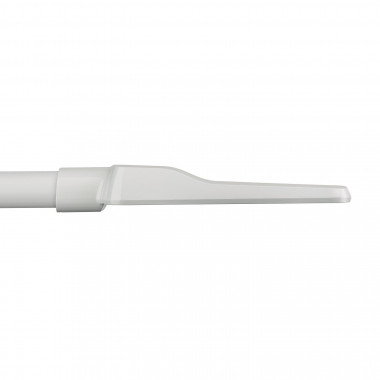

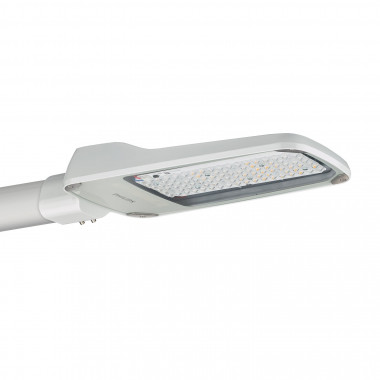

PHILIPS CoreLine Malaga 83W Luminaire LED110/740 I DM / II DM
Ref. Ledkia: 68343
Ref. Fab: 910925865344
EAN 13: 8718696998212
electrical insulation class :
I
Before 253,11 €
187,03 €
23% VAT included
In Stock, delivery in 15-20 days
Are you a lighting professional or a company?
- Great discounts on RRP
- Extended warranty
- Exclusive services
Buy now, pay later
Credit payment30 Day Return
You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.
Custom-made products and cut-to-size strips are excluded.
Full conditions here: After-sales service.
5-7 days Free Delivery
If you place your order today before 18:00h, delivery within 5-7 days (working days).
Shipping is free on purchases over 49,99 € (incl. VAT).
Full conditions here: Delivery methods.
100% secure payments
At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.
More information: Payment methods.
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Full conditions here: After-sales service.
Dimensions
- Height79 mm
- Width217 mm
- dimensions79 mm x 217 mm x 493 mm
- Length493 mm
- Weight3.3 kg
Downloads
Technical Data Sheet PDF
Certificates and Stamps
Energy Efficiency
Regulation 2023Technical Specifications
- electrical insulation classI
- Energy efficiency 2023 (EU-2019/2015)F
- Available ComponentsNo
- Replaceable driverNo
- Replaceable light sourceNo
- Power83 W
- Power Factor0.97
- Tension220-240V AC
- Frequency50-60 Hz
- DimmableNo
- Colour Temperature4000K
- Chromatic Reproduction Index70
- Luminosity9010 lm
- Luminous Efficiency115 lm/W
- UseOutdoor
- IP protectionIP65
- IK protectionIK08
- MaterialPC, Aluminium
- dimensions79 mm x 217 mm x 493 mm
- Height79 mm
- Width217 mm
- Length493 mm
- Weight3.3 kg
- Ambient Working Temperature-20 °C~+50 °C
- Lifespan30.000 hours
- Official WarrantyPHILIPS
- CertificatesRoHS, CE, ENEC
- BrandPHILIPS
- Warranty3 years
Description
The CoreLine Malaga LED Luminaire is manufactured by the prestigious Dutch brand PHILIPS recognized worldwide as a leading brand in LED lighting. Its road luminaires are of high quality and are designed to be installed on urban roads and in residential areas.
The CoreLinea Malaga family consists of two sizes and includes a Philips standardized design LED engine light source and an outdoor IP65 driver with Philips Xitanium fixed current output. It has been designed with the highest possible efficiency, so that it performs the same task as the old SON-T Sodium lamps, provides the right amount of light in the right place.
Features of the PHILIPS CoreLine Malaga 83W Luminaire LED110/740 I DM / II DM
Medium Beam Optics (DM) provides efficient distribution over the road or sidewalks. The combination produces interesting energy savings that significantly reduce operating costs. A realistic energy reduction of 50% is possible.
Since The LED light system of CoreLine Malaga LED lasts as long as the luminaire, only the savings in the replacements of the old SON-T sodium lamps pays off the investment made.
The ease of installation is obtained thanks to the extended cable gland function; you do not need to open the luminaire to connect the power cord. At the same time, the flat glass cover can be removed to access the driver for maintenance. Together, the functions and features of CoreLine Malaga LED means that there is no doubt when choosing it.
Benefits of the PHILIPS CoreLine Malaga 83W Luminaire LED110/740 I DM / II DM
• Reliable quality.
• Ready for pairing with software and lighting control applications.
• Easy recovery of investment.
• The driver can be maintained and replaced.
• IP65 and IK08 provide long-lasting operation.
• Equipped with a Service label, each luminaire can be uniquely identified.
Applications of the PHILIPS CoreLine Malaga 83W Luminaire LED110/740 I DM / II DM
• General exteriors; roads, streets and residential areas.
• Parking lots.
• Industrial areas.
• Public transport, such as bus or tram stops.
