Tension 220-240V AC
MAX power 360 W
Type of dimming 1-10 V
IP protection IP20
Tension
220-240V AC
MAX power
360 W
Type of dimming
1-10 V
IP protection
IP20
dimensions
52 mm x 52 mm x 25 mm
Width
52 mm
Height
52 mm
Material
PC
RF 1-10V Universal LED Dimmer/Push button
Ref. Ledkia: 63731
Colour :
White
- In stock, shipping from 16/01
24,89 €
23% VAT includedIn stock, shipping from 16/01
Are you a lighting professional or a company?
- Great discounts on RRP
- Extended warranty
- Exclusive services
Buy now, pay later
Credit payment30 Day Return
You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.
Custom-made products and cut-to-size strips are excluded.
Full conditions here: After-sales service.
5-7 days Free Delivery
If you place your order today before 18:00h, delivery within 5-7 days (working days).
Shipping is free on purchases over 49,99 € (incl. VAT).
Full conditions here: Delivery methods.
100% secure payments
At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.
More information: Payment methods.
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Full conditions here: After-sales service.

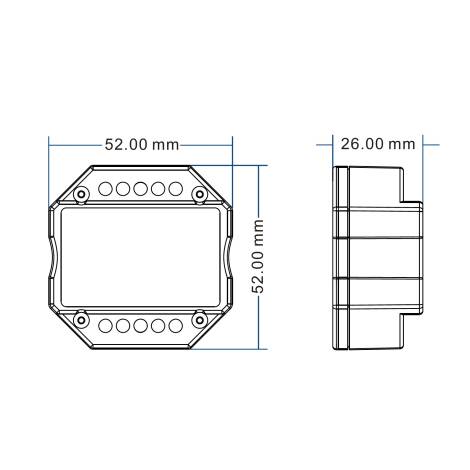

Dimensions
- Height52 mm
- Width52 mm
- dimensions52 mm x 52 mm x 25 mm
- Length25 mm
Downloads
Technical Data Sheet PDF
Certificates and Stamps
Technical Specifications
- ColourWhite
- MAX power360 W
- Tension220-240V AC
- Nominal Voltage100-240V AC
- Frequency50-60 Hz
- UseIndoor
- IP protectionIP20
- MaterialPC
- dimensions52 mm x 52 mm x 25 mm
- Height52 mm
- Width52 mm
- Length25 mm
- Ambient Working Temperature-20 °C~+50 °C
- CertificatesRoHS, CE, UKCA
- Warranty3 years
- Type of dimming1-10 V
Description
The RF 1-10V Universal LED Dimmer/Push button uses wireless technology in the 2.4 GHz band. It is specially developed for the control of 1-10V dimmable LED lamps without the need to install wiring.
Thanks to this dimmer, it is possible to manually change the luminosity of the luminaires, creating various environments for different occasions and needs.
This dimmer can have several control places, either wireless or classic buttons connected by cable.
Characteristics RF 1-10V Universal LED Dimmer/Push button
The RF 1-10V Universal LED Dimmer/Push button can be mounted anywhere thanks to its extra-flat design, behind the switch or inside the junction box, as it is only 25 mm thick.
The controller can be used with the RF Remote for 1-10V and Triac Controllers, the LED 1-10V and Triac Universal Dimmer Switch as well as classic pushbuttons.
Operation of the RF 1-10V Universal LED Dimmer/Push button
The use of the RF 1-10V Universal LED Dimmer is very simple. To turn the luminaires on and off, you only have to press the button briefly and, when you want to regulate the intensity of the luminaire, you have to keep the button pressed until you reach the desired intensity. The dimmer has a memory for storing the brightness at which the luminaire has been switched off.
