Range Advanced
  • 100 W
    Power 100 W
  • 220-240V AC
    Tension 220-240V AC
  • 17000 lm
    Luminosity 17000 lm
  • 255 mm
    Diameter 255 mm
Product of 100W LIFUD 0-10V Dimmable Industrial UFO HBD LED High Bay 170lm/W
    Product of 100W LIFUD 0-10V Dimmable Industrial UFO HBD LED High Bay 170lm/W
    Product of 100W LIFUD 0-10V Dimmable Industrial UFO HBD LED High Bay 170lm/W
    Product of 100W LIFUD 0-10V Dimmable Industrial UFO HBD LED High Bay 170lm/W
    Product of 100W LIFUD 0-10V Dimmable Industrial UFO HBD LED High Bay 170lm/W
    Product of 100W LIFUD 0-10V Dimmable Industrial UFO HBD LED High Bay 170lm/W
    Product of 100W LIFUD 0-10V Dimmable Industrial UFO HBD LED High Bay 170lm/W
1 / 6
  • 100 W

    Power

    100 W

  • 220-240V AC

    Tension

    220-240V AC

  • 17000 lm

    Luminosity

    17000 lm

  • 255 mm

    Diameter

    255 mm

  • 0-10 V

    Type of dimming

    0-10 V

  • 0.95

    Power Factor

    0.95

  • IP65

    IP protection

    IP65

  • No

    Battery operated

    No

  • 170 mm x Ø255 mm

    dimensions

    170 mm x Ø255 mm

  • 170 mm

    Height

    170 mm

  • IK08

    IK protection

    IK08

  • 160 lm/W

    Luminous Efficiency

    160 lm/W

100W LIFUD 0-10V Dimmable Industrial UFO HBD LED High Bay 170lm/W

Download technical datasheet

Ref. Ledkia: 110326

Colour Temperature :

Cool White 6500K

Optic :

90º

In stock, estimated delivery 9 to 10 days

100W PHILIPS Xitanium LEDNIX 1-10V Dimmable Industrial UFO HBM LED High Bay 200lm/W

Premium range

94,52 €

Before 53,87 €

-21% (You save 11,18 € )

42,69 €

23% VAT included
Energetic efficiency

In stock, estimated delivery 9 to 10 days

PRO CLUB badge

Are you a lighting professional or a company?

  • Great discounts on RRP
  • Extended warranty
  • Exclusive services
Further information

Buy now, pay later

Credit payment

  • 30 Day Return

    You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.


    Custom-made products and cut-to-size strips are excluded.


    Full conditions here: After-sales service.

  • 5-7 days Free Delivery

    If you place your order today before 18:00h, delivery within 5-7 days (working days).


    Shipping is free on purchases over 49,99 € (incl. VAT).


    Full conditions here: Delivery methods.

  • 100% secure payments

    payment method image 1

    payment method image 2

    At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.


    More information: Payment methods.

  • Up to 5 year warranty

    Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


    You will find the exact product warranty in the technical details.


    Full conditions here: After-sales service.

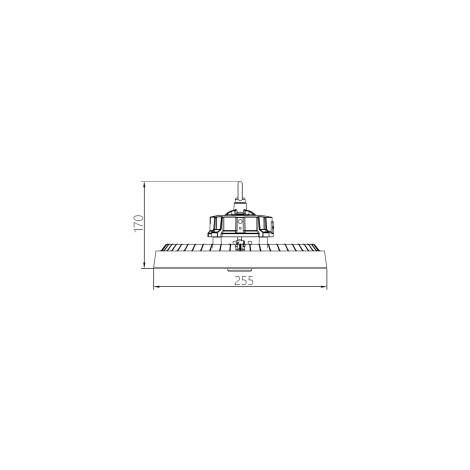

Dimensions

  • Height170 mm
  • Diameter255 mm
  • dimensions170 mm x Ø255 mm
  • Weight1.8 kg
Scheme image

Downloads

  • pdf file

    Technical Data Sheet PDF

Certificates and Stamps

CertificateCertificate

Energy Efficiency

Efficiency energeticRegulation 2023

Technical Specifications

  • Light colourCool White
  • Colour Temperature6500K
  • Energy efficiency 2023 (EU-2019/2015)D
  • Optic90º
  • Available ComponentsYes
  • Replaceable driverYes
  • Replaceable batteryYes
  • Replaceable light sourceYes
  • Power100 W
  • Power Factor0.95
  • Tension220-240V AC
  • Nominal Voltage100-240V AC
  • Frequency50-60 Hz
  • DimmableYes
  • Light SourceLUMILEDS SMD2835
  • Chromatic Reproduction Index70
  • Luminosity17000 lm
  • Luminous Efficiency160 lm/W
  • LED performance170 lm/W
  • UseOutdoor
  • IP protectionIP65
  • IK protectionIK08
  • No FlickerNo Flicker
  • MaterialAluminium
  • dimensions170 mm x Ø255 mm
  • Height170 mm
  • Diameter255 mm
  • Weight1.8 kg
  • Ambient Working Temperature-40 °C~+50 °C
  • Battery operatedNo
  • Type of driver0-10V dimmable
  • WiFiNo
  • Lifespan80.000 Horas
  • CertificatesCEE, RoHS, CE, UKCA, ERP, CB
  • Warranty5 years
  • Includes sensorNo
  • Contains batteryNo
  • Operates with Emergency LightingNo
  • Type of dimming0-10 V
  • Driver brandLIFUD

Description

The 100W Industrial UFO HBD High Bay 0-10V LIFUD Dimmable 170lm/W  is a high performance luminaire designed for industrial and outdoor environments requiring powerful illumination. Its 100W rated wattage ensures efficient energy use.

Features of the 100W Industrial UFO HBD High Bay 0-10V LIFUD Dimmable 170lm/W

This LED High Bay is extremely versatile and suitable for a variety of electrical installations, with a dimming capability of 0-10V that allows the light intensity to be adjusted according to the specific needs of the environment. In addition, it is equipped with high quality LUMILEDS SMD2835 light sources, offering a colour rendering index (CRI) of 70 to ensure accurate colour rendering. Its robust and durable design has an IP65 protection factor, making it suitable for outdoor use, protecting it against dust and moisture and ensuring its durability in industrial environments. This LED High Bay is equipped with a high quality LIFUD driver, which guarantees a constant and stable power supply.
