Power 100 W
Tension 220-240V AC
Luminosity 12000 lm
Diameter 280 mm
Power
100 W
Tension
220-240V AC
Luminosity
12000 lm
Diameter
280 mm
Power Factor
0.95
IP protection
IP54
Battery operated
No
dimensions
80 mm x Ø280 mm
Height
80 mm
IK protection
IK08
Luminous Efficiency
120 lm/W
Material
Aluminium
100W Solid S2 UFO LED High Bay 120lm/W
Ref. Ledkia: 108369
Colour Temperature :
Cool White 6000K
Before 32,52 €
18,59 €
23% VAT included
In Stock, delivery in 15-20 days
Are you a lighting professional or a company?
- Great discounts on RRP
- Extended warranty
- Exclusive services
Buy now, pay later
Credit payment30 Day Return
You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.
Custom-made products and cut-to-size strips are excluded.
Full conditions here: After-sales service.
5-7 days Free Delivery
If you place your order today before 18:00h, delivery within 5-7 days (working days).
Shipping is free on purchases over 49,99 € (incl. VAT).
Full conditions here: Delivery methods.
100% secure payments
At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.
More information: Payment methods.
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Full conditions here: After-sales service.
Scheme
The customer's visual perception of sizes, colours, textures, and so on, of our products, can be affected by factors such as ambient lighting, screen calibration, viewing angle or the device of each user. The customer must bear in mind that any returns made for reasons not related to the functionality of the product will be at the customer's expense.

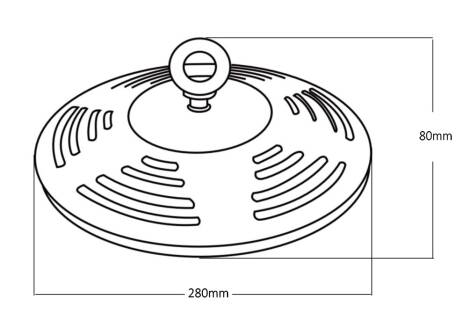

Dimensions
- Height80 mm
- Diameter280 mm
- dimensions80 mm x Ø280 mm
Downloads
Technical Data Sheet PDF
Certificates and Stamps
Energy Efficiency
Regulation 2023Technical Specifications
- Light colourCool White
- Colour Temperature6000K
- Energy efficiency 2023 (EU-2019/2015)E
- Replaceable light sourceYes
- Available ComponentsYes
- Replaceable driverNo
- Power100 W
- Power Factor0.95
- Tension220-240V AC
- Nominal Voltage190-260V AC
- Overvoltage Protection4 kV
- Frequency50-60 Hz
- DimmableNo
- Light SourceEPISTAR SMD2835
- Chromatic Reproduction Index70
- Luminosity12000 lm
- Luminous Efficiency120 lm/W
- UseOutdoor
- IP protectionIP54
- IK protectionIK08
- MaterialAluminium
- dimensions80 mm x Ø280 mm
- Height80 mm
- Diameter280 mm
- Working temperature-30 °C~+45 °C
- Ambient Working Temperature-20 °C~+50 °C
- Battery operatedNo
- WiFiNo
- Lifespan60.000 hours
- CertificatesRoHS, CE, UKCA
- Warranty3 years
- Includes sensorNo
- Operates with Emergency LightingNo
- Contains batteryNo
Description
The 100W Industrial UFO Solid S2 LED Highbay 120lm/W provides high luminous power in a very small space thanks to the advances and latest generation technologies that it incorporates.
Features of the 100W Industrial UFO Solid S2 LED Highbay 120lm/W
It has EPISTAR SMD 2835 LEDs with high efficiency and energy performance, which together with the rest of the high quality components that it mounts achieve a luminaire performance of up to 120 lm/W.
Its innovative aluminium-finished heatsink keeps the working temperature constant and optimally dissipates the heat generated by the conversion of electrical energy into light energy.
Applications of the 100W Industrial UFO Solid S2 LED Highbay 120lm/W
Its slim design allows this luminaire to be used in all types of industrial premises, both indoors and outdoors, even in the most unfavourable situations. It is used in all types of industrial or work areas, such as industrial buildings, workshops, factories, warehouses or car parks.
The LED industrial lighting is particularly interesting in the professional field due to the savings it provides in terms of consumption and maintenance of the luminaires. It also stands out for its immediate, flicker-free start-up, which allows activity to be restored instantly after, for example, a power cut.
What does Solid mean?
The Solid system is based on eliminating any perishable elements that could shorten the LED's lifespan. SSD stands for Solid State Drive. SSD technology makes it possible to increase the life of the LED so that the efficiency, quality and performance of the product is superior to other LED products on the market. By eliminating the DRIVER, one of the main components that cause the luminaire to cease to function and be useful, we have achieved a longer life for our LED luminaires.
*If you wish to install this model of luminaire in an industry with three-phase machinery, electronics or servomotors, we advise you to consult our sales department.
