Tension 12V DC, 24V DC
MAX power 24 W
IP protection IP20
dimensions 25.5 mm x 186 mm x 86 mm
Tension
12V DC, 24V DC
MAX power
24 W
IP protection
IP20
dimensions
25.5 mm x 186 mm x 86 mm
Width
186 mm
Height
25.5 mm
Material
PC
Current intensity
1 A
Follow Your Step Staircase Controller with PIR Sensor
Ref. Ledkia: 79105
Colour :
White
- In Stock, delivery in 15-20 days
102,66 €
23% VAT includedIn Stock, delivery in 15-20 days
Are you a lighting professional or a company?
- Great discounts on RRP
- Extended warranty
- Exclusive services
Buy now, pay later
Credit payment30 Day Return
You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.
Custom-made products and cut-to-size strips are excluded.
Full conditions here: After-sales service.
5-7 days Free Delivery
If you place your order today before 18:00h, delivery within 5-7 days (working days).
Shipping is free on purchases over 49,99 € (incl. VAT).
Full conditions here: Delivery methods.
100% secure payments
At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.
More information: Payment methods.
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Full conditions here: After-sales service.

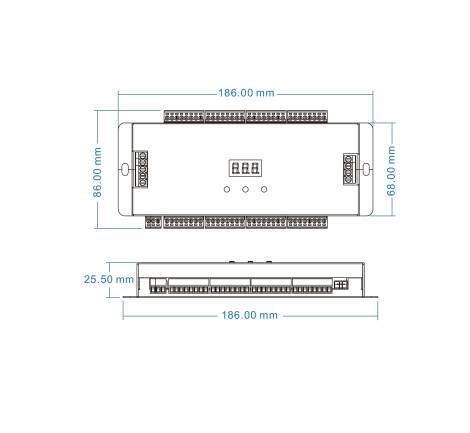

Dimensions
- Height25.5 mm
- Width186 mm
- dimensions25.5 mm x 186 mm x 86 mm
- Length86 mm
Downloads
Technical Data Sheet PDF
Certificates and Stamps
Technical Specifications
- ColourWhite
- MAX power24 W
- Tension12V DC, 24V DC
- Current intensity1 A
- UseIndoor
- IP protectionIP20
- MaterialPC
- dimensions25.5 mm x 186 mm x 86 mm
- Height25.5 mm
- Width186 mm
- Length86 mm
- DetectorPIR
- Ambient Working Temperature-20 °C~+50 °C
- CertificatesRoHS, CE, UKCA
- Warranty3 years
Description
Follow Your Step Stair Controller with PIR Sensor with 32 channels of constant voltage output to control 5-24V DC LED Strips..
Features of the Follow Your Step Stair Controller with PIR Sensor.
Incorporates an OLED display and 3 buttons to control the strips to your liking. Includes two PIR sensors, one at the top of the staircase and one at the bottom to detect and turn the lights on and off, a daylight sensor and two 5 metre extensions for the two built-in PIR sensors.
It has different light modes selectable from the display such as cascade mode, built-in multiple colour mode and a timer that, depending on the number we assign on the controller to the LED Strips, will last longer on.
The controller has a quick self-test function to check if the strips are working properly. The push button can also function as an induction input signal.
*Includes 1xController, 1xLight Sensor, 2xPIR Motion Sensor, 2xPIR Motion Sensor Cable 5 meters.
