Power 288 W
Tension 12V DC, 24V DC
Type of dimming Touch
IP protection IP20

1 / 6

Power
288 W
Tension
12V DC, 24V DC
Type of dimming
Touch
IP protection
IP20

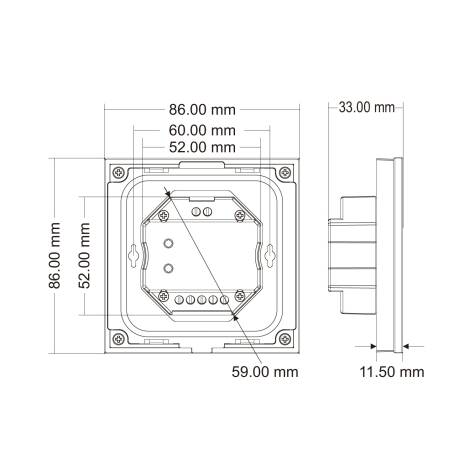

dimensions
86 mm x 86 mm x 33 mm
Width
86 mm
Height
86 mm
Connectivity
RF
Material
Glass, PC
Dimmable
Yes
Current intensity
12.5 A

Light colour :

RGB

In stock, shipping from 16/01

39,63 €

23% VAT included

In stock, shipping from 16/01

Are you a lighting professional or a company?

Great discounts on RRP
Extended warranty
Exclusive services

Further information

Buy now, pay later

Credit payment

30 Day Return
You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.

Custom-made products and cut-to-size strips are excluded.

Full conditions here: After-sales service.
5-7 days Free Delivery
If you place your order today before 18:00h, delivery within 5-7 days (working days).

Shipping is free on purchases over 49,99 € (incl. VAT).

Full conditions here: Delivery methods.
100% secure payments
At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.

More information: Payment methods.
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.

You will find the exact product warranty in the technical details.

Full conditions here: After-sales service.

Dimensions

Height86 mm
Width86 mm
dimensions86 mm x 86 mm x 33 mm
Length33 mm

Downloads

Technical Data Sheet PDF

Certificates and Stamps

Technical Specifications

Light colourRGB
Power288 W
Tension12V DC, 24V DC
Current intensity12.5 A
DimmableYes
UseIndoor
IP protectionIP20
MaterialPC, Glass
InstallationRecessed
dimensions86 mm x 86 mm x 33 mm
Height86 mm
Width86 mm
Length33 mm
ConnectivityRF
CertificatesRoHS, CE, UKCA
Warranty3 years
Type of dimmingTouch

Description

This Wall Mounted Tactile Dimmer for 12/24V DC RF LED Strips is the ideal solution to automate, streamline and control RGB LED strips at 12/24V DC, as it allows you to turn on, turn off and change the colour from the switch.

Features of the Wall Mounted Tactile Dimmer for 12/24V DC RF LED Strips

Wall Mounted Tactile Dimmer for 12/24V DC RF LED Strips can be mounted in the same universal box.

Via the front panel we can switch the luminaire on and off, select the colour, speed, mode and white colour as well as dim the brightness.

This Wall Mounted Tactile Dimmer for 12/24V DC RF LED Strips is a capacitive controller that will be operated only with the touch of your finger without the need to exert any pressure.

To pair your Touch Controller to an RF remote control you must switch the controller on and off and immediately press the On/Off key on the panel for 5s, then press the On/Off key (single zone remote control) or the zone key (multi-zone remote control) on the RF remote control within 5 seconds. LED indicator flashes rapidly 3 times
means that the pairing is successful.

To delete an RF remote from your Touch Controller you must turn the controller on and off and immediately press the On/Off key on the panel for 10s, for the matching RF remotes.

The LED indicator flashes rapidly 6 times meaning that all matching remotes have been deleted.
