Tension 12V DC, 24V DC
MAX power 72 W
Type of dimming Remote Control
IP protection IP20
Tension
12V DC, 24V DC
MAX power
72 W
Type of dimming
Remote Control
IP protection
IP20
Battery operated
No
dimensions
26 mm x 52 mm x 52 mm
Width
52 mm
Height
26 mm
Material
PC
Dimmable
Yes
Dimming Controller compatible with RF Remote & Push Button for 12/24V DC Monochrome/CCT/RGB/RGBW LED Strips
Ref. Ledkia: 111675
Light colour :
26,11 €
23% VAT includedPre-Order, estimated shipping from 05/12/2024
Are you a lighting professional or a company?
- Great discounts on RRP
- Extended warranty
- Exclusive services
Buy now, pay later
Credit payment30 Day Return
You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.
Custom-made products and cut-to-size strips are excluded.
Full conditions here: After-sales service.
5-7 days Free Delivery
If you place your order today before 18:00h, delivery within 5-7 days (working days).
Shipping is free on purchases over 49,99 € (incl. VAT).
Full conditions here: Delivery methods.
100% secure payments
At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.
More information: Payment methods.
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Full conditions here: After-sales service.

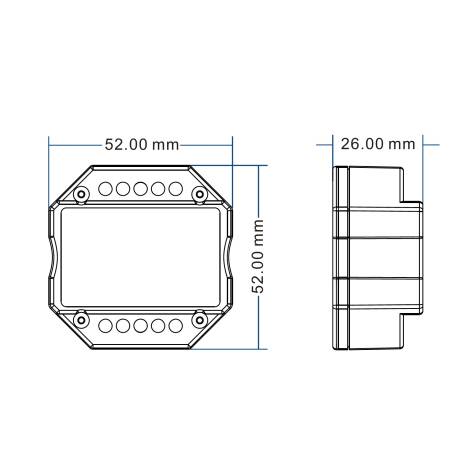

Dimensions
- Height26 mm
- Width52 mm
- dimensions26 mm x 52 mm x 52 mm
- Length52 mm
Downloads
Technical Data Sheet PDF
Certificates and Stamps
Technical Specifications
- MAX power72 W
- Tension12V DC, 24V DC
- Maximum Output Current3 A
- DimmableYes
- UseIndoor
- IP protectionIP20
- MaterialPC
- dimensions26 mm x 52 mm x 52 mm
- Height26 mm
- Width52 mm
- Length52 mm
- Ambient Working Temperature-20 °C~+50 °C
- Battery operatedNo
- WiFiNo
- CertificatesRoHS, CE, UKCA
- Warranty5 years
- Includes sensorNo
- Contains batteryNo
- Type of dimmingRemote Control
Description
Discover the latest generation Dimming Controller compatible with RF Remote & Push Button for 12/24V DC Monochrome/CCT/RGB/RGBW LED Strips, an advanced solution that uses 2.4 GHz wireless technology for efficient lighting management. This device is specially designed to control Monochrome, CCT, RGB or RGBW LED strips, allowing precise adjustment of brightness and colour via remote control, to create customised environments that suit every occasion or preference.
Features of the Dimming Controller compatible with RF Remote & Push Button for 12/24V DC Monochrome/CCT/RGB/RGBW LED Strips
Thanks to its innovative and compact design, with a profile of just 26 mm thickness, this regulator can be easily installed in any space, regardless of limitations. By using the RF Remote Control available in accessories, it is possible to synchronise multiple units at a distance of up to 30 metres in open areas, allowing simultaneous control of multiple lighting zones without distance restrictions. For indoor use, it is recommended to maintain a maximum distance of 15 metres between receivers to ensure optimal signal transmission. Additionally, the device features a built-in memory function, which automatically recalls and restores the last brightness setting used, providing convenience and time-saving by avoiding the need to readjust the settings every time the lights are turned on.
When combined with a push button, it is very simple to use. To turn the lights on and off, simply make short presses on the push button. To adjust the light intensity, press and hold the push button until the desired level is reached. The regulator has memory, so it stores the last selected light intensity even after the lights are turned off.Don't miss the opportunity to transform and enhance your space with modern, sophisticated and fully adaptable lighting tailored to your needs.
