Power 40 W
Tension 220-240V AC
Luminosity 6000 lm
Number of LEDs 24
Power
40 W
Tension
220-240V AC
Luminosity
6000 lm
Number of LEDs
24
Type of dimming
1-10 V
Power Factor
0.95
IP protection
IP65
dimensions
700 mm x 400 mm x 400 mm
Width
400 mm
Height
700 mm
IK protection
IK09
Luminous Efficiency
150 lm/W
40W LED Street Light 1-10V Dimmable LUMILEDS PHILIPS Xitanium NeoVila
Ref. Ledkia: 73862
Colour Temperature :
Neutral White 4000K
276,49 €
23% VAT included
In stock, estimated delivery 9 to 10 days
Are you a lighting professional or a company?
- Great discounts on RRP
- Extended warranty
- Exclusive services
Buy now, pay later
Credit payment30 Day Return
You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.
Custom-made products and cut-to-size strips are excluded.
Full conditions here: After-sales service.
5-7 days Free Delivery
If you place your order today before 18:00h, delivery within 5-7 days (working days).
Shipping is free on purchases over 49,99 € (incl. VAT).
Full conditions here: Delivery methods.
100% secure payments
At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.
More information: Payment methods.
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Full conditions here: After-sales service.

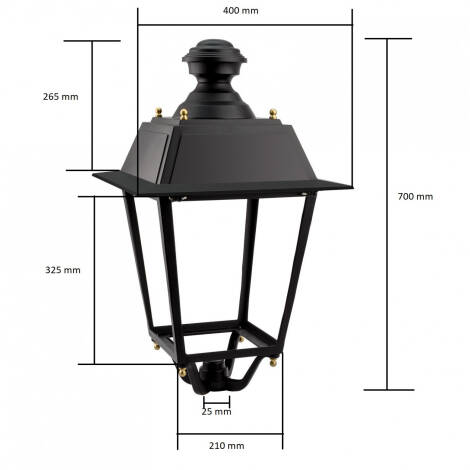

Dimensions
- Height700 mm
- Width400 mm
- dimensions700 mm x 400 mm x 400 mm
- Length400 mm
Downloads
Technical Data Sheet PDF
Certificates and Stamps
Energy Efficiency
Regulation 2023Technical Specifications
- Light colourNeutral White
- Colour Temperature4000K
- Energy efficiency 2023 (EU-2019/2015)D
- Available ComponentsYes
- Replaceable driverYes
- Replaceable light sourceYes
- Power40 W
- Power Factor0.95
- Tension220-240V AC
- Nominal Voltage90-305V AC
- Frequency50-60 Hz
- electrical insulation classI
- Light SourceLUMILEDS 5050
- Number of LEDs24
- Luminosity6000 lm
- Luminous Efficiency150 lm/W
- LED performance160 lm/W
- UseOutdoor
- IP protectionIP65
- IK protectionIK09
- ULORLess than 0.1%
- MaterialAluminium
- dimensions700 mm x 400 mm x 400 mm
- Height700 mm
- Width400 mm
- Length400 mm
- Ambient Working Temperature-20 °C~+45 °C
- Lifespan100.000 hours
- CertificatesRoHS, CE, UKCA
- OpticAsymmetrical 100ºx68º
- Warranty5 years
- Type of dimming1-10 V
- Driver brandPHILIPS Xitanium
Description
The 40W LED Street Light 1-10V Dimmable LUMILEDS PHILIPS Xitanium NeoVila is one of the latest generation luminaires, offering instant connection thanks to its LED technology, as well as great power. It is the ideal replacement for the old discharge lamps, improving the quality of light and significantly reducing energy consumption.
Characteristics of the 40W LED Street Light 1-10V Dimmable LUMILEDS PHILIPS Xitanium NeoVila
Incorporated in the LUMILEDS SMD-5050 light source. The light source is protected by tempered glass with an IP66 protection factor that makes it weatherproof. Lumileds technology guarantees high light output with extreme durability. Lumileds is a company dedicated to the development, manufacture and distribution of lighting and also holds more than 200 patents related to LED technology.
The body of the luminaire has been manufactured using the injection moulding method to guarantee the optimum quality of the heatsink, in high quality aluminium. It has an internal hinge that enhances its aesthetics without losing versatility. It has been given an anti-corrosive treatment, both chemical and mechanical, resistant to UV rays, which further improves its aesthetic durability. In addition, the luminaire is fitted with a surge protector for added safety.
Characteristics of the XITANIUM Dimmable 1-10V Driver
An LED driver is responsible for transforming the alternating current from the mains into direct current suitable for making the LED chips shine. The Xitanium Driver is from the prestigious company PHILIPS, one of the most innovative and prestigious brands in the lighting industry, this driver is specially designed for Street Lighting. This range of drivers offers unique reliability and flexibility, providing high performance and optimum efficiency of the LEDs. The entire Xitanium driver range incorporates an IP65 enclosure that protects against moisture, vibration and temperature, ensuring maximum durability. In addition, it includes both over-temperature and over-voltage protection. This version is capable of dimming the luminaire by means of 1-10V dimming.
* The colour code of the luminaire is RAL 9011.
* The fixing of the bracket to the column allows a diameter from Ø75 to Ø80mm. When the column bracket is removed, a Ø25 mm diameter hole remains compatible with the wall bracket.
