Power 20 W

Power
20 W
Tension
220-240V AC
Type of dimming
Push button, DALI
Power Factor
0.95
IP protection
IP20
dimensions
122 mm x 40 mm x 25 mm
Width
40 mm
Height
122 mm
Material
PC
Dimmable
Yes

Power :

20 W

20 W
In Stock, delivery in 15-20 days

Before 34,55 €

-1% (You save 0,51 € )

34,04 €

23% VAT included

In Stock, delivery in 15-20 days

Are you a lighting professional or a company?

Great discounts on RRP
Extended warranty
Exclusive services

Further information

Buy now, pay later

Credit payment

30 Day Return
You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.

Custom-made products and cut-to-size strips are excluded.

Full conditions here: After-sales service.
5-7 days Free Delivery
If you place your order today before 18:00h, delivery within 5-7 days (working days).

Shipping is free on purchases over 49,99 € (incl. VAT).

Full conditions here: Delivery methods.
100% secure payments
At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.

More information: Payment methods.
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.

You will find the exact product warranty in the technical details.

Full conditions here: After-sales service.

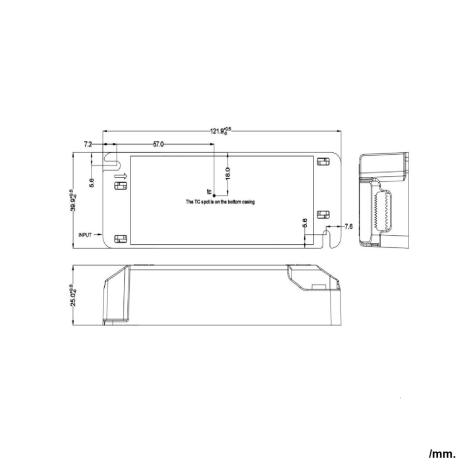

Scheme

The customer's visual perception of sizes, colours, textures, and so on, of our products, can be affected by factors such as ambient lighting, screen calibration, viewing angle or the device of each user. The customer must bear in mind that any returns made for reasons not related to the functionality of the product will be at the customer's expense.

Dimensions

Height122 mm
Width40 mm
dimensions122 mm x 40 mm x 25 mm
Length25 mm

Downloads

Technical Data Sheet PDF

Certificates and Stamps

Technical Specifications

Power20 W
Driver intensity250 mA-500 mA
Driver tension9 V-42 V
Power Factor0.95
Tension220-240V AC
Frequency50-60 Hz
electrical insulation classII
DimmableYes
UseIndoor
IP protectionIP20
No FlickerNo Flicker
MaterialPC
dimensions122 mm x 40 mm x 25 mm
Height122 mm
Width40 mm
Length25 mm
Ambient Working Temperature-20 °C~+45 °C
CertificatesRoHS, CE, UKCA
Warranty3 years
Type of dimmingPush button, DALI

Description

Driver of the prestigious company LIFUD specially designed for LED panels, LED downlights, LED panels and LED ceiling lights because it incorporates the Jack connector. An LED driver is responsible for transforming the alternating current from the mains into direct current suitable for making the LED chips shine. To find out if a driver is going to work with our luminaire, PCB or panel we should consult the voltage and output current of the driver.

Features of the 220-240V LIFUD Dimmable DALI No Flicker Driver 9-42V Output 250-500mA 2.25-21W LF-AAD020

This driver has a multi-voltage input. This means that it is able to withstand surges and dips in line voltage for a short period of time without damage. In addition, its output is also multi-voltage which means that it can deliver a constant voltage within a range allowing the same driver to be used for various applications with different current and voltage requirements. This driver allows us to control the luminaire via the DALI (Digital Addressable Lighting Interface) system. DALI is a common interface that allows us to dim, program on/off, automate and generate timers. A DALI network consists of a DALI controller and one or more DALI Drivers. This is useful for saving energy and adapting to different scenarios. Its power factor is very high, making it a very efficient driver.

However, these drivers feature the additional PUSH functionality, allowing you to control the light intensity directly from a conventional push button. This enables you to switch the light on and off, as well as dim it, without the need for a DALI master, making it easier to adapt the installation to a control system using conventional push buttons, without altering the existing infrastructure.
