TechBrey

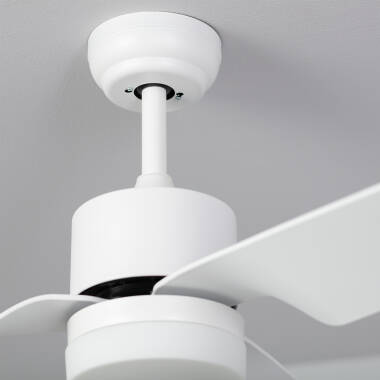

Minimal Silent Ceiling Fan with DC Motor in White 132cm
Ref. Ledkia: 117430
Ref. Fab: CMVT-TCH-MMLP-132ML
Configuration :
With light
-
Without light
-
With light
Controller :
Remote
WiFi :
No
Before 132,14 €
82,33 €
23% VAT included
In Stock, delivery in 15-20 days
Includes RF remote control
Are you a lighting professional or a company?
- Great discounts on RRP
- Extended warranty
- Exclusive services
Buy now, pay later
Credit payment30 Day Return
You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.
Custom-made products and cut-to-size strips are excluded.
Full conditions here: After-sales service.
5-7 days Free Delivery
If you place your order today before 18:00h, delivery within 5-7 days (working days).
Shipping is free on purchases over 49,99 € (incl. VAT).
Full conditions here: Delivery methods.
100% secure payments
At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.
More information: Payment methods.
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Full conditions here: After-sales service.
You may like
Scheme
The customer's visual perception of sizes, colours, textures, and so on, of our products, can be affected by factors such as ambient lighting, screen calibration, viewing angle or the device of each user. The customer must bear in mind that any returns made for reasons not related to the functionality of the product will be at the customer's expense.
Dimensions
- Height490 mm
- Diameter1320 mm
- dimensions490 mm x Ø1320 mm
- Weight6.6 kg
Downloads
Technical Data Sheet PDF
User_Manual_11977
Certificates and Stamps
Energy Efficiency
Regulation 2023Technical Specifications
- Power15 W
- Power Factor0.99
- Light colourCCT
- Luminosity1500 lm
- Luminous Efficiency100 lm/W
- Energy efficiency 2023 (EU-2019/2015)F
- WiFiNo
- ConnectivityRF
- Lifespan40.000 hours
- ConfigurationWith light
- ControllerRemote
- Fan power40 W
- Type of motorDC
- Number of speeds6
- Speed modes160 PRM, 140 PRM, 110 RPM, 80 RPM, 200 PRM, 180 PRM
- Number of blades3
- Summer/Winter modeYes
- Recommended areaLarge (more than 20 m²)
- Tension220-240V AC
- Frequency50-60 Hz
- electrical insulation classII
- DimmableYes
- UseIndoor
- IP protectionIP20
- MaterialSteel, ABS
- ColourWhite
- InstallationSurface
- dimensions490 mm x Ø1320 mm
- Height490 mm
- Diameter1320 mm
- Weight6.6 kg
- Ambient Working Temperature-20 °C~+50 °C
- IncludesRF remote control
- Remote controlYes
- Timer1/2/4/8 hours
- CertificatesRoHS, CE, UKCA
- BrandTECHBREY
- Sound levels35 dB, 29 dB, 27 dB, 22 dB, 45 dB, 40 dB
- Blade ColourWhite
- Warranty3 years
- Ceiling base diameter150 mm
- Type of dimmingRemote Control
Description
The Minimal Silent Ceiling Fan with DC Motor in White 132cm with 40W power, featuring the option to add a lighting source with LED technology and 15W CCT power. Presenting a classic and elegant appearance that makes it a decorative and functional element.
The fan incorporates a DC motor known for its lightness, durability, efficiency, and low energy consumption. Some advantages of a fan with a DC motor compared to one with an AC motor are:
- Extremely quiet fan and no wobbling. Thanks to its DC motor, the emitted sound is reduced by up to 50% compared to AC motors, making the fan perfect for rest, study, and work areas.
- Low consumption. DC motor fans consume up to 70% less energy compared to AC motors, resulting in savings on our home electricity bill.
- They are quicker to start, change speed, and stop. Additionally, it includes 6 speed modes compared to the 3 or 4 speeds of AC motors.
It has a remote control with 6 functions:
- On and off
- Selection of colour temperature (Warm-Neutral-Cool) (Models with Light)
- Light adjustment (Models with Light)
- 6 speeds
- Timer 1/2/4 hours
- Summer/Winter function
Through the Air Dual technology or Reverse System, the fan is equipped with 2 operating modes (summer/winter). With this system, the motor rotation direction and blade direction are reversed, dissipating hot air in summer and evenly distributing the heat from the heating system in winter, improving thermal sensation, optimising heating operation, and contributing to energy savings.
Models with light integrate a CCT LED panel, allowing us to change the colour temperature between 3 types of light (warm light, cool light, and neutral light) and create different atmospheres as needed.
To synchronise the driver with the remote, connect the fan to the power supply and press the ON/OFF button on the remote for 8 seconds.
The Silent Minimal PRO White 132cm DC Ceiling Fan is a perfect way to keep your home's rooms cool and illuminated without the need to install an air conditioner.
* The maximum distance of the Fan from the ceiling is 48 cm.
* This fan is capable of conditioning an area larger than 18 m².
What does CCT (Correlated Colour Temperature) mean?
When a product is marked as CCT, it means we can change the colour temperature. CCT is defined in Kelvin degrees, based on the colour perception of a white LED to the human eye, we can differentiate them into 3 types of colour; warm light, neutral light, and cool light, from 2700-3500K, 4000-4500K, and 5000-6500K respectively. CCT values do not indicate anything about the LED's colour rendering ability.
*Includes a spare long rod that allows you to extend your fan by 10cm
