Power 18 W
Tension 220-240V AC
Luminosity 1800 lm
Diameter 210 mm
Power
18 W
Tension
220-240V AC
Luminosity
1800 lm
Diameter
210 mm
Glare Factor
UGR 19
IP protection
IP20
dimensions
18 mm x Ø210 mm
Height
18 mm
IK protection
IK05
Luminous Efficiency
100 lm/W
Material
PC
Dimmable
No

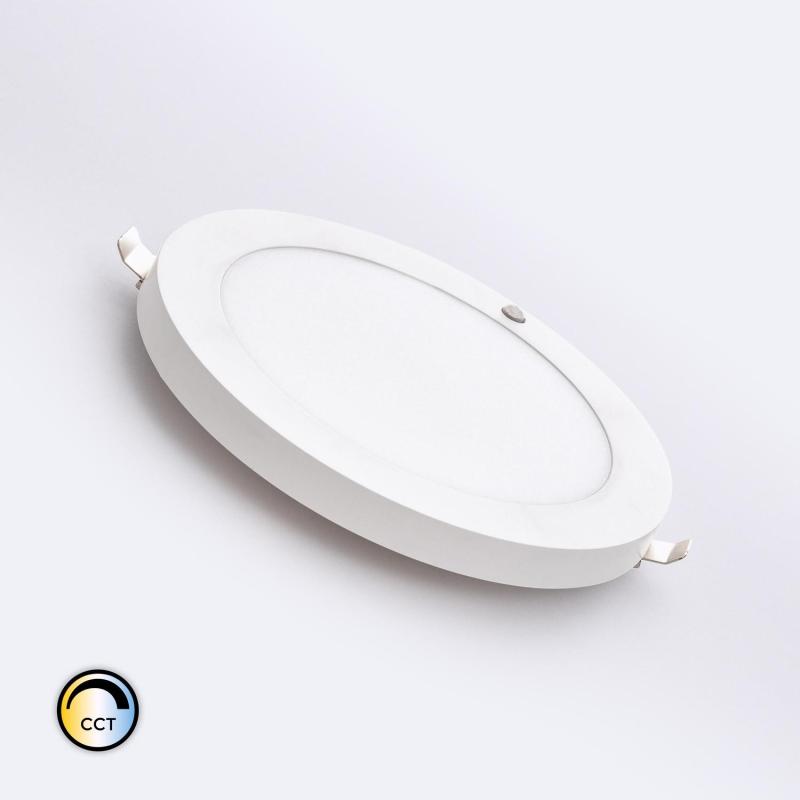

18W Round CCT Selectable LED Panel with PIR Sensor and Adjustable Cut Out Ø50-170 mm
Ref. Ledkia: 91692
Colour Temperature :
Selectable - Warm - Neutral - Cold
23,88 €
23% VAT included
Pre-Order, estimated shipping from 15/01/2025
Includes Driver
Are you a lighting professional or a company?
- Great discounts on RRP
- Extended warranty
- Exclusive services
Buy now, pay later
Credit payment30 Day Return
You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.
Custom-made products and cut-to-size strips are excluded.
Full conditions here: After-sales service.
5-7 days Free Delivery
If you place your order today before 18:00h, delivery within 5-7 days (working days).
Shipping is free on purchases over 49,99 € (incl. VAT).
Full conditions here: Delivery methods.
100% secure payments
At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.
More information: Payment methods.
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Full conditions here: After-sales service.
Dimensions
- Height18 mm
- Diameter210 mm
- dimensions18 mm x Ø210 mm
Downloads
Technical Data Sheet PDF
Certificates and Stamps
Energy Efficiency
Regulation 2023Technical Specifications
- Light colourSelectable - Warm - Neutral - Cold
- Energy efficiency 2023 (EU-2019/2015)F
- Replaceable driverNo
- Replaceable light sourceNo
- Power18 W
- Tension220-240V AC
- Frequency50-60 Hz
- electrical insulation classII
- DimmableNo
- Light SourceSMD2835
- Luminosity1800 lm
- Luminous Efficiency100 lm/W
- Type of lensOpaal
- UseIndoor
- IP protectionIP20
- IK protectionIK05
- Glare FactorUGR 19
- MaterialPC
- ColourWhite
- dimensions18 mm x Ø210 mm
- Height18 mm
- Diameter210 mm
- DetectorPIR
- Ambient Working Temperature-20 °C~+50 °C
- IncludesDriver
- Lifespan40.000 hours
- CertificatesRoHS, CE, UKCA
- Warranty3 years
Description
The 18W Round CCT Selectable LED Panel with PIR Sensor and Adjustable Cut Out Ø50-170 mm is widely used in all types of rooms and is extremely easy to install. It also allows us to adjust the fixing diameter from - to - cm in order to better adapt to the measurements where the luminaire is going to be installed.
Features of the 18W Round CCT Selectable LED Panel with PIR Sensor and Adjustable Cut Out Ø50-170 mm
Its SMD light source provides a light similar to that produced by a conventional ceiling light of about 160W, so the savings in electricity consumption that we obtain is quite large. In the manufacture of the 18W Round Dimmable CCT Selectable LED Panel with PIR Sensor and Adjustable Cut Out Ø50-170 mm have been used high strength plastic that makes it a robust and durable elements while suitable for saline environments or with a high level of humidity.
The 18W Round CCT Selectable LED Panel with PIR Sensor and Adjustable Cut Out Ø50-170 mm stands out because it allows you to adjust the colour temperature before installation and select the white that best suits your room. In addition, it integrates a system that facilitates its installation in ceilings with cut-outs, which makes it a perfect element to replace downlights with LED ceiling panels.
In addition, with its PIR Motion Sensor, the LED Plate will remain off until it detects movement within the range area and will turn on. All this allows to extend its useful life and provide greater savings in consumption.
Another advantage of this LED Panel is its installation with adjustabñe clips to adapt the luminaire to the measurements where it is going to be installed.
What does CCT (correlated colour temperature) mean?
When a product is marked as CCT it means that we can change the colour temperature. CCT is defined in Kelvin degrees, according to the colour perception of a white LED to the human eye, we can differentiate between 3 types of colour; a warm light, a neutral light and a cool light, from 2700-3500K, 4000-4500K and 5000-6500K respectively. The CCT values do not indicate anything about the colour rendering capability of the LED.
