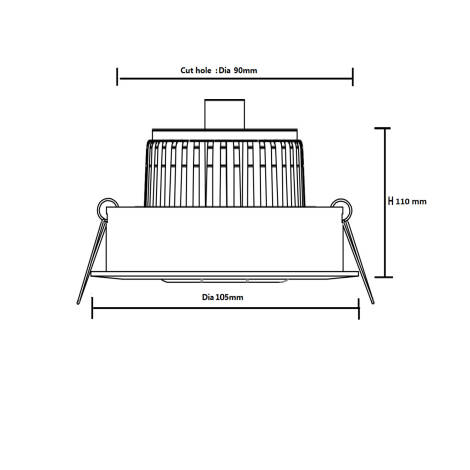

Round 15W LED Downlight Ø90mm Cut Out COB CRI90

Technical Specifications

• Technical Information

  • Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
    Ambient Working Temperature-20 °C~+40 °C
  • It measures in degrees how light is dispersed from the source. A wide angle covers more area, while a narrow one is ideal for highlighting details.
    Beam Angle45º
  • Quality, safety and compliance certifications that the product has obtained, such as CE, RoHS or UL, which guarantees that it meets industry standards and current regulations.
    CertificatesRoHS, CE, UKCA
  • It measures the ability of a light source to faithfully display the colors of objects compared to natural light. A high CRI (close to 100) ensures accurate color reproduction.
    Colour Rendering Index92
  • Defines the tone of the light, from warm white to cool white, measured in Kelvin (K). It is key to creating cozy or functional environments according to your needs.
    Colour Temperature4000K
  • It indicates that the product allows parameters such as light intensity, speed or color temperature to be adjusted, providing greater flexibility and customization.
    DimmableNo
  • Level of electrical current that the driver is capable of handling to power components, such as LEDs, ensuring safe and efficient operation.
    Driver Intensity350 mA
  • Voltage level that the driver uses to power the LEDs or electrical components of the product, guaranteeing their correct operation.
    Driver Tension36 V
  • Level of electrical protection of the product against shocks. Indicates whether it is suitable for different conditions of use, guaranteeing safety in the installation.
    Electrical Insulation ClassII
  • Composition of the product or its components, such as aluminum, steel, plastic or glass. The material influences the durability, design and thermal properties of the product.
    Fitting MaterialAluminium, PC
  • Range of cycles per second at which the product operates, measured in hertz (Hz). A standard value ensures compatibility with local electrical networks.
    Frequency50-60 Hz
  • It measures the level of visual discomfort caused by the emitted light. Low glare products offer more comfortable lighting suitable for long periods of use.
    Glare FactorUGR 19
  • Estimated time during which the product can operate efficiently without significant failure, usually measured in hours of use.
    Hours50.000 hours
  • Degree of protection offered by the product against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to shock and mechanical damage.
    IK ProtectionIK02
  • Information on how the product should be placed or mounted, such as instructions on whether it requires professional installation or is easy to do by the end user.
    InstallationRecessed
  • Level of protection against the entry of solids and liquids, according to international regulations. The two numbers indicate protection against dust (first number) and against water (second number).
    IP RatingIP20
  • Characteristic that describes the tone of light emitted by the product, such as warm, neutral or cool. It is measured in degrees Kelvin (K) and affects the atmosphere and the proper use of space.
    Light ColourNeutral White
  • Specification that describes the purpose or application of the product, such as lighting, air conditioning, or security, among others.
    LocationIndoor
  • Total amount of light emitted by the product, measured in lumens (lm). A high value ensures well-lit spaces.
    Lumens1400 lm
  • Relationship between the amount of light emitted (lumens) and the energy consumed (watts). A high value indicates a more efficient product, ideal for saving energy without compromising lighting.
    Luminous Efficiency92 lm/W
  • The standard voltage for which a product is designed, which usually coincides with the network voltage or compatible systems, guaranteeing its correct operation.
    Nominal Voltage180-265V AC
  • Indicates the electrical efficiency of the product by measuring the relationship between the useful power and that consumed. A value close to 1 represents more efficient consumption.
    Power Factor0.9
  • Physical configuration of the product, such as round, square, or elongated. It helps to integrate it into the aesthetics and design of the space where it will be installed.
    ShapeCircular
  • Voltage level necessary for the product to function correctly. Ensures its compatibility with the electrical network or with specific power systems.
    Voltage Range220-240V AC
  • Indicates how much energy the light source consumes, measured in watts (W). In LED lighting, the power is much lower than in traditional sources, and is related to the light intensity (lumens).
    Wattage15 W

• Product Information

  • Element or component that emits light in the product, such as LEDs, incandescent or fluorescent bulbs. In LED systems, the light source is highly efficient and long-lasting.
    Light SourceCOB
  • Indicates that the light source of the product, such as an LED bulb or similar, can be replaced when it runs out or needs replacement without affecting the overall operation of the product.
    Replaceable Light SourceYes

• Product Data

  • Period during which the customer has the right to have their product repaired or replaced in the event of manufacturing defects or malfunctions under normal conditions of use. For more information, consult our After-sales page.
    Warranty3 years
