Range Advanced
  • 9 W
    Power 9 W
  • 220-240V AC
    Tension 220-240V AC
  • 810 lm
    Luminosity 810 lm
  • Ø90 mm
    cut out dimensions Ø90 mm

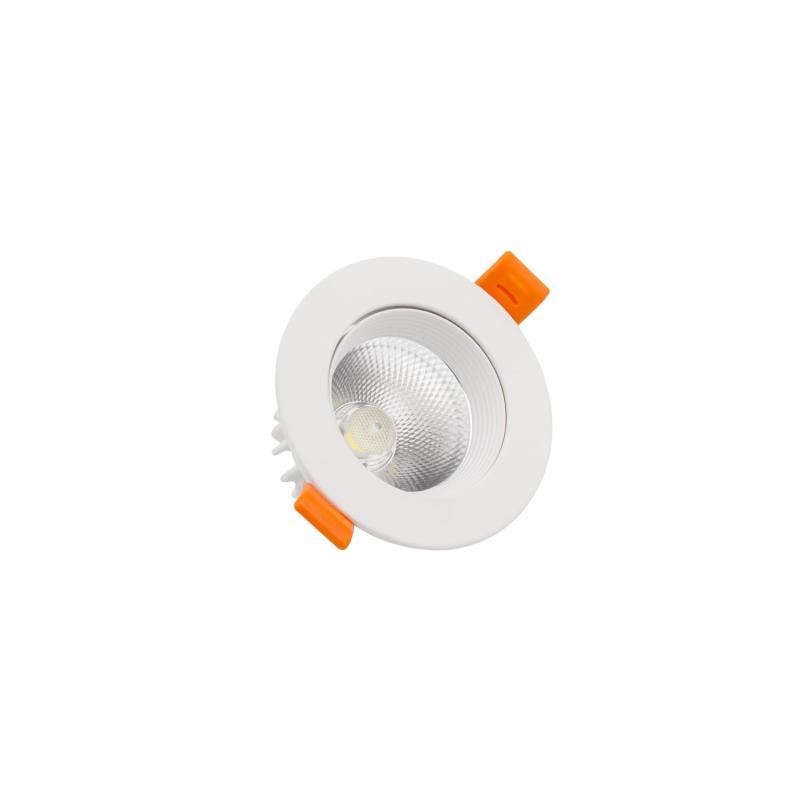

Product of 9W Round COB CRI90 LED Spotlight Ø 90 mm Cut-Out
    Product of 9W Round COB CRI90 LED Spotlight Ø 90 mm Cut-Out
    Product of 9W Round COB CRI90 LED Spotlight Ø 90 mm Cut-Out
    Product of 9W Round COB CRI90 LED Spotlight Ø 90 mm Cut-Out
    Product of 9W Round COB CRI90 LED Spotlight Ø 90 mm Cut-Out
1 / 4
  • 9 W

    Power

    9 W

  • 220-240V AC

    Tension

    220-240V AC

  • 810 lm

    Luminosity

    810 lm

  • Ø90 mm

    cut out dimensions

    Ø90 mm

  • 108 mm

    Diameter

    108 mm

  • UGR 19

    Glare Factor

    UGR 19

  • IP40

    IP protection

    IP40

  • 85 mm x Ø108 mm

    dimensions

    85 mm x Ø108 mm

  • 85 mm

    Height

    85 mm

  • 90 lm/W

    Luminous Efficiency

    90 lm/W

  • 60º

    Selectable Opening Angle

    60º

  • Aluminium

    Material

    Aluminium

9W Round COB CRI90 LED Spotlight Ø 90 mm Cut-Out

Download technical datasheet

Ref. Ledkia: 3415

Colour Temperature :

No Flicker Cool White 5000K

9,04 €

23% VAT included
Energetic efficiency

In stock, shipping from 16/01

Includes Driver

PRO CLUB badge

Are you a lighting professional or a company?

  • Great discounts on RRP
  • Extended warranty
  • Exclusive services
Further information

Buy now, pay later

Credit payment

  • 30 Day Return

    You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.


    Custom-made products and cut-to-size strips are excluded.


    Full conditions here: After-sales service.

  • 5-7 days Free Delivery

    If you place your order today before 18:00h, delivery within 5-7 days (working days).


    Shipping is free on purchases over 49,99 € (incl. VAT).


    Full conditions here: Delivery methods.

  • 100% secure payments

    payment method image 1

    payment method image 2

    At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.


    More information: Payment methods.

  • Up to 5 year warranty

    Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


    You will find the exact product warranty in the technical details.


    Full conditions here: After-sales service.

Dimensions

  • Height85 mm
  • Diameter108 mm
  • dimensions85 mm x Ø108 mm
  • cut out dimensionsØ90 mm

Downloads

  • pdf file

    Technical Data Sheet PDF

Certificates and Stamps

CertificateCertificate

Energy Efficiency

Efficiency energeticRegulation 2023

Technical Specifications

  • Light colourCool White
  • Colour Temperature5000K
  • Energy efficiency 2023 (EU-2019/2015)F
  • No FlickerNo Flicker
  • Replaceable driverYes
  • Replaceable light sourceYes
  • Power9 W
  • Tension220-240V AC
  • Nominal Voltage100-240V AC
  • Frequency50-60 Hz
  • electrical insulation classII
  • DimmableNo
  • Light SourceCOB
  • Chromatic Reproduction Index90
  • Luminosity810 lm
  • Luminous Efficiency90 lm/W
  • directionalYes
  • UseIndoor
  • IP protectionIP40
  • Glare FactorUGR 19
  • MaterialAluminium
  • InstallationRecessed
  • dimensions85 mm x Ø108 mm
  • cut out dimensionsØ90 mm
  • Height85 mm
  • Diameter108 mm
  • Working temperature-40 °C~+55 °C
  • Ambient Working Temperature-20 °C~+40 °C
  • IncludesDriver
  • Lifespan40.000 hours
  • CertificatesRoHS, CE, UKCA
  • Cut out diameter90 mm
  • Warranty3 years
  • Selectable Opening Angle60º

Description

This White Round 9W (UGR19) Flicker-free COB LED Downlight Ø 90mm Cut-Out is a very versatile product that allows us to point light in specific directions in function with our immediate needs, providing us with a considerable amount in energy savings.



Characteristics of this White Round Adjustable 9W (UGR19) Flicker-free COB LED Downlight Ø 90mm Cut-Out

Featuring an LED optic that gives off a total power of 9W, it provides us with a brightness of 720 lumens, which is enough to replace conventional downlights of up to 60W. The high quality light is emitted within a 60º angle and has an Ra>83 Colour Rendering Index.

Made from aluminium with an elegant finish, this Round 9W (UGR19) Flicker-free LED Downlight Ø 90mm Cut-Out has an estimated 30,000 hour working life. Its installation is very simple and only requires a Ø90mm cut-out on the surface in which it's installed.

By choosing LED lighting, we're not only choosing to save on our electrical bill, but we're also choosing technology that's more ecological, of a higher quality and lasts 10 times longer than traditional lighting systems.

All the characteristics of this LED lighting provide us with a great performance. Perfect for using in indoor areas where we don't need a large amount of light. It's mostly used in passing areas, like hallways, stairs, entrances, etc.
