Tension 24V DC
Cut every 8 cm
Type of dimming Controller SPI
IP protection IP20
Tension
24V DC
Cut every
8 cm
Type of dimming
Controller SPI
IP protection
IP20
Width
10 mm
Material
PCB
Dimmable
Yes

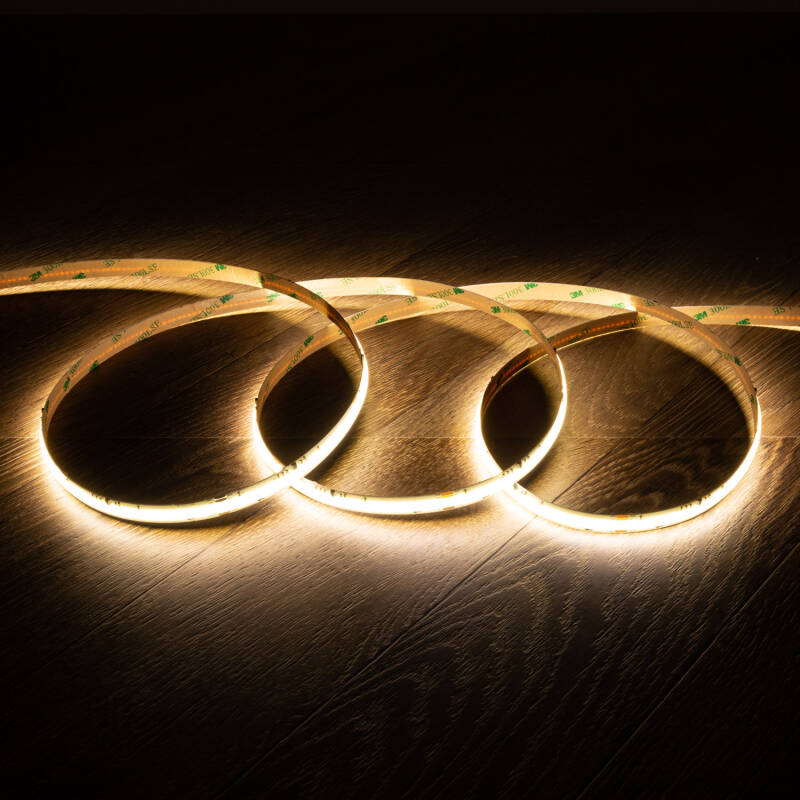

5m 24V DC Digital SPI COB LED Strip 360LED/m 10mm Wide Cut at Every 8cm IP20
Ref. Ledkia: 106568
Colour Temperature : Warm White 3000K
37,60 €
VAT included
In Stock, delivery in 15-20 days
Are you a lighting professional or a company?
- Great discounts off PVP
- Extended Warranty
- Exclusive Services
Buy now, pay later
Credit payment30 Day Return
You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.
Custom-made products and cut-to-size strips are excluded.
Full conditions here: After-sales service.
5-7 days Free Delivery
If you place your order today before 18:00h, delivery within 5-7 days (working days).
Shipping is free on purchases over 49,99 € (incl. VAT).
Full conditions here: Delivery methods.
100% secure payments
At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.
More information: Payment methods.
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Full conditions here: After-sales service.
See alternatives
Dimensions
- Width10 mm
Downloads
Technical Data Sheet PDF
Certificates and Stamps
Energy Efficiency
Regulation 2023Technical Specifications
- Colour Temperature3000K
- Light colourWarm White
- Energy efficiency 2023 (EU-2019/2015)G
- Replaceable driverNo
- Tension24V DC
- Light SourceWS2811
- IP protectionIP20
- Warranty3 years
- InstallationSurface
- Cut every8 cm
- Luminosity per Meter1100 lm/m
- UseIndoor
- Ambient Working Temperature-20 °C~+50 °C
- MaterialPCB
- DimmableYes
- Lifespan40.000 hours
- CertificatesRoHS, CE, UKCA
- Type of dimmingController SPI
- Width10 mm
- Number of LEDs per meter360 led/m
- Power per meter12 W/m
Description
The 5m 24V DC COB Digital SPI LED Strip 360LED/m 10mm Wide cut at Every 8cm is a LED strip is called Digital because we can control the intensity of the LEDs independently. Thanks to the Digital SPI control the strip is able to perform tracking effects, flash, light groups of LEDs independently, so it provides a more complete range of effects and intensity than conventional COB strips.
Features of the 5m 24V DC COB Digital SPI LED Strip 360LED/m 10mm Wide cut at Every 8cm
The 5m 24V DC COB Digital SPI LED Strip 360LED/m 10mm Wide cut at Every 8cm is 5 metres long and uses high brightness LED technology and a WS2811 control chip.
SPI Digital LED Strips are strips that have IC integrated circuits that allow them to control the colour and intensity of each group of LEDs separately via the SPI interface (Serial Peripheral Interface). With this particular strip it is possible to control groups of 3 LEDs independently.
To get the most out of the COB IC 24V DC 360 LED/m LED Strip we need a suitable digital controller.
Advantages of the 5m 24V DC COB Digital SPI LED Strip 360LED/m 10mm Wide cut at Every 8cm
Thanks to its extra flat design, this type of LED lighting achieves an ideal lighting effect for all kinds of projects.
The versatility of the 5m 24V DC COB Digital SPI LED Strip 360LED/m 10mm Wide cut at Every 8cm allows a wide variety of applications such as accent lighting, decorative lighting or marking of passageways. This type of strips are very useful in festive spaces such as concert halls, discotheques, façades, pergolas, corridors, showcases, shelves, etc.
*LED strips should never be switched on when they are coiled up, as this could cause overheating and burn out the LEDs.
*The customer's visual perception of sizes, colours, textures, and so on, of our products, can be affected by factors such as ambient lighting, screen calibration, viewing angle or the device of each user. The customer must bear in mind that any returns made for reasons not related to the functionality of the product will be at the customer's expense.
